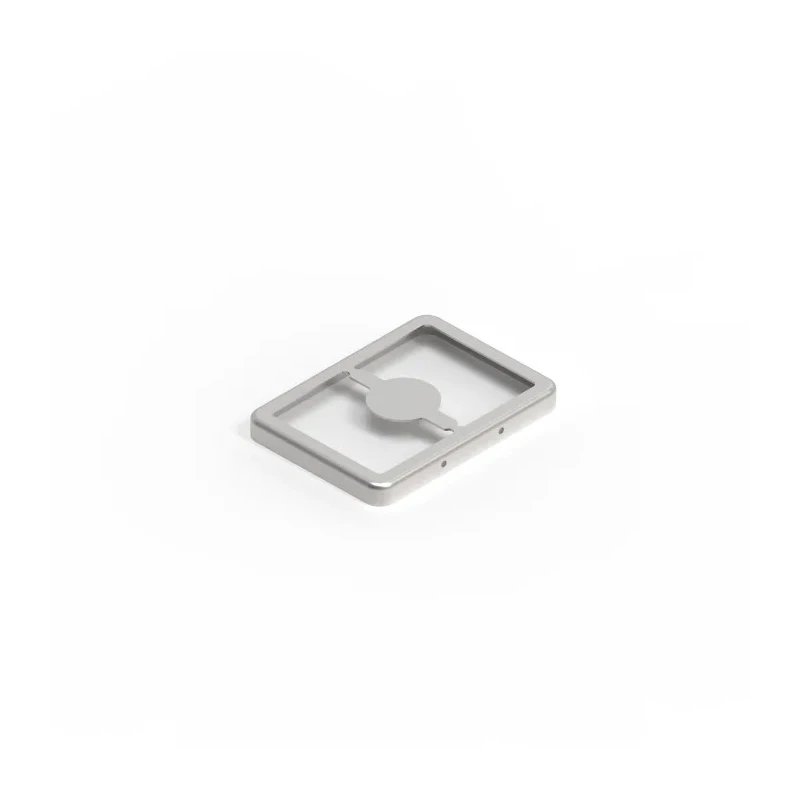

Wurth Elektronik Tin Plated Steel Shielding Cage Seamless Frame, 20.9 x 15.3 x 2 mm 36702092
Specifications
| Country of Origin | Israel |
|---|---|
| Brand | Wurth Elektronik |
| Material | Tin Plated Steel |
| Dimensions | 20.9 x 15.3 x 2 mm |
| Height | 2mm |
| Length | 20.9mm |
| Model | 36702092 |
| Width | 15.3mm |
| Series | WE-SCH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
Key Features
- Constructed from high-quality tin plated steel for durability and optimal shielding.
- Seamless frame design ensures no open slots and maximizes Faraday cage effectiveness.
- Designed to withstand harsh environments with an operating temperature range from -40°C to 125°C.
- Ideal for 5G, IoT, IO-Link wireless, and GNSS applications requiring robust EMI protection.
- Compact dimensions of 20.9 x 15.3 x 2 mm support efficient PCB mounting.
- Halogen-free material increases environmental safety.
Product Description
Wurth Elektronik model 36702092 is a tin plated steel shielding cage seamless frame measuring 20.9 x 15.3 x 2 mm, engineered for advanced electromagnetic interference (EMI) suppression in demanding electronic environments. Designed with seamless corners and fully sealed construction, this frame provides an exceptional Faraday cage effect to protect sensitive circuitry.
Constructed from tin plated steel, this shielding cage offers superior durability and consistent EMI shielding. The seamless frame eliminates open slots, maximizing protection and preventing signal leakage. Supports applications such as 5G, IoT, IO-Link wireless, GNSS receivers, and other wireless electronics requiring advanced EMI shielding.
Dimensions of 20.9 x 15.3 x 2 mm make it suitable for compact and high-density PCB layouts. Wide operating temperature range from -40°C to 125°C ensures reliability in both extreme cold and heat. Halogen-free composition enhances safety and environmental compliance in industrial, laboratory, and commercial settings.
Series: WE-SCH.
This shielding cage is especially relevant in industrial, laboratory, and commercial electronics requiring robust protection from electromagnetic interference. Its seamless design is favored in manufacturing, telecommunications, and advanced IoT systems. The cage's sturdy tin plated steel construction ensures longevity and performance.
Typical industrial use cases include wireless communication infrastructure, instrumentation, automotive electronics, and advanced sensor modules. Suitable for projects where seamless enclosure integrity and environmental safety are key.
Explore more high-performance shielding solutions from Wurth Elektronik and browse Shielding Sheets within Electronics & Electricals at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions of this model are 20.9 mm in length, 15.3 mm in width, and 2 mm in height.
It is constructed from tin plated steel, which provides durability and effective electromagnetic interference (EMI) shielding.
This shielding cage operates within a temperature range of -40°C to 125°C, making it suitable for extreme conditions.
It is ideal for applications in 5G, IoT, IO-Link wireless, and GNSS systems that require robust EMI protection.
The seamless frame design eliminates open slots, maximizing the Faraday cage effect and preventing signal leakage, enhancing EMI protection.
Yes, the shielding cage is made from halogen-free material, which increases environmental safety.
This model is part of the WE-SCH series from Wurth Elektronik.
The tin plating on the steel enhances the durability of the shielding cage while providing effective EMI shielding.
The country of origin for this product is Israel.
Typical use cases include wireless communication infrastructure, instrumentation, automotive electronics, and advanced sensor modules.
The model number of this shielding cage is 36702092.
With its compact dimensions of 20.9 x 15.3 x 2 mm, it is designed to fit efficiently in high-density PCB layouts.
