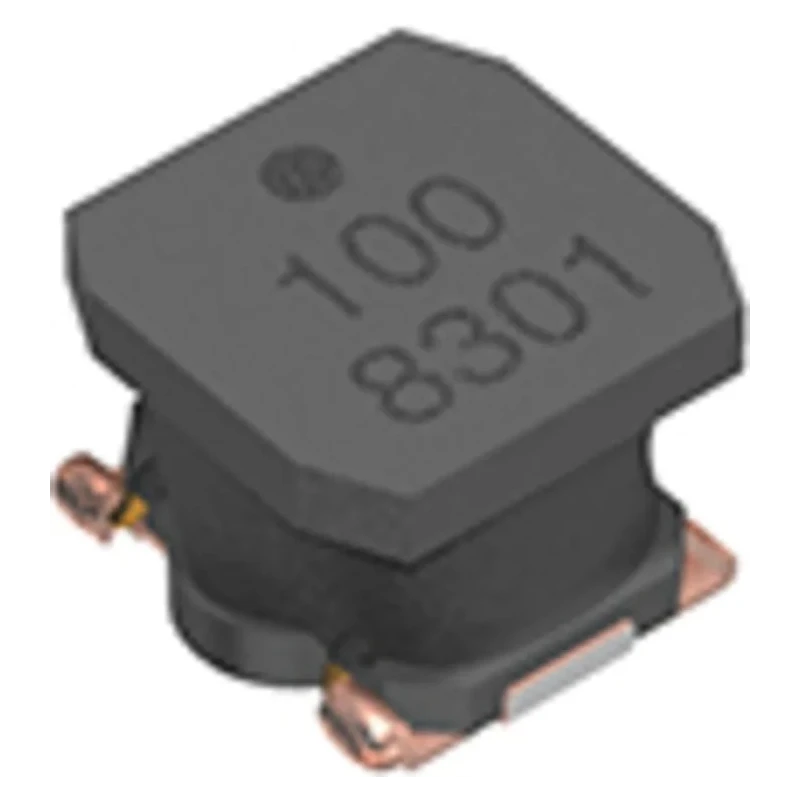

TDK VLS-EX-H 6045 Shielded Wirewound Surface Mount Inductor, Ferrite Core, 47μH ±20%, 1.8A, VLS6045EX-470M-H

TDK VLS6045EX-470M-H is a high-performance, shielded wirewound surface mount inductor designed for demanding power circuit applications. Featuring a ferrite core and a magnetic shield, this component is engineered to minimize electromagnetic interference while maintaining high efficiency and reliability. The inductance is specified at 47μH with a ±20% tolerance, making it suitable for power regulation, filtering, and energy storage in advanced electronic devices.

With a maximum DC current capacity of 1.8A and a maximum DC resistance of 299mΩ, the VLS6045EX-470M-H delivers robust performance, supporting heavy-duty circuits and ensuring stable current flow. Its construction, featuring a ferrite magnetic material and optimized core design, achieves higher current handling and lower resistance, ideal for modern high-density mounting requirements.

Inductance rated at 47μH with ±20% tolerance. Maximum DC current of 1.8A ensures reliable performance in power circuits. Shielded wirewound construction using a ferrite core reduces electromagnetic interference. Surface mount packaging (6045), ideal for automated assembly and compact PCB layouts.

Compliant with automotive standard AEC-Q200 for demanding environments. DC resistance rated at a maximum of 299mΩ for efficient operation. Minimum operating temperature of -40°C and a maximum of 125°C for wide temperature stability.

Tape & Reel packaging facilitates efficient bulk handling in manufacturing. Termination style supports surface mounting for easy integration. Height of 4.5mm and length of 6mm fit within compact electronic designs.

This inductor belongs to the VLS-EX-H series and is supplied in tape & reel packaging for efficient bulk handling. Its dimensions (length 6mm, width 6.3mm, height 4.5mm) make it ideal for miniaturized and dense circuit layouts used in automotive, telecom, industrial, and consumer electronics. The component's operating temperature range from -40°C to 125°C enables reliable performance across a broad range of environmental conditions.

Typical industrial applications include DC-DC converters, power regulation, noise filtering, and high-performance energy storage in automotive electronics, telecommunications infrastructure, instrumentation, and consumer devices. The device is RoHS compliant and meets international standards for quality and safety, supporting both conventional and next-generation PCB design requirements.
