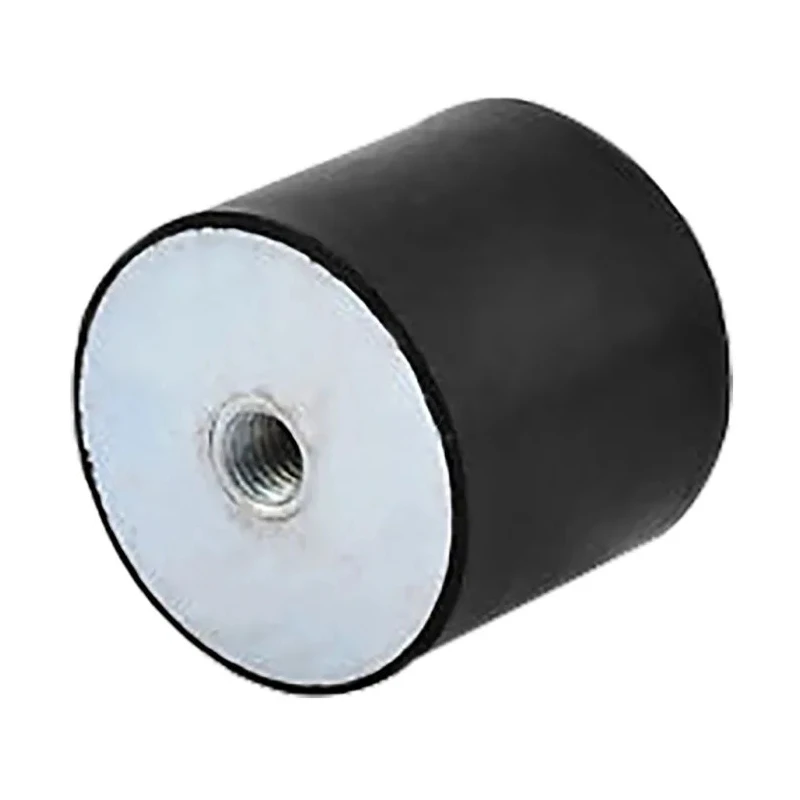

RS PRO Cylindrical M10 Female Buffer Foot Anti-Vibration Mount, 306 kg Compression, 50 mm OD, 15 mm H 126-5969

The RS PRO 126-5969 is a cylindrical anti-vibration mount engineered with a female buffer foot design and M10 threaded insert, optimized to reduce vibration and provide stable support in industrial environments. With a maximum compression load rating of 306 kg, this mount is ideal for use under heavy-duty equipment, acting as both a vibration dampener and structural foot.

This mount is constructed from high-quality natural rubber with a Shore hardness of 60 Shore A, offering excellent vibration isolation along with resilience and long-term durability. The outer diameter of 50 mm and height of 15 mm make it compatible with a variety of devices and machinery that require compact yet robust mounting solutions. Its zinc-plated steel metalwork provides superior corrosion resistance, making it suitable for challenging conditions including manufacturing, processing, and plant environments.

The design features a female M10 thread, enabling secure installation on equipment using compatible male threads. The bobbin-style configuration and cylindrical foot shape ensure even load distribution and effective dampening of both continuous and sudden shocks. The compression deflection of 1.5 mm allows for controlled movement under load, protecting sensitive machinery from damage and minimizing noise and vibration transmission.

This anti-vibration mount operates reliably in ambient temperatures from -25°C to +70°C, supporting a wide range of industrial, engineering, and HVAC system needs. The use of natural rubber not only ensures vibration absorption but also offers limited electrical insulation properties, which add another layer of equipment protection.

Applications for this mount include engine support, compressor and motor mounting, bump stop for moving assemblies, and use as a foot buffer on panels or doors to reduce impact noise and wear. The environmental and safety compliance is guaranteed with RoHS certification, ensuring responsible material usage and safe disposal.

In summary, the RS PRO 126-5969 is an engineered solution for vibration management, ideally suited for manufacturing lines, heavy machinery, industrial laboratories, HVAC systems, and other environments where stable, quiet, and safe mounting is required.

Female buffer foot design with M10 threaded insert for secure attachment. Cylindrical, bobbin-style construction for optimal load distribution. Supports up to 306 kg compression load, suitable for heavy equipment. Natural rubber build with shore hardness 60 Shore A and zinc-plated steel core.

Effective vibration isolation and extended equipment life. Find more industrial-grade vibration control, mountings, and accessories by browsing the Anti Vibration Mounts category or other RS PRO vibration solutions on EnvMart.
