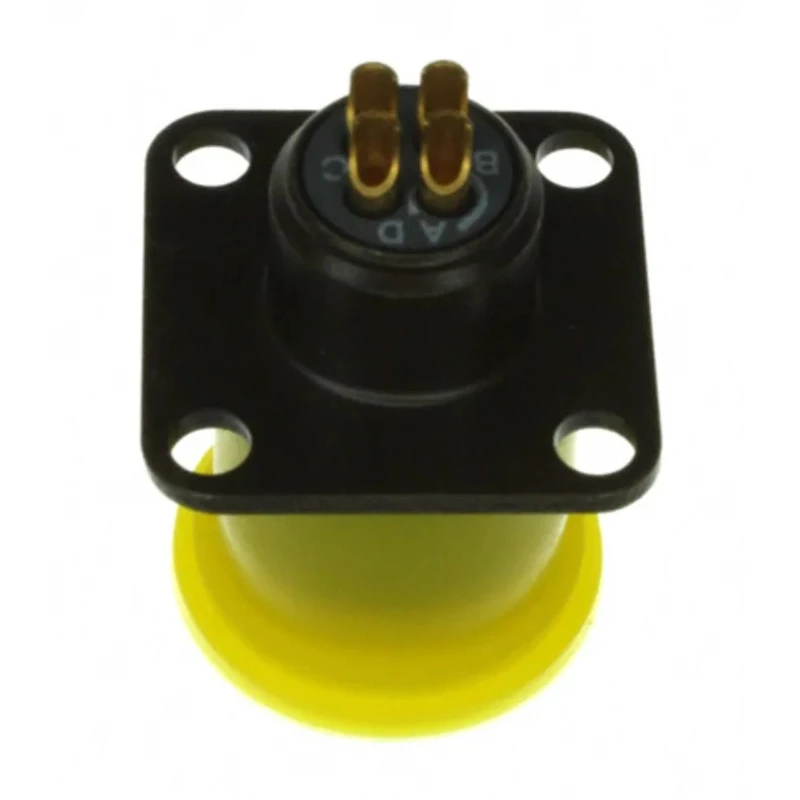

Souriau Sunbank by Eaton 85102E84S50 MIL Spec Circular Connector, Copper Alloy Straight, 4 Contacts, 200V AC, Male, Green
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 200V ac |
| Brand | Souriau Sunbank by Eaton |
| Colour | Green |
| Orientation | Straight |
| Current | 7.5A |
| Model | 85102E84S50 |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | 851 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 8 |
| Military Standard | MIL-C-26482 G Series I |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Cadmium |
Key Features
- Bayonet coupling ensures reliable mechanical and electrical connection.
- Features four gold-plated copper alloy contacts in a standard 8 shell size.
- Operating temperature range from -55°C to 125°C for demanding environments.
- Male connector with mating female contact, suitable for cable mounting.
- Cadmium-plated aluminium alloy shell offers durability and corrosion resistance.
- Complies with MIL-C-26482 G Series I military standard.
- Green coloured connector for easy identification in installations.
- Solder termination type for secure connections.
Product Description
The Souriau Sunbank by Eaton 85102E84S50 MIL Spec Circular Connector offers a highly reliable solution for secure cable interconnections in industrial, military and aerospace applications. It features a straight orientation and a robust copper alloy shell, ensuring both mechanical integrity and electrical performance.
This connector is equipped with four gold-plated copper alloy contacts, rated for up to 7.5A current at 200V AC. Its bayonet coupling mechanism provides a positive, fast, and secure locking system between mating halves, minimizing risks of accidental disconnection.
Designed to meet MIL-C-26482 G Series I military specification, the 851 series connectors are widely used in civil and military aviation, ground army equipment, professional electronics, robotics, factory automation, machine tools and various medical equipment. The connector’s durability is further enhanced by cadmium plating over the aluminium alloy housing, providing corrosion resistance and a long operational life.
The standard shell size (Size 8) and green colour allow for quick identification in assemblies, while the solder termination type ensures robust wire connections for rapid assembly and maintenance. The connector is capable of operating across a wide temperature range from -55°C to 125°C, making it suitable for harsh environments.
The male connector is designed to mate with corresponding female contacts, and is optimized for cable mounting with compact and lightweight construction. Standard approvals include FBI, and the product is manufactured in France for global applications.
Bayonet coupling ensures reliable mechanical and electrical connection. Features four gold-plated copper alloy contacts in a standard 8 shell size. Operating temperature range from -55°C to 125°C for demanding environments.
Male connector with mating female contact, suitable for cable mounting. Cadmium-plated aluminium alloy shell offers durability and corrosion resistance. Complies with MIL-C-26482 G Series I military standard. Green coloured connector for easy identification in installations.
Solder termination type for secure connections.
Ideal for industrial, electronics, defense, robotics, and automation applications where reliability and performance are paramount. Explore other Souriau Sunbank by Eaton connectors in the Industrial Circular Connector category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 200V AC.
This connector features contacts rated for up to 7.5A current.
It operates within a temperature range of -55°C to 125°C.
The connector uses a solder termination type for secure connections.
This model has four gold-plated copper alloy contacts.
It features a standard shell size of 8.
The housing is made of cadmium-plated aluminium alloy, providing durability and corrosion resistance.
This connector utilizes a bayonet mating type for secure locking.
Yes, it complies with the MIL-C-26482 G Series I military standard.
This model is manufactured in France.
The connector is green, allowing for easy identification in installations.
It is suitable for industrial, military, aerospace, and various electronic applications.
