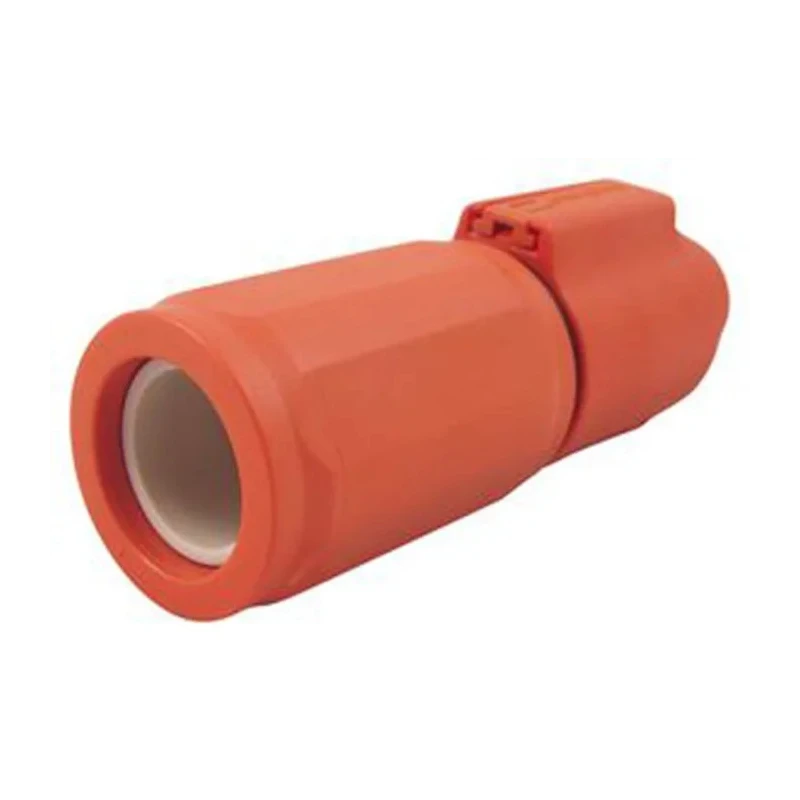

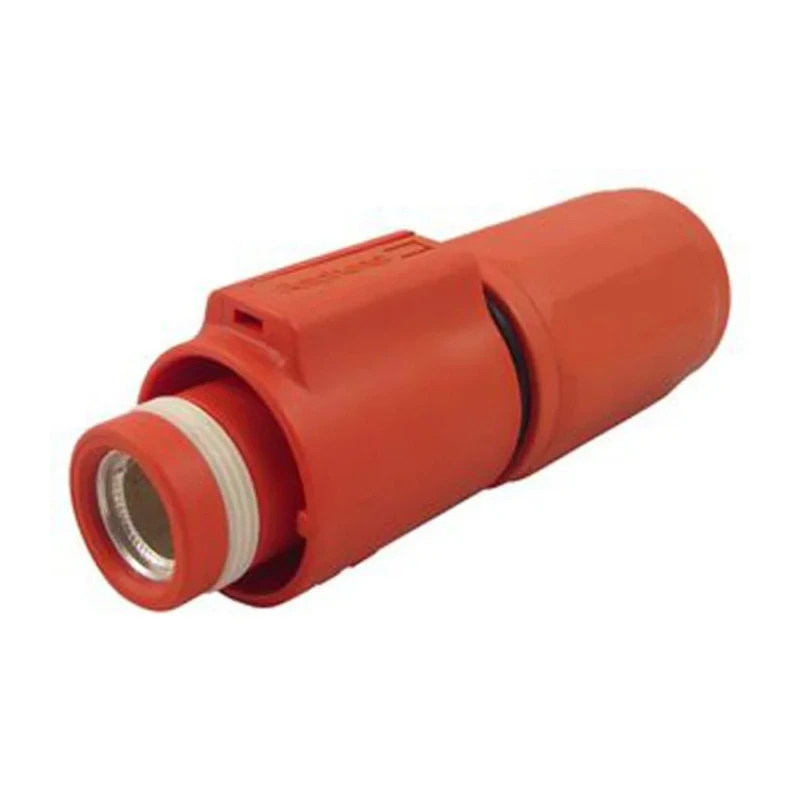

Amphenol Industrial SURLOK PLUS RADSOK EV Male Connector 150A, 1000V, 35mm² Wire, IP67, SLPIPB35BSO0 / C10-731951-000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 150A |
| Height | 24.6mm |
| Model | SLPIPB35BSO0 / C10-731951-000 |
| Depth | 72.4mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 21.4mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 35mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
Key Features
- This connector operates at 150A and 1000V for demanding automotive and industrial applications.
- Features an IP67 rating for robust environmental sealing and water resistance.
- Equipped with an 8mm pin diameter and accommodates a single 35mm² wire size.
- Utilizes RADSOK technology for high tensile strength and efficient current transfer.
- Male connector with crimp termination and keyed design to prevent mismating.
- Thermoplastic housing and copper alloy contact ensure mechanical durability.
- Operating temperature range from -40°C to 125°C for extensive application coverage.
- UL 94-V0 flammability rating for enhanced safety compliance.
Product Description
Amphenol Industrial's SLPIPB35BSO0 / C10-731951-000 SURLOK PLUS RADSOK EV Male Connector is engineered for high performance in electric vehicle and advanced industrial power systems. Delivering up to 150A at 1000V, this connector integrates RADSOK technology to maximize conductive surface area and ensure reliable, high-tensile connections.
Designed to accommodate 35mm² wire, this plug features a single contact within a straight orientation, using a crimp termination for secure installation. The 8mm pin diameter optimizes current transfer, while robust thermoplastic housing and copper alloy contact materials enhance both electrical and mechanical durability. Its keyed mechanism prevents mismating during installation.
The connector is touch proof, field installable, and claimed to rotate 360°, offering flexibility in cable mounting. Thanks to its IP67 environmental sealing, it withstands exposure to dust and water, making it ideal for harsh environments in automotive (EV/HEV), rail transit, process control, battery management systems, energy storage, and heavy equipment.
Certified with a UL 94-V0 flammability rating, the SURLOK PLUS connector ensures safety in high-risk applications. It operates reliably across a wide temperature range, from -40°C up to 125°C, and is colored orange for easy identification. Mounting is cable-based, supporting single-position receptacle compatibility.
Applications include automotive electrical systems, railway mass transit, industrial machinery, renewable energy installations, and medical devices where robust, high-current DC connections are essential.
Operates at 150A, 1000V for demanding electric and industrial environments. IP67 rating delivers proven environmental sealing for outdoor and mobile use. Thermoplastic housing and copper alloy contacts ensure rugged reliability.
Single-row, single-contact, keyed, straight orientation, crimp termination, 35mm² wire support. UL 94-V0 flammability, orange color for safety and identification. Touch proof, 360° rotation, field installable design.
Explore Amphenol Industrial's full range of automotive and EV connectors in the Automotive Electrical Connector category and browse other high-performance connection solutions from Amphenol Industrial on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector operates at a maximum current rating of 150A.
It has an operating voltage of 1000V, suitable for high-performance applications.
The connector features an IP67 rating, providing robust environmental sealing against dust and water.
It accommodates a single wire size of 35mm².
The housing is made of thermoplastic, and the contact material is copper alloy, ensuring mechanical durability.
The pin diameter is 8mm, optimizing current transfer.
It operates reliably within a temperature range of -40°C to 125°C.
The keyed design prevents mismating during installation, ensuring proper connections.
This model utilizes a crimp termination for secure installation.
The connector features a straight orientation.
It is suitable for automotive electrical systems, railway mass transit, industrial machinery, and renewable energy installations.
It is certified with a UL 94-V0 flammability rating, enhancing safety compliance in high-risk applications.
