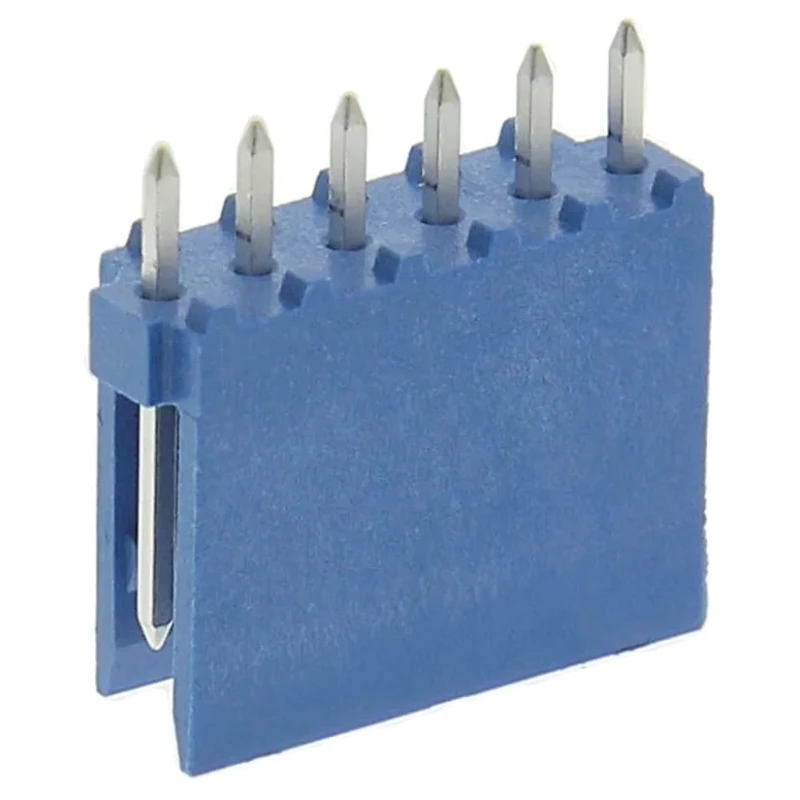

NEUTRAL AMPMODU Series Straight Through Hole PCB Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | NEUTRAL |
| Orientation | Straight |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
| HE14 6W 1/ROW STRT HDRBrand | NEUTRAL |
Key Features
- Provides reliable straight through-hole wire-to-board connections in PCB assemblies.
- 6 phosphor bronze contact pins with tin plating for excellent electrical performance.
- Shrouded, polarized thermoplastic housing prevents mismating and enhances durability.
- 2.54 mm pitch supports standard ribbon cable and IDC receptacle compatibility.
- Integrated friction lock ensures secure and stable mating with receptacles.
- Suitable for automotive, industrial, medical, telecom, and test equipment applications.
- Operating temperature range from -40°C to 105°C accommodates challenging environments.
- Rated for 3A current and 500V voltage for diverse signal and control requirements.
Product Description
TE Connectivity's AMPMODU HE14 Series 281695-6 is a straight, through-hole PCB header designed for wire-to-board applications. Featuring a 2.54 mm pitch, shrouded housing, and 6 contact pins, the connector offers reliable interconnection in signal and control circuits.
This header utilizes a high-temperature UL 94V-0 rated thermoplastic housing, which provides excellent durability and resistance to environmental stresses. The shrouded design protects pins during handling and usage, while polarization features prevent incorrect mating. The integrated friction lock delivers a secure fit when mated with compatible IDC or ribbon cable receptacles.
The contact system employs phosphor bronze contacts plated with tin, ensuring stable and low-resistance electrical connections that resist corrosion. The male contacts are terminated through soldering, suitable for standard PCB assembly processes. Tail pin length is precisely 2.79 mm to accommodate various PCB thicknesses.
This header is specifically engineered for industrial reliability and can be used in automotive controls, industrial test equipment, computers, telecommunications, medical instruments, storage equipment, and appliances. As part of the AMPMODU HE14 family, it meets signal standards for automation and process control.
Operating temperature ranges from -40°C to 105°C, and the rated current is 3A with a voltage rating up to 500V. The connector's robust housing ensures proper alignment, pin protection, and secure mating to minimize maintenance and signal interruptions. It is well-suited for environments where repeat connections and rugged construction are required.
Applications cover industrial electronics, lab instrumentation, process automation, automotive electronics, and medical device boards where consistent connection and pin protection are essential. The straight, single-row configuration supports streamlined PCB layouts and efficient assembly.
Explore the full range of TE Connectivity PCB headers and AMPMODU interconnect solutions in the PCB Header category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.54 mm, which supports standard ribbon cable and IDC receptacle compatibility.
The maximum operating temperature for this model is 105°C, making it suitable for challenging environments.
This PCB header features 6 contacts, which are designed for reliable wire-to-board connections.
The connector is rated for 3A current and 500V voltage, accommodating diverse signal and control requirements.
The housing of this header is made from thermoplastic material, specifically rated for high-temperature applications (UL 94V-0).
This model uses solder termination, which is suitable for standard PCB assembly processes.
This connector is shrouded, which protects the pins during handling and usage, and prevents mismating.
The tail pin length of this PCB header is 2.79 mm, accommodating various PCB thicknesses.
This header is suitable for automotive, industrial, medical, telecom, and test equipment applications.
The orientation of this PCB header is straight, designed for efficient PCB layouts and assembly.
The contact material used in this connector is phosphor bronze, which is plated with tin for improved electrical performance.
This PCB header is manufactured in India.
