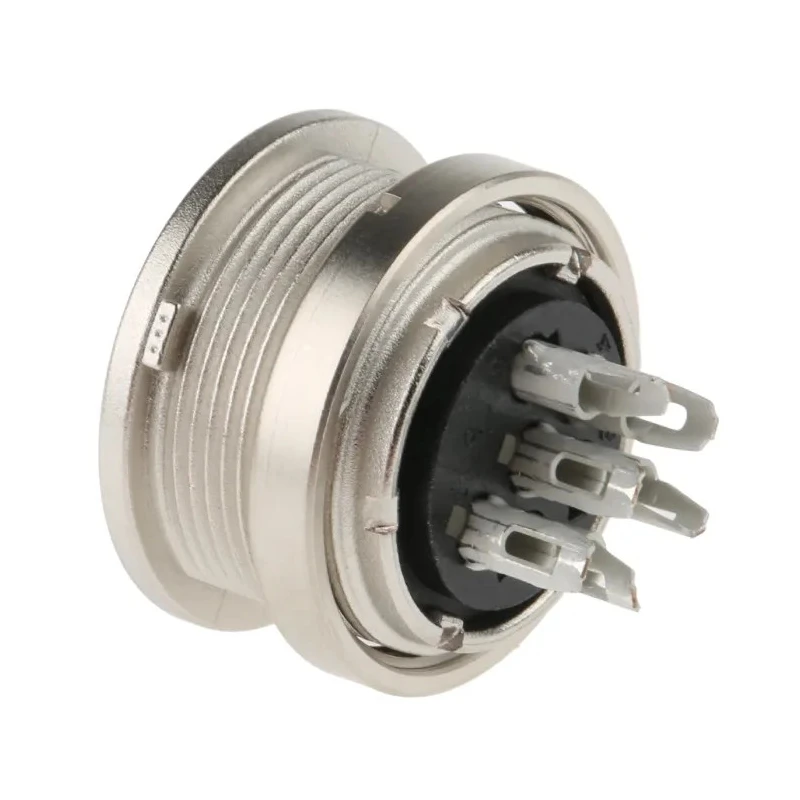

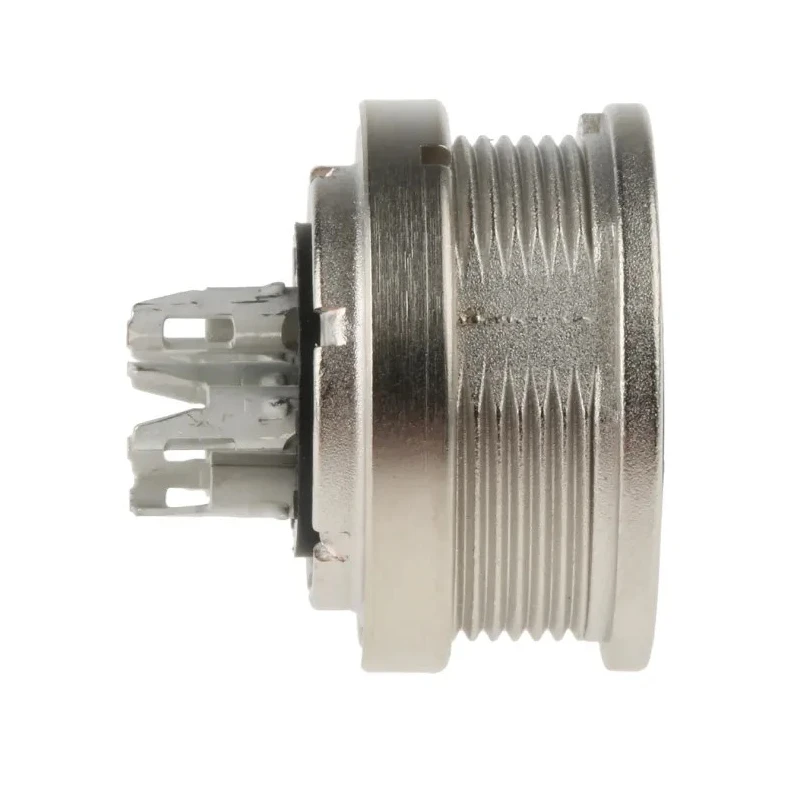

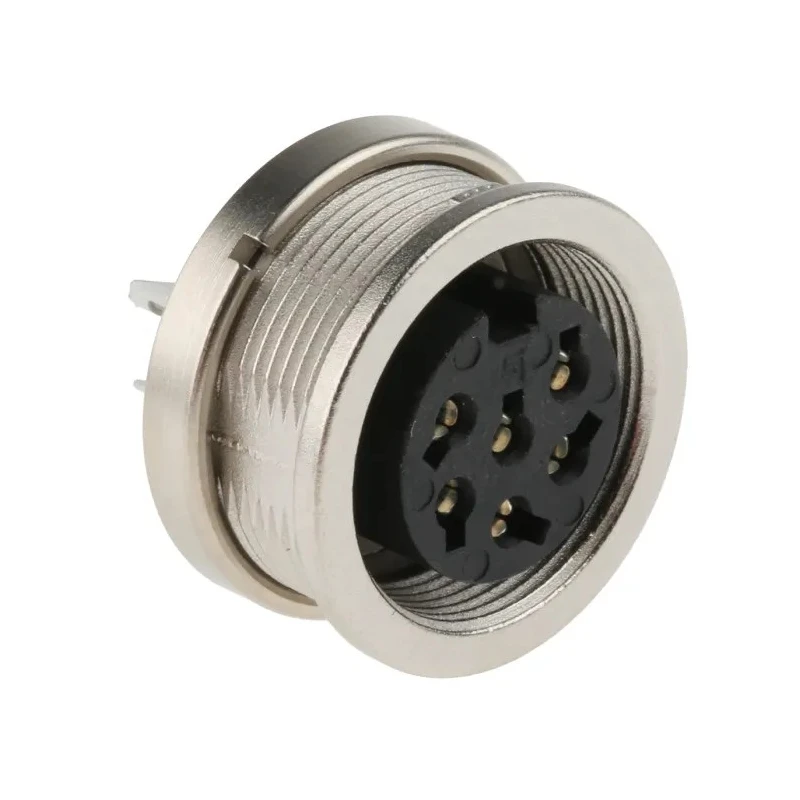

binder Circular Connector Panel Mount, M16, 6 Contacts, Socket Female, IP40, Straight, Solder, Die Cast Zinc 09-0324-00-06
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250.0V |
| Brand | binder |
| Orientation | Straight |
| Current | 5A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Bronze |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 61076-2-106 |
| Contact Plating | Silver |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Shell Size | 18.5 mm |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- Compact M16 circular connector with 6 contacts for panel mounting.
- Socket configuration and female contact gender suitable for standardized industrial applications.
- Rated for 5A current and 250V voltage, ensuring reliable electrical performance.
- Straight orientation body with solder termination for easy installation.
- Die cast zinc housing offers mechanical durability and resistance to environmental hazards.
- Silver-plated bronze contacts provide high conductivity and corrosion resistance.
- IP40 ingress protection suitable for less demanding industrial environments.
- Operates from -40°C to +85°C, covering wide industrial and laboratory conditions.
Product Description
The binder 09-0324-00-06 Circular Connector is a miniature yet robust panel mount connector specifically designed for industrial, automation, laboratory, and instrumentation applications. Featuring the standardized M16 shell size and a straight body orientation, this connector offers a socket configuration with six female contacts, suitable for rapid panel assembly in equipment and control systems.
This model from binder's 680 Series is rated for 5A at 250V, making it ideal for medium power and signal transmission. The connector employs solder termination, facilitating secure electrical connections in control panels and device enclosures. Its housing is manufactured from die cast zinc, ensuring mechanical strength and resistance to environmental degradation.
The contacts are crafted from bronze with silver plating, maximizing conductivity while minimizing oxidation and extending operational lifespan. The connector meets the DIN EN 61076-2-106 standard, providing confidence in quality and compatibility for industrial integration.
IP40 ingress protection makes this connector suitable for protected indoor environments, where dust and finger ingress are not a concern. It operates effectively in temperatures ranging from -40°C up to +85°C, making it apt for demanding laboratory and manufacturing conditions.
Applications for the binder 09-0324-00-06 include medical equipment, machine tool control panels, factory automation systems, and test instrumentation where reliable panel mounting and electrical performance are essential. The miniature form factor supports installation in densely packed instrumentation.
Key benefits include the use of silver and bronze contacts for durability, multiple termination options, and high reliability with simple assembly. This connector supports industrial and commercial setups requiring efficient panel mount socket connections.
Discover more panel mount connectors and binder's ranges on EnvMart for further customization and application solutions in electronics and automation.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 5A and a voltage of 250V, making it suitable for medium power and signal transmission applications.
It has an IP40 ingress protection rating, which is suitable for protected indoor environments where dust and finger ingress are not a concern.
The connector operates effectively in temperatures ranging from -40°C to +85°C, suitable for demanding laboratory and manufacturing conditions.
The contacts are made from bronze and are silver-plated, which maximizes conductivity and minimizes oxidation.
It employs solder termination, facilitating secure electrical connections in control panels and device enclosures.
The shell size of this connector is M16, which is standardized for industrial applications.
This model features six female contacts, suitable for rapid panel assembly in equipment and control systems.
The housing is made from die cast zinc, providing mechanical strength and resistance to environmental degradation.
It meets the DIN EN 61076-2-106 standard, ensuring quality and compatibility for industrial integration.
It features a straight orientation body, which is designed for panel mounting applications.
Applications include medical equipment, machine tool control panels, factory automation systems, and test instrumentation.
The country of origin for this connector is Germany.
