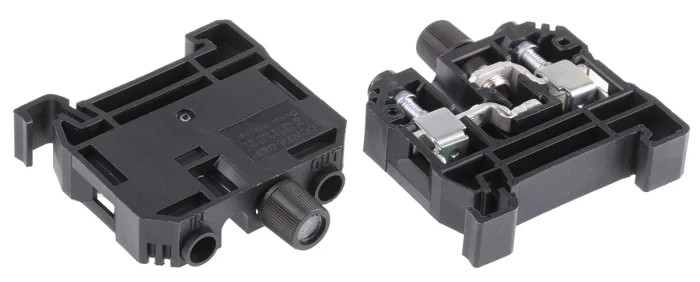

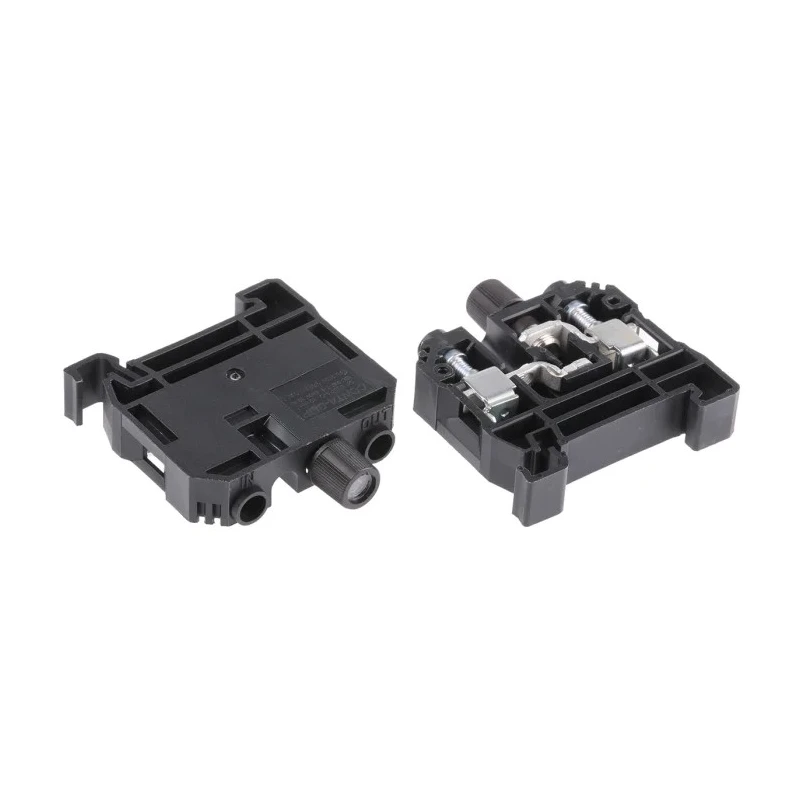

RS PRO SK Series Fused DIN Rail Terminal Block, 1 Level, 400V, 10A, Black, 0.5 - 10 mm², Screw, 501-875
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400V |
| Brand | RS PRO |
| Colour | Black |
| Model | 501-875 |
| Series | SK |
| Termination Type | Screw |
| Maximum Operating Temperature | 140°C |
| Number of Levels | 1 |
| Sub Type | Fused |
| Minimum Operating Temperature | -40°C |
| Pitch | 12.2mm |
| Standards/Approvals | KEMA-KEUR, EAC, CSAus, CSA, UL, TR ZU 004/2011 |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 8AWG |
| Cable CSA | 0.5, 10mm² |
| Terminal Block Current | 10A |
Key Features
- Provides reliable electrical connections with built-in fuse protection for DIN rail mounting.
- Accommodates wire sizes from 0.5 to 10 mm² and supports both 22AWG minimum and 8AWG maximum.
- Operates at voltages up to 400V and currents up to 10A, making it suitable for a wide range of control panels.
- Screw-type termination ensures secure, long-lasting, and maintenance-friendly connections.
- Robust construction for operation in environments from -40°C to 140°C.
- Compact single-level design simplifies installation and improves panel density.
- Ideal for use in energy management, lighting controls, HVAC, and industrial automation systems.
Product Description
The RS PRO SK Series DIN rail terminal block, model 501-875, is a single-level fused terminal designed for the secure and protected connection of electrical circuits in automation, control, and building management panels. Engineered for DIN rail mounting, this terminal block incorporates an integrated fuse holder, providing overcurrent and short-circuit protection for individual circuits.
This product supports a cable cross-sectional area from 0.5 to 10 mm², accepting a wide range of wire gauges from 22AWG to 8AWG. With a voltage rating of up to 400V and a current handling capacity of 10A, it is suitable for power distribution and control applications requiring dependable performance and enhanced circuit safety. The robust screw-type termination ensures stable and vibration-resistant connections, essential for demanding industrial environments.
The compact black enclosure, constructed for high durability, operates reliably across a broad temperature range from -40°C to 140°C. The terminal block's pitch measures 12.2 mm, allowing effective arrangement within enclosure panels while conserving space. It is fully compliant with international approvals like KEMA-KEUR, EAC, CSAus, CSA, UL, and TR ZU 004/2011, ensuring suitability for global installations.
Typical applications include energy management panels, lighting controllers, building automation systems, HVAC control panels, and telecommunications equipment. The SK Series design allows easy marking above both wire entries, and with a 1.5 mm wide endplate, provides high panel density without compromising accessibility or safety.
For engineers designing or maintaining control cabinets, this fused DIN Rail Terminal Block adds a vital layer of protection and reliability. Its versatility and adherence to strict safety standards make it a trusted solution in industrial, commercial, and infrastructure environments. Explore more DIN rail terminal solutions in the RS PRO SK Series and streamline your panel design with advanced safety features.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a voltage rating of up to 400V and can handle a current of 10A.
It accommodates wire sizes ranging from 0.5 mm² to 10 mm², supporting both 22AWG minimum and 8AWG maximum wire gauges.
This model features screw-type termination, ensuring secure and maintenance-friendly connections.
It operates reliably across a temperature range from -40°C to 140°C.
The pitch of this terminal block is 12.2 mm, allowing for effective arrangement within enclosure panels.
This model is a single-level terminal block, designed for compact installation.
It features a robust black enclosure, constructed for high durability in various environments.
The integrated fuse holder provides overcurrent and short-circuit protection for individual circuits, enhancing circuit safety.
The country of origin for this terminal block is India.
It supports a maximum wire size of 10 mm².
