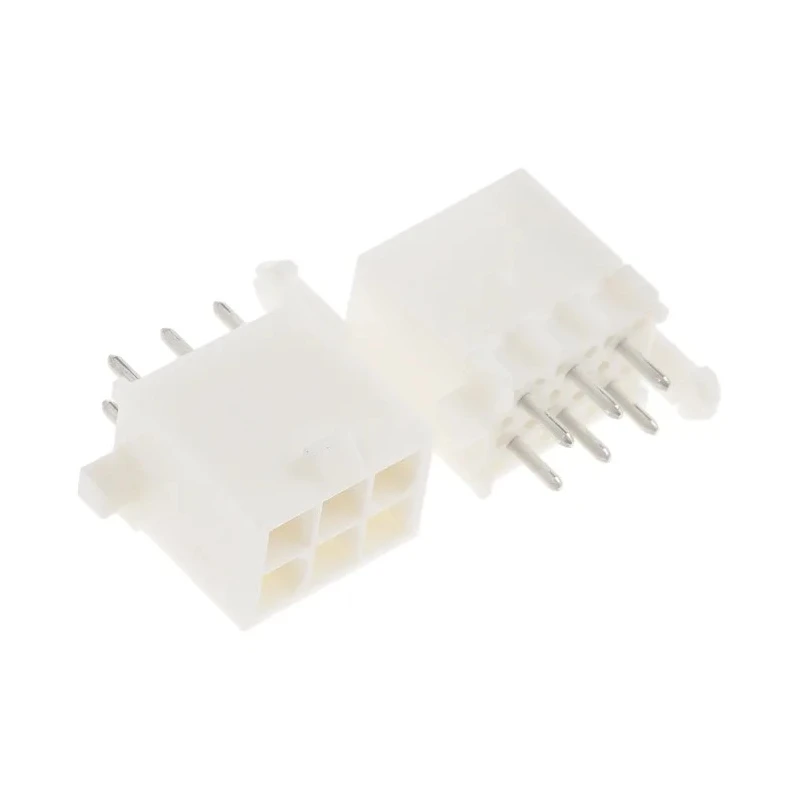

TE Connectivity Mini-Universal MATE-N-LOK PCB Header, 6 Contacts, 4.14mm Pitch, 2 Row, Straight, Shrouded 1-770178-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- This header is part of the Mini-Universal MATE-N-LOK series, supporting wire-to-board connections.
- Features a 6-contact configuration in two rows with a 4.14mm pitch for robust electrical connectivity.
- Designed for straight through hole mounting and includes a shrouded nylon housing for enhanced durability.
- Supports up to 600V voltage and 9.5A current for demanding PCB applications.
- Brass contacts with tin plating ensure secure soldered connections and reliable performance.
- Male contacts and a positive locking latch mechanism provide secure mating and PCB retention.
- Operating temperature ranges from -55°C to 105°C, suitable for industrial and electronic environments.
- Ideal for power, signal, and control circuit integration in commercial electronics, industrial equipment, and laboratory systems.
Product Description
TE Connectivity 1-770178-0 Mini-Universal MATE-N-LOK PCB Header is a high-quality connector designed for wire-to-board applications. This straight through hole PCB header features a shrouded nylon housing to ensure robust protection and secure mating in demanding environments. The connector's 6-contact configuration is arranged in two rows with a 4.14mm pitch, making it suitable for compact and reliable electrical connections on printed circuit boards.
Engineered for industrial and commercial electronics, its housing material is UL94V-0 rated nylon for flame resistance and long-term reliability. The brass contacts are preloaded and plated with tin, offering corrosion resistance and consistent electrical conductivity. The positive locking latch mechanism ensures secure engagement and prevents accidental disconnect, while board locks facilitate stable PCB retention.
This PCB header is rated for 600V and supports up to 9.5A, making it suitable for power, signal, and control circuits. The connector operates reliably within a wide temperature range from -55°C to 105°C, supporting critical electronic operations under varied conditions. Solder tail pins are provided with a length of 3.69mm for easy mounting and strong mechanical stability.
Designed for wire-to-board connector systems, the Mini-Universal MATE-N-LOK series can be paired with compatible plug housings that use socket contacts. This model is available with or without drain holes, providing flexibility for specific board requirements or environmental needs.
The Mini-Universal MATE-N-LOK PCB header is commonly used in industrial automation equipment, laboratory instrumentation, commercial electronic systems, and manufacturing controls. It offers reliable electrical and mechanical performance in applications where secure, high-current, compact connectors are essential.
Use cases include integration in control panels, signal transfer modules, power distribution circuits, and laboratory devices requiring robust connections. This header provides the assurance of secure mating, high electrical ratings, and convenient through-hole solder termination for straightforward installation and maintenance in diverse environments.
Explore more TE Connectivity PCB Headers and connectors for advanced industrial, laboratory, and commercial applications with EnvMart.
