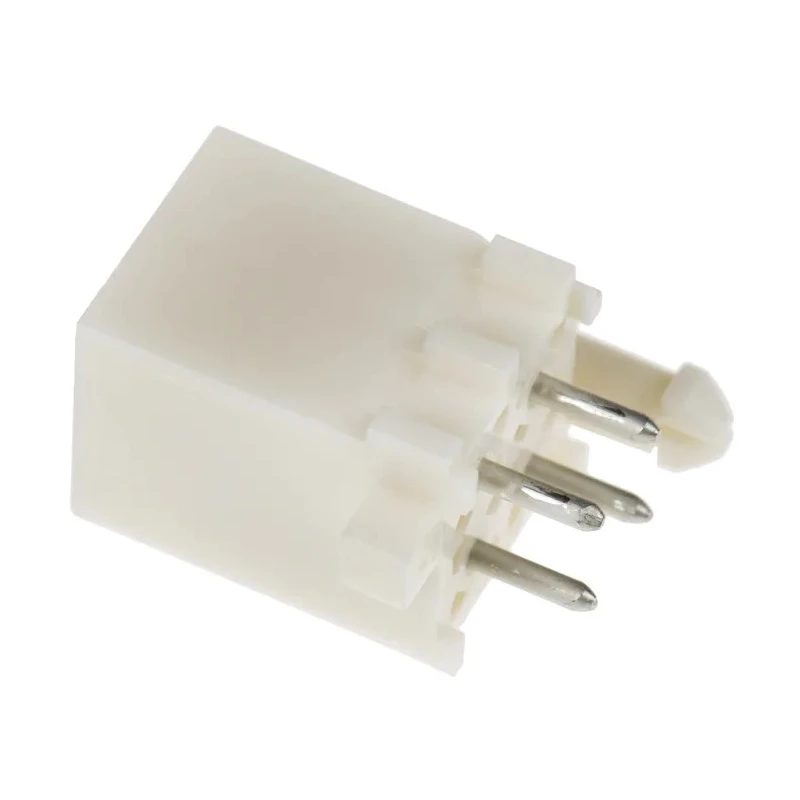

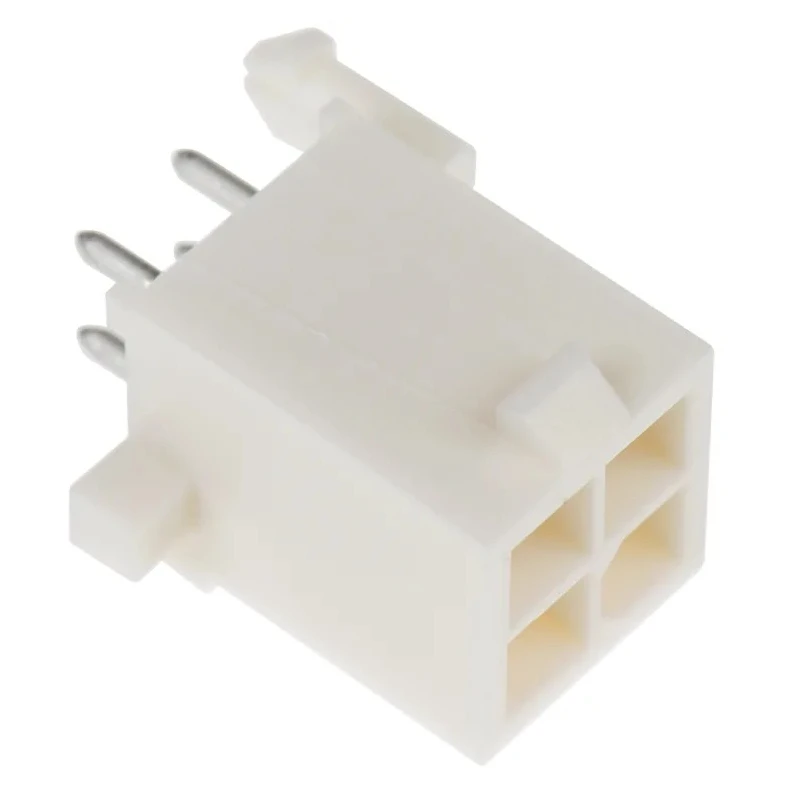

TE Connectivity Mini-Universal MATE-N-LOK Vertical PCB Pin Header, 4 Contacts, 4.14mm Pitch, 2 Row, Straight 1-770174-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- Header features 4 male contacts in a 2-row configuration.
- Designed for wire-to-board applications using a 4.14mm pitch.
- Housing made from UL94V-0 nylon for durability and flame resistance.
- Straight orientation, shrouded for secure mating with plug housings.
- Supports 9.5A current rating and 600V maximum voltage.
- Suitable for solder termination with brass, tin-plated contacts.
- Operates reliably from -55°C to 105°C temperature range.
- Tail pin length of 3.69mm ensures effective PCB engagement.
Product Description
The TE Connectivity Mini-Universal MATE-N-LOK Series PCB Header, model 1-770174-0, is a precision-engineered vertical pin header designed for robust wire-to-board connections. This connector provides four male contacts arranged in a dual-row format, allowing for secure and reliable signal transmission in a wide variety of industrial, electronic, and commercial PCB designs.
Featuring a standard 4.14mm pitch, the Mini-Universal MATE-N-LOK header is intended for through-hole mounting on circuit boards. It incorporates a shrouded straight orientation that enables positive locking latch mechanisms, supporting secure mating and board retention. The UL94V-0 nylon housing provides excellent durability, mechanical stability, and flame resistance for demanding environments.
The pin contacts are fabricated from brass and are finished with high-quality tin plating, ensuring optimal electrical performance and corrosion resistance. This header is capable of handling up to 9.5A of current and supports applications operating at voltages up to 600V, making it suitable for both power and signal use.
With a solder termination style and a tail pin length of 3.69mm, the connector is easy to mount and provides reliable engagement with PCB holes. The product is designed to operate across a broad temperature range from -55°C to 105°C, making it applicable in various conditions including industrial automation, laboratory equipment, and commercial electronics.
Suitable for mating with Mini-Universal MATE-N-LOK plug housings (with socket contacts), this PCB header is essential for systems requiring secure, high-quality wire-to-board connectivity.
Provides 4.14mm pitch for wire-to-board connections. Flame-resistant UL94V-0 nylon housing ensures operational safety. Supports 9.5A current and 600V voltage requirements for industrial electronics. Operates across -55°C to 105°C, ideal for tough operating environments.
Suitable for PCB retention with positive locking and board locks. Brass, tin-plated male contacts ensure strong conductivity and durability. Straight orientation with solder termination simplifies installation and PCB layout.
Industrial applications include automation control panels, power management systems, instrumentation, and commercial PCB-based designs. Explore more TE Connectivity connectors and PCB Headers in EnvMart's electronics components category for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 9.5A, making it suitable for both power and signal applications.
It can handle a maximum voltage of 600V, suitable for various industrial electronic applications.
The pitch size of this header is 4.14mm, designed for wire-to-board connections.
The housing is made from UL94V-0 nylon, while the contacts are fabricated from brass and finished with tin plating for enhanced conductivity.
It operates reliably within a temperature range of -55°C to 105°C, suitable for various environmental conditions.
This unit is designed for through-hole mounting on circuit boards, ensuring secure installation.
The tail pin length is 3.69mm, which ensures effective engagement with PCB holes.
It features a total of 4 male contacts arranged in a 2-row configuration.
This PCB header uses a solder termination type, facilitating easy mounting.
The connector has a straight orientation, which allows for secure mating with plug housings.
It is suitable for applications in industrial automation, power management systems, and commercial PCB-based designs.
This model is designed as a wire-to-board connector system, ideal for secure connections between wires and PCBs.
