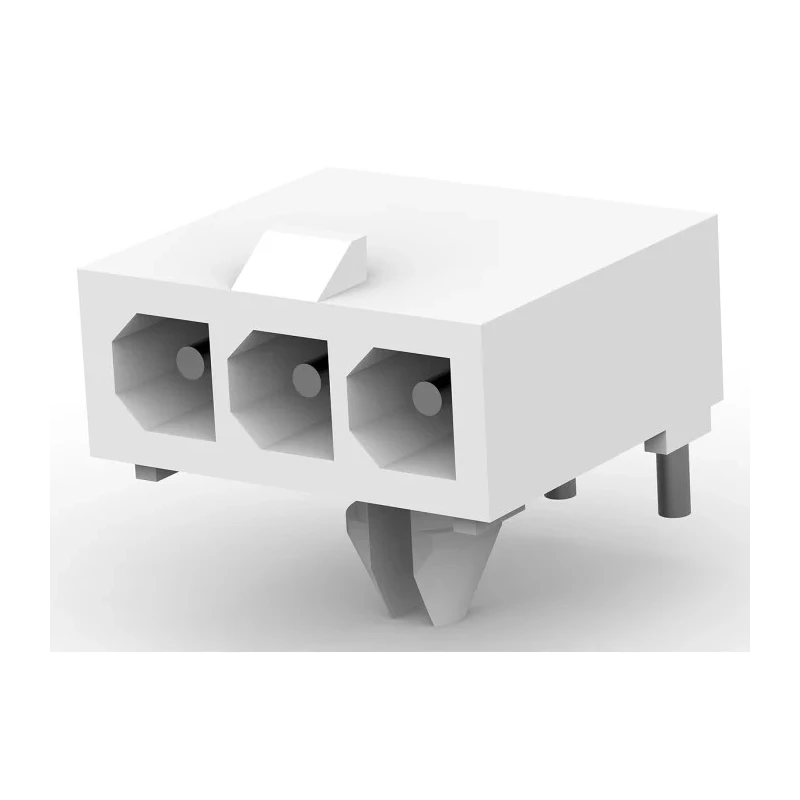

TE Connectivity Mini-Universal MATE-N-LOK Series PCB Header Right Angle Through Hole, 3 Contacts, 4.14 mm Pitch 1-770967-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- Robust Mini-Universal MATE-N-LOK PCB header for wire-to-board connections.
- Right angle orientation with 3 male brass contacts for compact layouts.
- Supports 9.5A current and 600V voltage operation for reliable circuits.
- Shrouded UL94V-0 nylon housing with positive latch and board locks ensures secure mating.
- Through hole mounting provides durable solder termination and mechanical retention.
- Tail pin length of 3.69 mm supports stable soldered assemblies.
- Tin-plated contacts resist corrosion and maintain high conductivity.
- Wide operating temperature range from -55°C to 105°C for industrial applications.
Product Description
The TE Connectivity Mini-Universal MATE-N-LOK Series PCB Header, model 1-770967-0, is engineered as a robust right angle through hole connector specifically designed for wire-to-board applications. This component features three male tin-plated brass contacts spaced at a 4.14 mm pitch, encapsulated within a shrouded UL94V-0 nylon housing. The connector is ideal for delivering reliable high-current and voltage connections in industrial and electronic circuit boards.
With its rated performance of up to 9.5A current and 600V voltage, this header ensures stable power and signal transmission even in demanding environments. Its shrouded design and positive locking latch mechanism enhance connector security, preventing accidental disengagement during operation. The white nylon housing is flame-retardant and incorporates board locks that facilitate efficient PCB retention, meeting stringent durability and safety standards.
The right angle orientation allows for compact PCB layouts and straightforward integration into production lines. Through hole solder termination supports strong mechanical retention and electrical connectivity, while tail pin length of 3.69 mm is optimized for stable soldering. The component features a wide operating temperature range from -55°C to 105°C, making it suitable for varied industrial, laboratory, and commercial usage.
This connector is compatible with Mini-Universal MATE-N-LOK plug housings (socket contacts), enabling flexible assembly and maintenance in wire harnesses and device installations. Applications span industrial control systems, power distribution, automation equipment, and advanced PCB designs where secure wire-to-board interfaces are critical.
Additional highlights include tin contact plating providing corrosion resistance, brass contact material for optimal conductivity, solder termination for straightforward installation, and its compliance with standard design dimensions for interchangeability and system compatibility. The connector's overall build and performance make it an essential component in modern electronics manufacturing.
Explore more TE Connectivity PCB Headers and wire-to-board connectors in EnvMart's Electronics & Electricals category for advanced engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 9.5A.
It can handle a voltage of up to 600V.
The contacts are spaced at a pitch of 4.14 mm.
The tail pin length is 3.69 mm.
This connector uses through hole mounting for durable solder termination.
The housing is made from nylon, specifically UL94V-0 rated for flame retardancy.
It utilizes solder termination for electrical connectivity.
The operating temperature range is from -55°C to 105°C.
This model features 3 male contacts.
Yes, it is suitable for various industrial applications due to its robust design and specifications.
The contacts are made from brass and are tin-plated for corrosion resistance.
This model belongs to the wire-to-board connector system.
