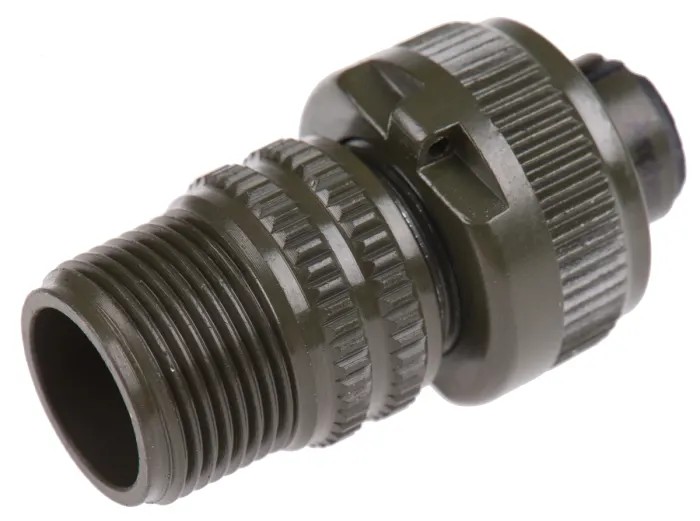

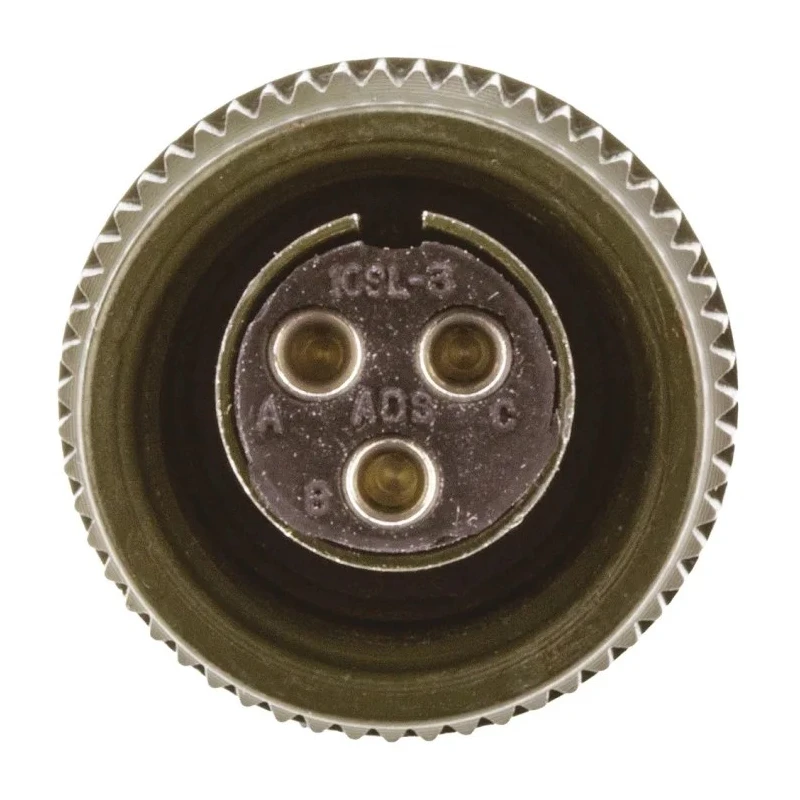

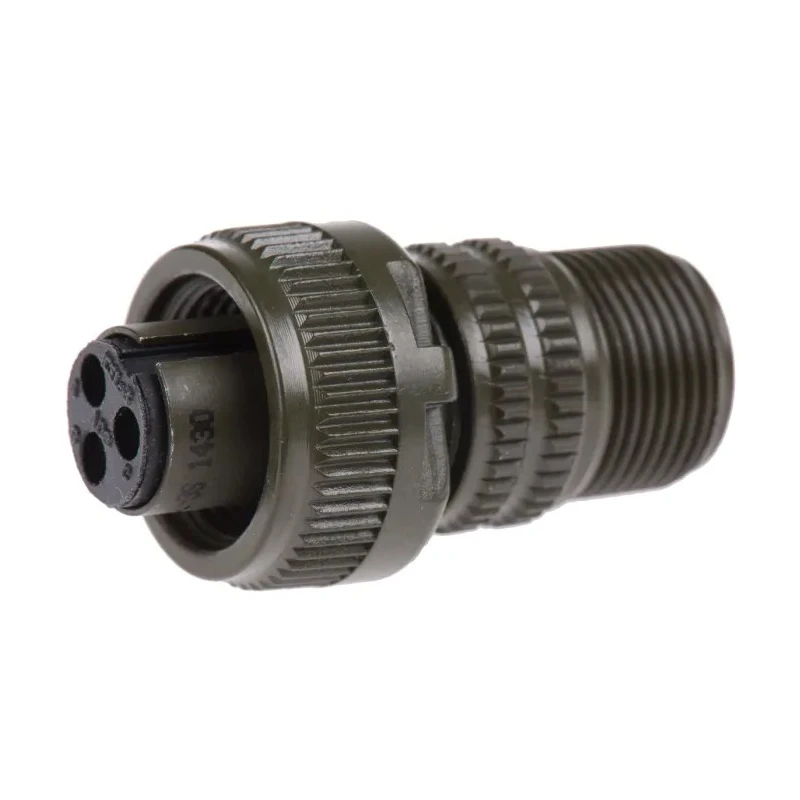

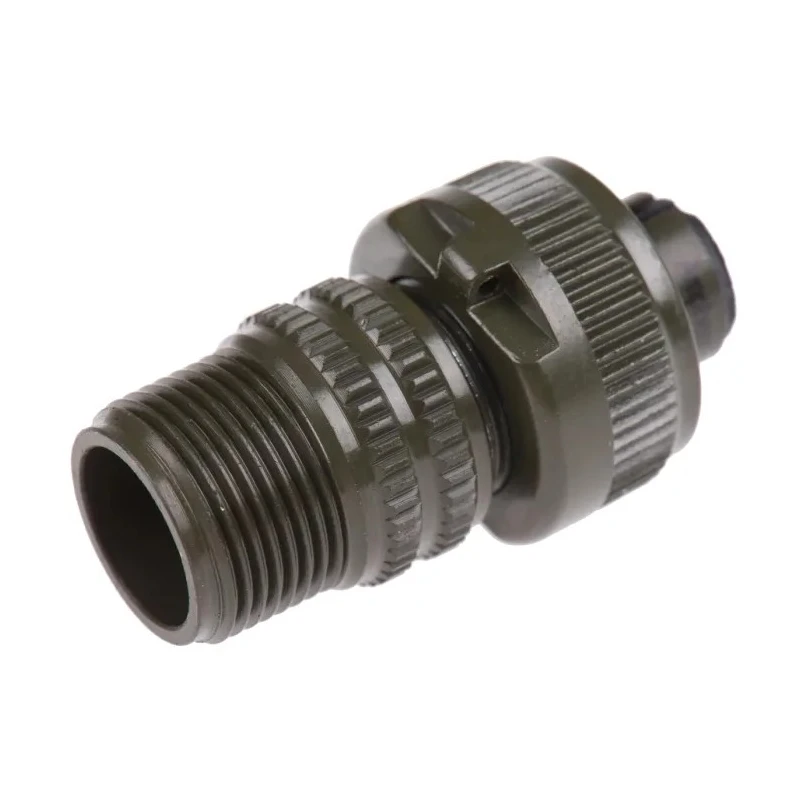

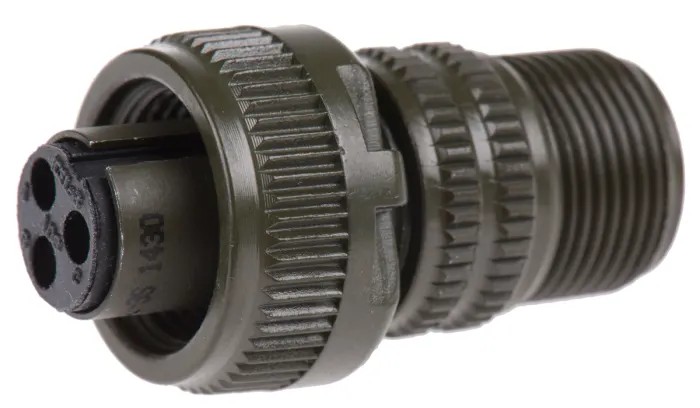

Amphenol Industrial MIL Spec Circular Connector Copper Alloy Straight Female 3 Way Cable MS3106A
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 15A |
| Model | MS3106A |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | MS3106A |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 10 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- Three-way cable-mount connector with robust female copper alloy contacts.
- Rated for 15A, and voltage up to 700V AC for demanding electrical environments.
- Screw coupling mechanism ensures secure mating and reliable operation.
- IP67 ingress protection for dust and water resistance in industrial settings.
- Rugged aluminium housing with zinc cobalt plating and strain relief for durability.
- Wide operating temperature range from -55°C to 125°C supports harsh conditions.
- Complies with MIL-DTL-5015 military standard specifications.
- Silver-plated copper alloy contacts offer high conductivity and corrosion resistance.
Product Description
The Amphenol Industrial MS3106A-10SL-3S is a three-way MIL spec circular cable connector engineered for industrial and demanding military-standard applications. This connector features female contacts made from copper alloy and is designed for use in powering, testing, and ground support systems where reliability and ruggedness are critical.
Boasting a current rating of 15A and voltage tolerance up to 700V AC, the MS3106A-10SL-3S is suitable for communication equipment, computers, shipboard installations, and other environments subjected to rigorous mechanical and electrical requirements. The screw coupling mechanism delivers quick, secure, and accurate mating with single key/keyway shell polarization for dependable connectivity.
The connector's robust housing is constructed from high-grade aluminium, finished with zinc cobalt plating and an olive drab chromate layer to enhance corrosion resistance. IP67 ingress protection makes it dustproof and water-resistant, ensuring performance in adverse environmental conditions. Integrated strain relief further improves durability and longevity under mechanical stress.
Silver-plated copper alloy contacts provide reliable electrical conductivity as well as resistance to wear and corrosion. The standard shell size 10 and cable-mount design allow for versatile integration with compatible MS Series 3100, 3101, and 3102 receptacles.
Designed to meet MIL-DTL-5015 and related requirements, the MS3106A-10SL-3S offers a wide operating temperature range from -55°C to 125°C and features resilient synthetic rubber inserts for high dielectric strength and vibration resistance. Termination is via solder buckets for secure and stable wire attachment.
Applications for this connector include industrial, laboratory, manufacturing, marine, and aerospace systems. It is employed wherever a rugged, field-proven connector is required for high voltage and current circuits.
Three-way female circular connector for cable mounting. High-grade aluminium shell with corrosion-resistant zinc cobalt plating. IP67 rating for dust and water ingress protection. Screw coupling with keying and polarization features prevents mismating.
Suitable for industrial, commercial, and military-grade deployments. Explore the full range of MIL-Spec Circular Connectors from Amphenol Industrial and browse related categories at EnvMart for advanced industrial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Amphenol Industrial MS3106A connector is rated for voltages up to 700V AC.
This connector has a current rating of 15A.
It features a screw coupling mechanism that ensures secure mating and reliable operation.
The connector has an IP67 rating, making it dustproof and water-resistant.
The housing is made of aluminium with zinc cobalt plating, while the contacts are copper alloy with silver plating.
It operates within a temperature range of -55°C to 125°C.
This model features three female contacts.
The termination type is solder, allowing for secure wire attachment.
It complies with MIL-DTL-5015 military standard specifications.
It is suitable for industrial, laboratory, manufacturing, marine, and aerospace systems.
The shell size of the MS3106A connector is standard size 10.
The country of origin for this connector is the Czech Republic.
