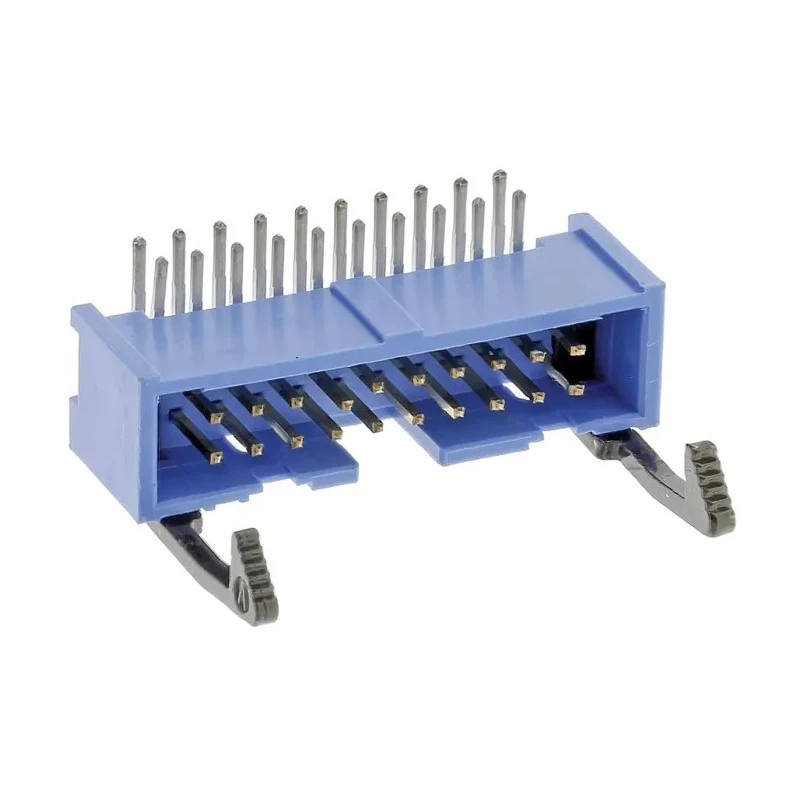

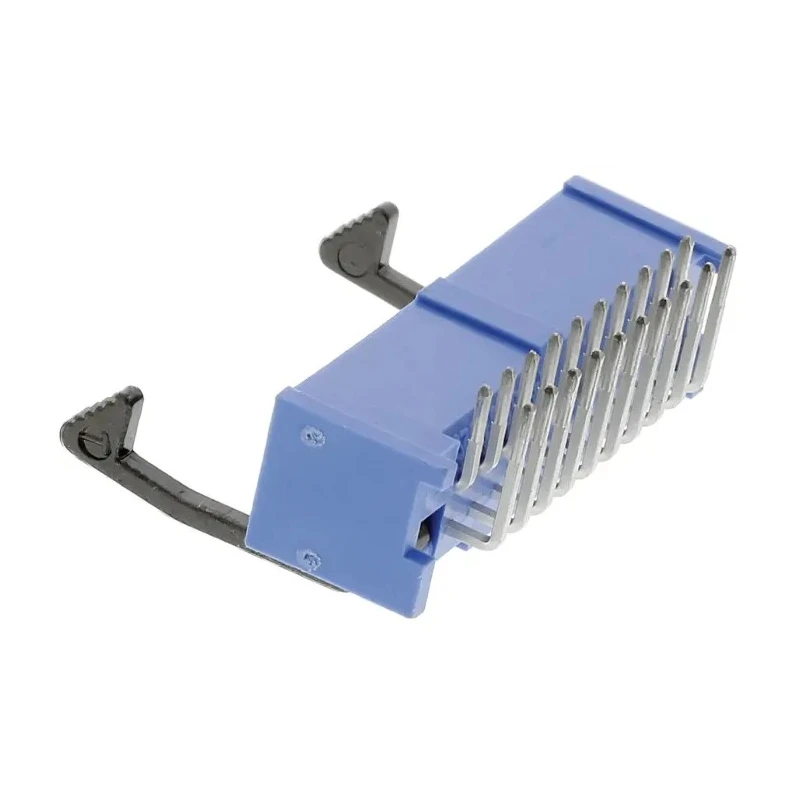

TE Connectivity AMP-LATCH Series PCB Header, Right Angle, 20 Contacts, 2 Row, 2.54 mm Pitch, Shrouded, Through 2-1761607-7

The TE Connectivity AMP-LATCH Series PCB Header model 2-1761607-7 is a precision-engineered connector designed for reliable wire-to-board interfacing in industrial, commercial, and electronic systems. This header features a right angle orientation and supports through hole mounting for robust PCB integration.

Equipped with 20 contacts in 2 shrouded rows and a standard 2.54 mm pitch, it is ideal for interfacing with IDC ribbon cable setups, ensuring secure connections in a broad range of industrial electronics, networking, medical devices, business equipment, and PC boards. Shrouding enhances connection durability and reduces the risk of mating errors.

The contacts are made from phosphor bronze and are gold-plated for optimal conductivity and corrosion resistance, while the housing is composed of polybutylene terephthalate for enhanced mechanical stability and temperature tolerance. Ejector latches provide military and centre polarization, making it easy to firmly mate and remove IDC connectors without strain relief.

Rated at 1A current and 250V voltage, this header supports demanding applications requiring reliable power and signal transmission. It operates safely within a temperature range of -65°C to 105°C, suitable for industrial controls, appliances, electrical testing, storage, and networking hardware.

Solder termination type and male contact gender ensure easy assembly and compatibility with standard PCB manufacturing workflows. Tail pin length of 2.6 mm suits standard board thicknesses and layouts.

The model 2-1761607-7 is part of TE Connectivity's renowned AMP-LATCH Series, known for low-profile designs and extensive applicability in electronics and industrial manufacturing environments.

Reliable wire-to-board connection with AMP-LATCH series header, model 2-1761607-7. Supports 20 contacts arranged in two shrouded rows for secure ribbon cable interfacing. Designed for through hole PCB mounting with right angle orientation.

Rated for 1A current and 250V voltage, suitable for various electronic and industrial applications. Features polybutylene terephthalate housing and gold-plated phosphor bronze contacts. Military and centre polarization along with ejector latches ensure secure and easy mating.

Operational temperature range from -65°C to 105°C. Solder termination for robust connectivity.

Ideal for applications in PCs, medical and business equipment, electrical testing, industrial controls, storage and networking hardware. Explore more TE Connectivity electronic components and PCB Headers in EnvMart's Electronics & Electricals section.
