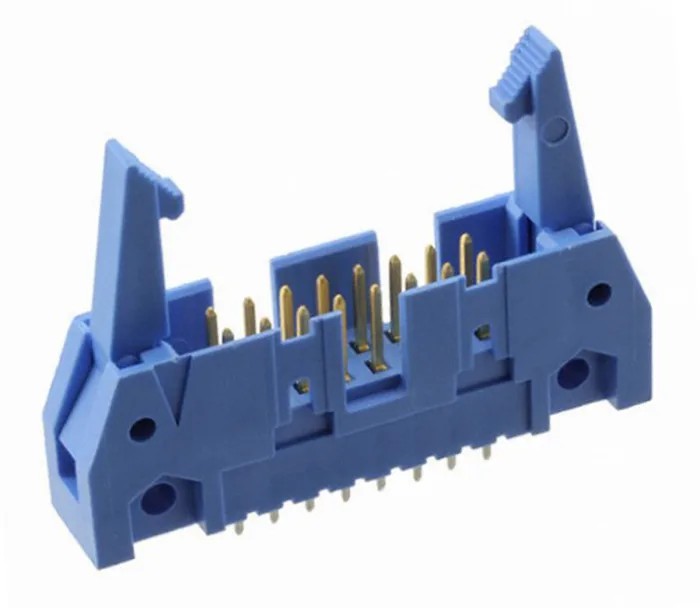

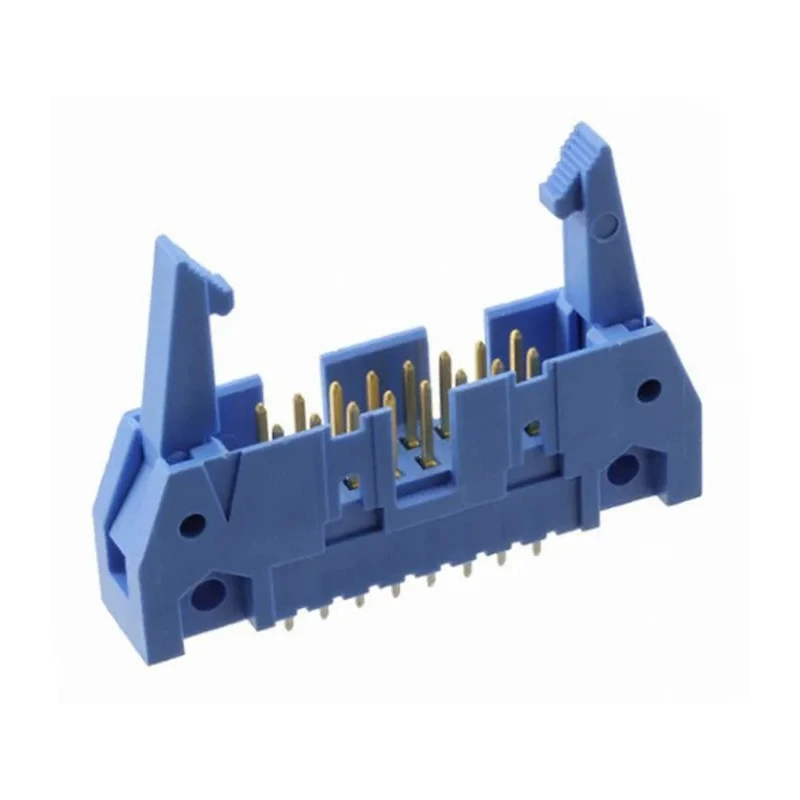

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 2-5499206-3

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header model 2-5499206-3 is a precision-engineered connector designed for reliable wire-to-board interconnection in advanced electronics. With 16 contacts set in 2 rows and a 2.54 mm pitch, this header is tailored for compact PCB applications requiring robust connectivity. The shrouded nylon housing ensures safe insertion and prevents accidental contact or damage, while the ejector latch mechanism simplifies secure mating and convenient separation from IDC ribbon cable receptacles.

The connector utilizes phosphor bronze contacts with gold plating, offering high conductivity and excellent resistance to wear and corrosion. The straight through hole mounting and solder terminations make it suitable for automated assembly and provide strong mechanical anchoring to the PCB. Operating safely within a wide temperature range from -65°C to 105°C, this header is well-suited for both commercial and demanding industrial environments.

Designed for a maximum rated voltage of 250 V and 1 A current, the AMP-LATCH header meets typical requirements for signal transmission and low power applications, including computers, networking devices, medical equipment, business electronics, industrial controls, storage, and electrical test systems. Dual polarization features ensure accurate mating and secure operation, minimizing the risk of misconnection.

Its robust construction, shrouded profile, and precision contact material enable reliable performance even in environments with frequent plug-unplug cycles or vibration.

Ejector latches allow optional strain relief configurations depending on cable mating style, with both long and short latch variations available. The AMP-LATCH universal header is compatible with a range of IDC ribbon cable connectors, providing flexibility for system integrators.

Industrial and Electronics Use Cases: This header is recommended for use in networking equipment, business PCs, medical devices, storage modules, industrial controllers, and appliance interfaces. Its rugged design suits laboratory instrumentation, commercial electronics manufacturing, and electrical testing platforms.
