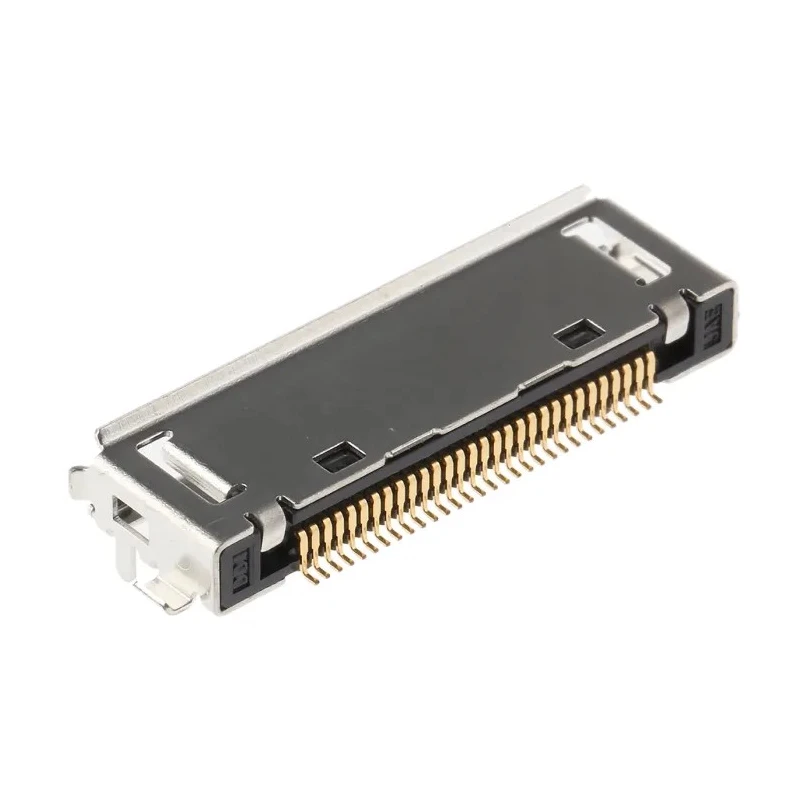

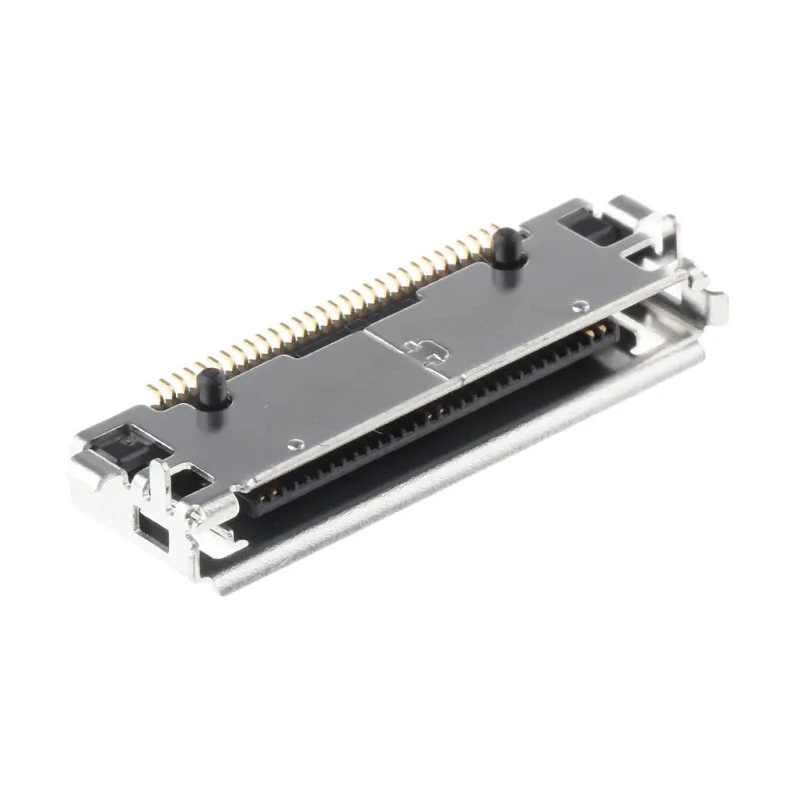

JAE DD1 Series Straight Surface PCB Socket, 30 Contacts, 1 Row, 0.5 mm Pitch, Solder, Surface Mount, 12A, 30V DD1R030HA1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | JAE |
| Orientation | Straight |
| Current | 12A |
| Model | DD1R030HA1 |
| Mount Type | Surface |
| Contact Material | Copper |
| Series | DD1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 75°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | I/O Connectors |
Key Features
- Provides secure wire-to-board connection for electronic assemblies.
- Features 30 contacts in a single row, supporting high-density circuits.
- Surface mount, straight orientation design for efficient PCB layout.
- Gold over nickel plated copper contacts ensure reliable conductivity.
- Rated for 12A current and 30V voltage to accommodate robust applications.
- 0.5 mm pitch allows for compact installation and signal integrity.
- Solder termination ensures strong mechanical and electrical bond.
- Operates from -25°C to 75°C for versatile environments.
Product Description
The JAE DD1R030HA1 is a straight surface PCB Socket from the DD1 Series, designed with 30 contacts arranged in a single row and a fine 0.5 mm pitch. This connector is engineered for wire-to-board applications where reliable electrical connectivity and compact PCB real estate are crucial. It meets demanding standards for industrial electronic assemblies, offering secure solder termination and surface mount installation.
Each contact is made from copper and plated with gold over nickel, ensuring robust performance and excellent signal integrity. The socket conforms to the USB2.0 standard, supporting high-speed data requirements in modern systems. Enhanced twisting resistance and an EMI-preventing secure ground connection promote stable operation, while a hot plug structure allows for convenient receptacle use.
The 12 ampere current handling and 30 volt maximum voltage capability make this connector suitable for a variety of applications, including industrial control boards, laboratory instrumentation, and commercial-grade electronic devices. Its surface mount and straight orientation simplify integration in automated production environments.
With a side-lock plug mechanism that accommodates standard 5.0 mm diameter cables, the DD1R030HA1 offers flexibility for I/O connector systems. It withstands operating temperatures from -25°C to 75°C, offering durability across a range of thermal conditions.
Provides secure wire-to-board connection for electronic assemblies. Features 30 contacts in a single row, supporting high-density circuits. Surface mount, straight orientation design for efficient PCB layout. Gold over nickel plated copper contacts ensure reliable conductivity.
Rated for 12A current and 30V voltage to accommodate robust applications. 0.5 mm pitch allows for compact installation and signal integrity. Solder termination ensures strong mechanical and electrical bond. Operates from -25°C to 75°C for versatile environments.
Common industrial use cases include electronics manufacturing, PCB assembly, automation, research labs, and commercial electronic control boards. Explore JAE's full range of PCB connectors in the EnvMart Electronics Components category for more advanced solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 12A and a maximum voltage of 30V, making it suitable for robust applications.
The contacts in this socket have a pitch of 0.5 mm, allowing for compact installation and efficient PCB layout.
It features 30 contacts arranged in a single row, supporting high-density circuits for electronic assemblies.
This unit uses solder termination, which ensures a strong mechanical and electrical bond for reliable connectivity.
This model has a straight orientation design, which simplifies integration into PCB layouts.
The contacts are made from copper and are plated with gold over nickel to ensure reliable conductivity.
Yes, it conforms to RoHS standards, ensuring it meets environmental regulations for electronic components.
Common applications include industrial control boards, laboratory instrumentation, and commercial-grade electronic devices.
It is categorized as an I/O connector system, suitable for wire-to-board connections.
The country of origin for this model is India.
