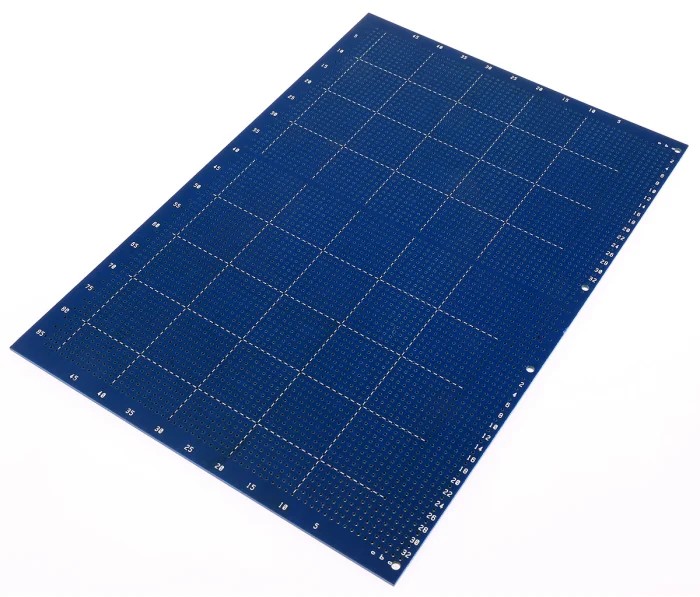

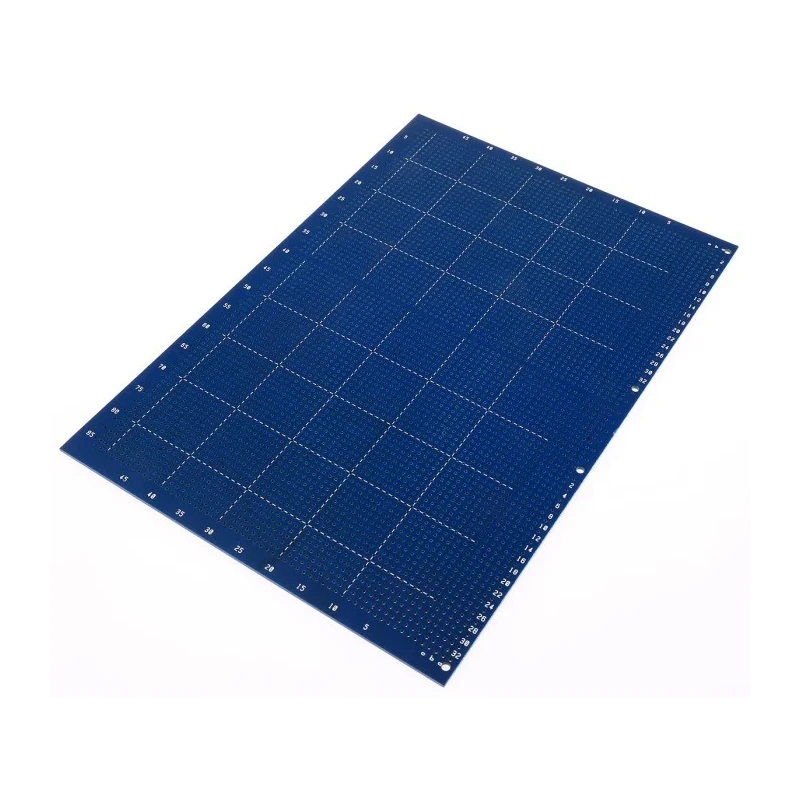

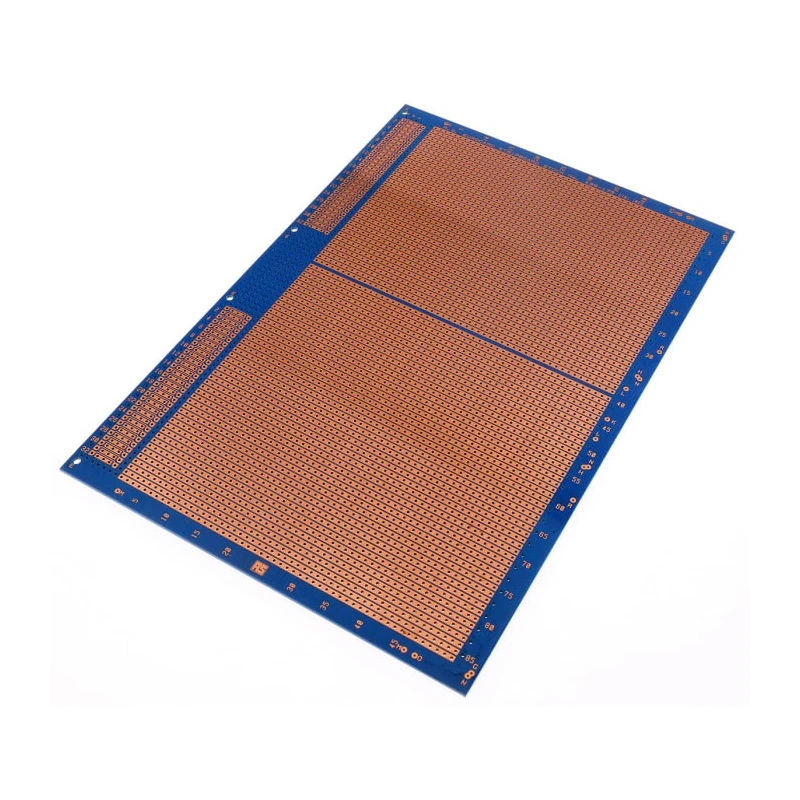

Vero Technologies Stripboard Epoxy Glass Fabric Laminate FR4 233.4mm x 160mm Single-Sided 1.6mm 10-27559

The Vero Technologies 10-27559 Stripboard is engineered for high-density electronic prototyping and circuit development. It features a robust epoxy glass fabric laminate construction with FR4 grade material, providing high durability and excellent electrical insulation. This single-sided stripboard comes with pre-drilled 1mm diameter holes in a 2.54mm matrix, allowing swift and accurate component placement.

With board dimensions of 233.4mm by 160mm and a thickness of 1.6mm, this stripboard offers a spacious area for complex circuits while ensuring structural rigidity. It is DIN type, suitable for use with the KM6-II eurocard sub-rack systems, making it fit for professional microprocessor and high-density screening applications.

The board is designed to accommodate indirect edge connectors compliant with DIN 41612 standards. For enhanced reliability, it includes plated through holes (pth), which directly link top and bottom pads, eliminating the need for manual linking pins. This feature also improves solder joint integrity, creating robust electrical connections across the entire board, particularly important where vibration resistance is critical.

Vero Technologies stripboards are manufactured to the highest standards, using blue epoxy glass material in accordance with BS4584 Part 3 or 16. The copper layer is 305g/m² (1oz/ft²), ensuring efficient signal transmission and grounding as required by circuit design. Eurocards manufactured from this material offer flexibility, compatibility, and screening essential for industrial and laboratory environments.

The single-sided microboard design follows the same wiring pattern as its double-sided counterpart but omits the ground plane and 0 Volt rails on the component side. The 10-27559 model is ideal for circuit prototyping, testing, and educational setups, enabling engineers and professionals to implement reliable and repeatable designs.

This stripboard is widely used across manufacturing, electronics laboratories, R&D departments, and educational institutions. Its compatibility with a variety of connectors and mounting systems makes it a preferred choice for complex project builds. Whether in industrial prototyping or laboratory use, the Vero Technologies 10-27559 stripboard delivers performance and versatility for demanding electronic applications.
