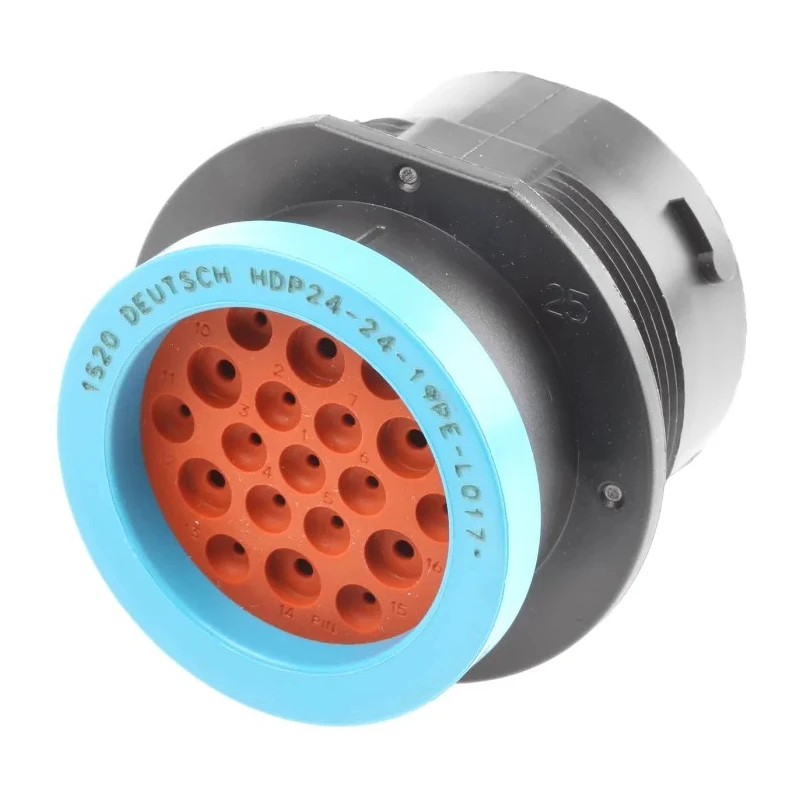

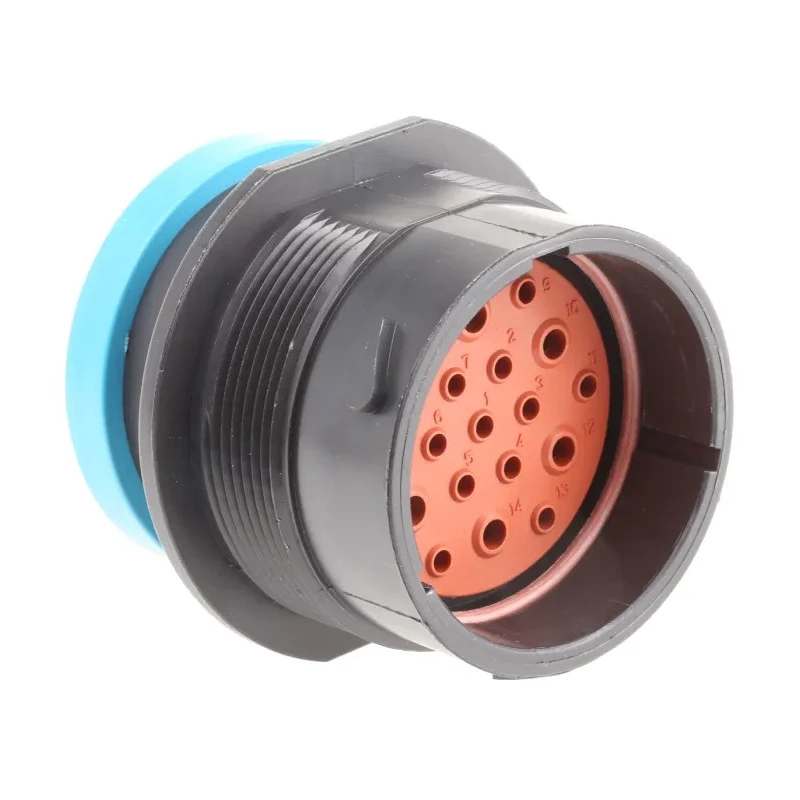

Deutsch Circular Connector 19 Contacts, 2.39 mm, Male, Socket, Cable Mount, IP67, 25A 250V, Crimp HDP24-24-19PE-L017
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Deutsch |
| Orientation | Straight |
| Current | 25A |
| Model | HDP24-24-19PE-L017 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | HD20 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 19 |
| Contact Plating | Nickel |
| Number of Contacts | 19 |
| Contact Gender | Male |
| Shell Size | 24 |
| Mating Type | Bayonet |
| Connector Size | 2.39 mm |
| Plug/Socket | Socket |
| Mating Cycles Minimum | 100 |
Key Features
- Heavy duty thermoplastic housing provides robust resistance to environmental factors.
- Contains 19 male contacts with a contact size of 2.39 mm, supporting up to 25A and 250V operation.
- IP67 rated sealed design against dust and water ingress for reliable performance.
- Crimp termination with straight cable mount and bayonet locking mechanism for secure connection.
- Nickel plated copper contacts offer low contact resistance and corrosion resistance.
- Wide operating temperature range from - 55°C to +125°C for demanding conditions.
- Durable for a minimum of 100 mating cycles and vibration proof up to 20g at 10 - 2000Hz.
- Suitable for industrial, commercial, and heavy vehicle wiring applications where sealed performance is critical.
Product Description
The Deutsch HDP24-24-19PE-L017 is a robust circular connector from the HD20 Series, designed for rigorous industrial and vehicle wiring environments. Featuring a durable thermoplastic housing, this connector contains 19 male contacts with a 2.39 mm contact size, ensuring reliable power and signal transmission under demanding conditions.
This circular connector is engineered for cable mounting and utilizes a straight configuration. The bayonet coupling mechanism allows quick and secure engagement and disengagement, while the crimp termination provides a firm cable attachment. With an IP67 ingress protection rating, the HDP24-24-19PE-L017 offers complete sealing against dust and powerful jets of water, making it ideal for harsh and outdoor applications.
Each contact is rated for up to 25A and 250V, making this connector appropriate for high-current circuits as well as multi-signal assemblies. The contacts are constructed from copper with a nickel finish for excellent conductivity, corrosion resistance, and long service life. The connector’s operating temperature range from - 55°C to +125°C supports use in extreme temperature environments, including automotive, agricultural, construction, and heavy equipment sectors.
Additional features of this model include vibration resistance up to 20g at frequencies between 10 and 2000Hz, corrosion resistance tested for 48 hours under salt spray to MIL STD 1344, and a minimum mating durability of 100 cycles. The bayonet locking system ensures robust interconnection even in environments subjected to shock or vibration.
This Deutsch HD20 Series circular connector is widely used in industrial machinery, off-highway vehicles, commercial trucks, agricultural and mining equipment, and anywhere sealed, reliable, multi-pin connections are required. Applications extend to harsh field terminals, sensor wiring, power distribution, and sealed signal harnesses.
Choose Deutsch connectors for critical applications where durability, environmental sealing, and electrical performance must be assured. For more industrial connectors and wiring accessories, explore the Industrial Circular Connector section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 25A and a voltage rating of 250V, making it suitable for high-current circuits.
It has an IP67 rating, providing complete sealing against dust and water ingress, ensuring reliable performance in harsh environments.
The operating temperature range is from -55°C to +125°C, allowing it to function effectively in extreme conditions.
This connector features 19 male contacts, each with a contact size of 2.39 mm, designed for reliable power and signal transmission.
It utilizes a crimp termination method, ensuring a secure and firm attachment to the cable.
The contacts are made of copper and are nickel plated, providing low contact resistance and corrosion resistance.
This model features a bayonet mating type, allowing for quick and secure engagement and disengagement.
It is designed for a minimum of 100 mating cycles, ensuring durability in repeated use.
The housing is made from heavy-duty thermoplastic, providing robust resistance to environmental factors.
It is suitable for industrial, commercial, and heavy vehicle wiring applications, particularly where sealed performance is critical.
This model is vibration proof up to 20g at frequencies between 10 and 2000Hz, making it suitable for demanding environments.
The connector is designed with a straight orientation for cable mounting.
