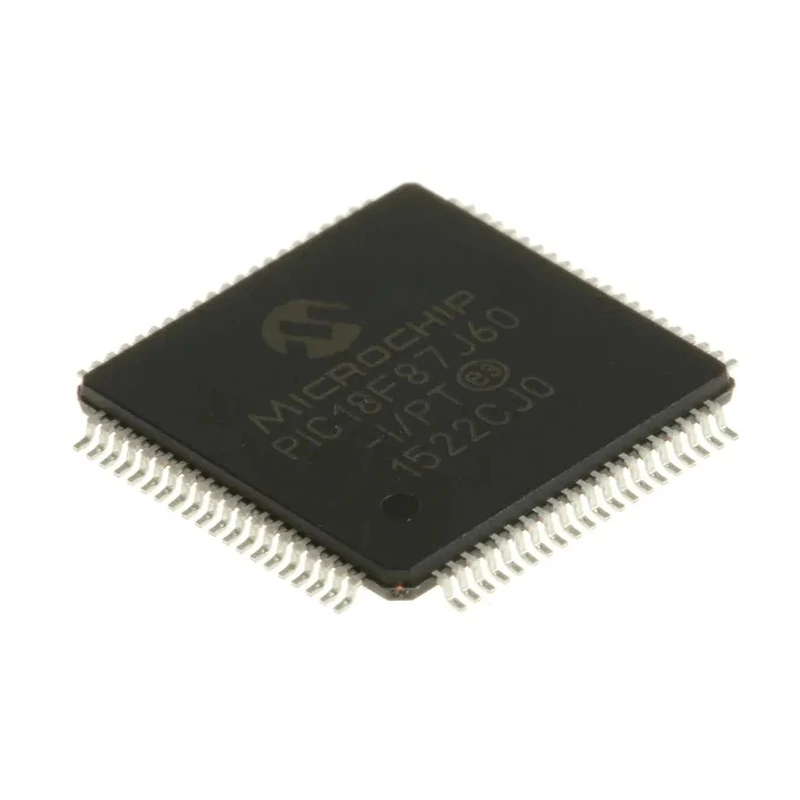

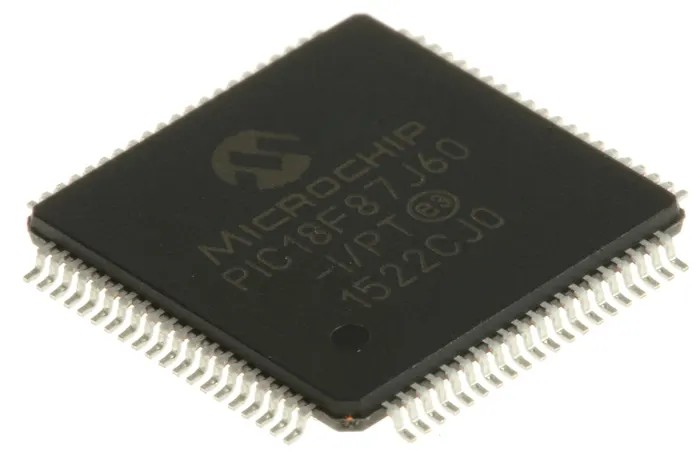

Microchip 8-bit PIC Microcontroller 128kB FLASH 80-Pin TQFP 48MHz Surface Mount PIC18F87J60-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | PIC18F87J60-I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | PIC18F87J60 |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.81kB |
| Pin Count | 80 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 48MHz |
| Number of Programmable I/Os | 55 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 128kB |
| Number of Timers | 5 |
| Instruction Set Architecture | C |
| ADCs | 15 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- High-performance 8-bit PIC microcontroller ideal for embedded applications.
- 128kB FLASH program memory and 3.81kB RAM for efficient code storage and execution.
- Operates at up to 48MHz for rapid real-time processing.
- Surface mount 80-pin TQFP package enables dense, compact designs.
- Offers 55 programmable I/O lines and 15 high-precision 10-bit ADC channels.
- Supports wide voltage input from 2V to 3.6V for system integration.
- Built-in timers and analogue comparators facilitate advanced control.
- Commercial operating temperature range from -40°C to 85°C.
Product Description
The Microchip PIC18F87J60-I/PT is a high-performance 8-bit PIC microcontroller engineered for demanding embedded applications. Housed in a compact 80-pin TQFP surface mount package, this device provides powerful features that enable flexible design and integration into a variety of industrial, automotive, and consumer systems.
This model incorporates 128kB of FLASH program memory, allowing for storage of both large codebases and sophisticated application firmware. Complemented by 3.81kB of on-chip RAM, the microcontroller can efficiently handle data operations, buffering, and multitasking as required by modern applications.
One of its standout capabilities is the maximum clock frequency of 48MHz, which ensures fast real-time processing for time-critical systems. The 8-bit data bus width coupled with a robust PIC core architecture delivers compatibility for legacy and next-generation code, supporting development using the 'C' instruction set architecture.
The PIC18F87J60-I/PT is well-suited for complex I/O arrangements, offering 80 package pins with a remarkable 55 programmable digital I/O lines. Integration is further enhanced by 15 analog-to-digital converter channels, each providing 10-bit resolution for precise analog signal monitoring. Two built-in analogue comparators and five versatile timers expand the control and measurement capabilities of this microcontroller.
The device is designed for stability across a broad operational envelope, with input voltage support from 2V to 3.6V, power dissipation up to 1W, and a reliable operating range from -40°C to 85°C. The TQFP package, with a 12mm x 12mm footprint and 1.05mm profile, makes this component ideal for space-constrained printed circuit board layouts.
Other technical highlights include a program memory type of FLASH for non-volatile operation, a maximum expandable memory size of 128kB, and a flexible surface mount form factor for streamlined automated assembly. With automotive and industrial applicability, this microcontroller meets stringent reliability and performance needs.
Typical use cases include complex industrial control assemblies, networked sensor arrays, process automation, automotive subsystems, and intelligent consumer devices. The rich feature set ensures adaptability for prototyping as well as large-scale production environments.
Explore Microchip's extensive range of PIC Microcontrollers in industrial, automation, and electronics categories available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC18F87J60-I/PT operates at a maximum clock frequency of 48MHz, enabling fast real-time processing for applications.
This model features a program memory size of 128kB, allowing for substantial code storage and execution capabilities.
It offers 55 programmable digital I/O lines, facilitating complex I/O arrangements in embedded applications.
The operating temperature range for the PIC18F87J60-I/PT is from -40°C to 85°C, making it suitable for various environments.
It is housed in an 80-pin TQFP (Thin Quad Flat Package), which is ideal for compact designs.
This microcontroller includes 3.81kB of RAM, which supports efficient data handling and multitasking.
The device features 15 analog-to-digital converter channels, each providing 10-bit resolution for accurate signal monitoring.
The PIC18F87J60-I/PT supports a minimum supply voltage of 2V and a maximum of 3.6V for system integration.
This model includes five built-in timers, enhancing its control and measurement capabilities.
It utilizes FLASH memory for non-volatile operation, allowing for the storage of large codebases and firmware.
The TQFP package has a height of 1.05mm and a footprint of 12mm x 12mm, making it suitable for space-constrained designs.
This microcontroller is based on the PIC core architecture, supporting development using the 'C' instruction set architecture.
