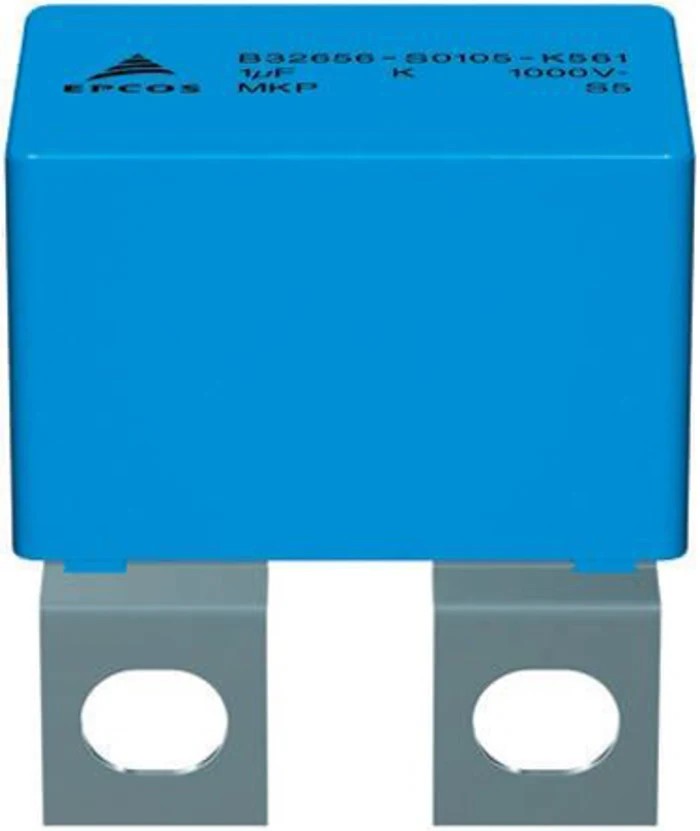

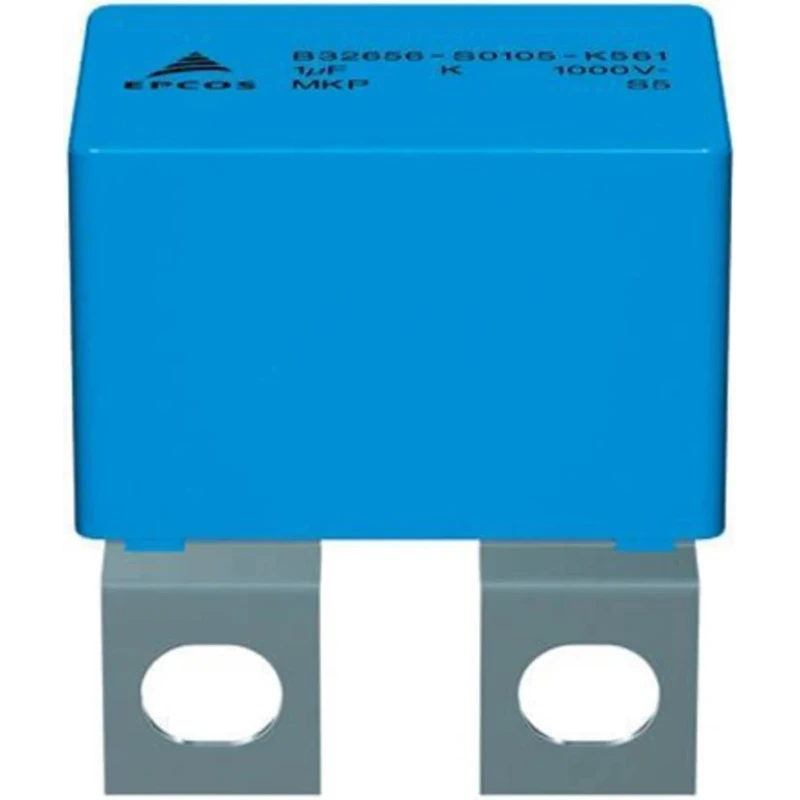

TDK Film Capacitor 680 nF, 480V AC, 1kV DC, Tab Mount, High Pulse, Plastic Case B32656S0684J564

The TDK B32656S0684J564 is a high-quality film capacitor engineered to provide dependable capacitance and electrical performance in demanding electronic and industrial applications. With a nominal capacitance of 680 nF, this device is ideal for AC filtering, pulse applications, and DC link use in power electronics, automotive modules, and general industrial equipment.

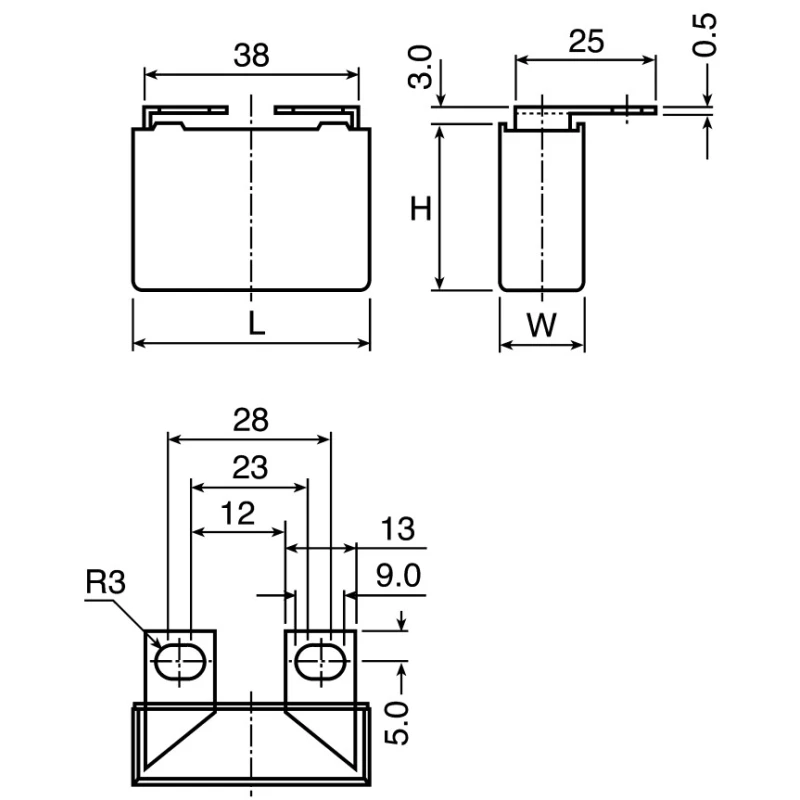

Built to withstand a rated AC voltage of 480V and a DC voltage up to 1 kV, this film capacitor assures robust circuit protection and reliability even under high-stress operating conditions. The tab mount configuration facilitates a secure and efficient electrical connection during assembly, while the compact body - measuring just 42mm in length, 16mm in width, and 28.5mm in height - enables space-saving integration into densely populated boards.

This model features high pulse strength and very low internal inductance, optimizing its operation in circuits that demand stable, high-frequency performance. Its construction includes a plastic case and epoxy resin sealing, rated for UL 94 V-0, which enhances both mechanical protection and flame resistance, making it suitable for safety-conscious applications. Internal wound capacitor technology with series connection further improves its pulse-handling and long-term reliability.

Designed for future-ready automotive and industrial markets, the B32656S0684J564 satisfies AEC-Q200 Rev D automotive standards, ensuring suitability for use in automotive electrical modules and harsh environments. The capacitor is rated to operate up to 100°C, making it appropriate for high-temperature installations found in power electronics cabinets, industrial control panels, and renewable energy converters.

Engineers and designers will benefit from its blend of safety, reliability, and compactness, making it a strong choice for both design-in and retrofit projects requiring robust film capacitors.

Industrial and application areas include power supplies, DC link circuits, AC filters, automotive systems, industrial automation, and demanding commercial electronic assemblies. For more film capacitor choices, explore the complete range in the Film Capacitors category or discover other TDK capacitor families for optimized designs.
