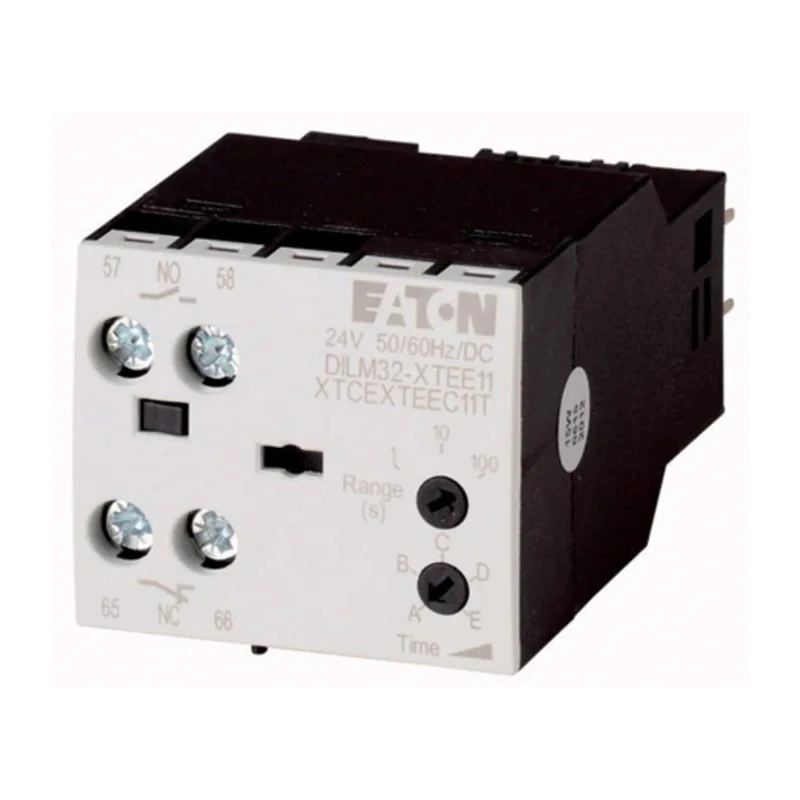

Eaton DILM Contactor Timer for DILM and DILA, On-Delay/Off-Delay/S/D, Top-Mounted, 104945 DILM32-XTED11-10(RAC240)

Eaton’s model 104945 DILM32-XTED11-10(RAC240) is a precision electronic timer accessory engineered for use with DILM contactors and DILA relays. It combines on-delay, off-delay, and S/D timing functions to meet diverse industrial automation requirements in control panels and machinery.

This timer is intended for top mounting on the X-Start range of contactors from DILM7 to DILM32, as well as DILA relays. Installation convenience and secure fit ensure dependable timing actions for motor starting and switching operations.

The accessory features 1 normally open (NO) and 1 normally closed (NC) contact for flexible integration with control logic. It cannot be combined simultaneously with other top-mounted modules, preserving operational integrity and simplifying wiring arrangements.

Eaton’s robust build and trusted design make it suitable for demanding manufacturing environments, HVAC control, equipment automation, and electrical distribution networks. Automated timer control supports improved efficiency, safety, and repeatability in circuit operations.

Applications include industrial automation panels, machinery control circuits, process control systems, and building electrical installations requiring accurate timed switching. The DILM series is known for its reliable performance, ease of integration, and durable construction.

Country of origin for this specific model is Germany, indicating adherence to high European manufacturing standards. Package includes the electronic timer and auxiliary contacts. Designed for top mounting on DILM contactors and DILA relays.

Provides on-delay, off-delay, and S/D timing functions. Equipped with 1 NO and 1 NC contacts for versatile control. Cannot be combined with other top-mounted modules. Suitable for industrial automation, machinery, and HVAC control panels.

Engineered by Eaton, this contactor timer accessory offers a robust solution for time-controlled switching needs. Explore more Eaton relay and contactor accessories in the Contactor Accessories category on EnvMart.
