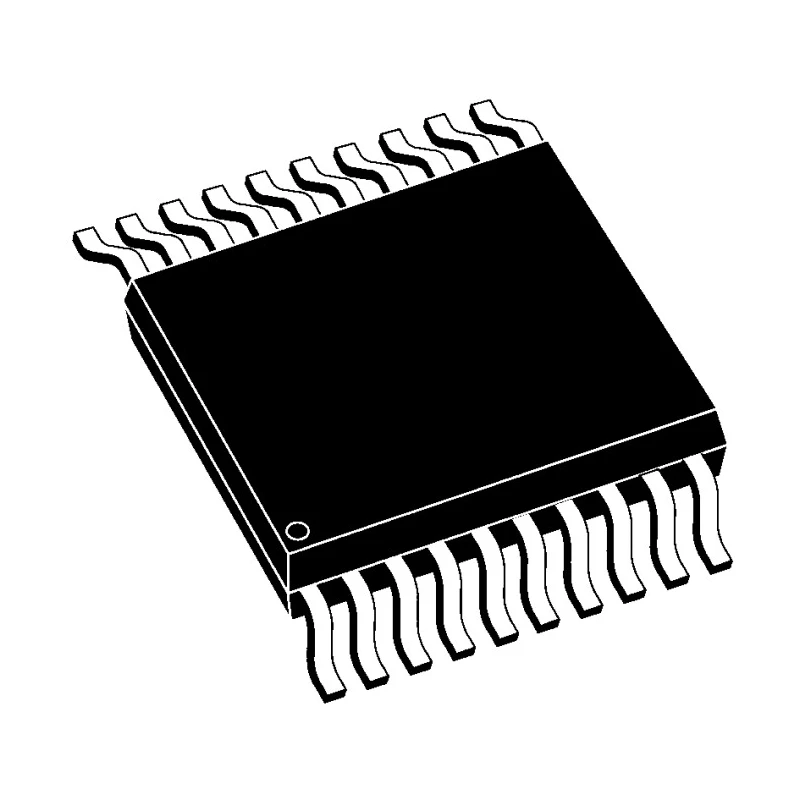

Microchip 8-bit PIC Microcontroller, 64 MHz, 7kB Flash, SSOP, Surface Mount, 20-Pin, PIC16F685-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Length | 7.5mm |
| Model | PIC16F685-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC16F685 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 18 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Features a high-performance 8-bit PIC architecture for flexible embedded applications.
- Includes 7kB of Flash program memory for reliable code storage.
- Operates at a maximum clock frequency of 64 MHz for quick processing.
- Supplied in a compact SSOP package for space-efficient PCB integration.
- Designed for surface mounting with a 20-pin configuration.
- Supports 256 bytes RAM and 12-channel 10-bit ADC for advanced peripheral control.
- Operating voltage range from 1.8V to 5.5V, and temperature range from -40°C to 85°C.
- Equipped with 18 programmable I/Os and multiple timers for project versatility.
Product Description
Microchip PIC16F685-I/SS is a compact and powerful 8-bit PIC microcontroller, tailored for embedded control applications in industrial, consumer, automotive, and laboratory electronics. Combining robust performance and versatile features, this device supports high-frequency operation up to 64 MHz and integrates 7kB Flash program memory, allowing efficient storage and execution of code for intricate tasks.
The SSOP (Shrink Small Outline Package) provides a 20-pin surface mount configuration, ensuring ease of integration in modern printed circuit board designs where footprint and space management are critical. Its mid-range core architecture delivers fast and reliable operation, backed by programmable RAM capacity up to 256 bytes and a configurable oscillator factory calibrated to ±1% accuracy.
With wide-ranging peripheral support, the PIC16F685-I/SS includes up to 12-channel 10-bit analogue-to-digital converters (ADCs), 1 x 5-bit DAC, and 2 analogue comparators, serving both signal acquisition and processing in real-time. It offers upgraded timer capabilities (3 timers), capture/compare/PWM modules, and an instruction set architecture based on RISC for streamlined code execution.
This microcontroller features a broad operational voltage window from 1.8V to 5.5V and temperature resilience from -40°C to 85°C, making it suitable for harsh environments. Multiple power-up and brown-out reset safety functions deliver reliable system startup and operation. The 18 programmable I/O pins provide versatile connectivity for sensors, actuators, or serial interfaces in complex electronic systems.
Key industrial applications include automation, instrumentation, portable device management, laboratory equipment, data acquisition systems, automotive sensor interfaces, and commercial electronics requiring precise control and efficient data processing.
RoHS compliance assures eco-friendly manufacture, while the included In-Circuit Serial Programming enables straightforward firmware updates and development. The device’s dimensions (7.5mm length, 5.6mm width, 1.85mm height) suit miniaturized assemblies and efficient layouts.
Explore more Microcontrollers from Microchip or browse advanced semiconductor components in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz, allowing for quick processing of tasks.
It features 7 kB of Flash program memory, providing reliable code storage for embedded applications.
This microcontroller has dimensions of 7.5 mm in length, 5.6 mm in width, and 1.85 mm in height, suitable for compact PCB designs.
The operating voltage range is from 1.8V to 5.5V, accommodating various power supply configurations.
It is equipped with 18 programmable I/O pins, allowing versatile connectivity for various applications.
The device supports 12-channel 10-bit analogue-to-digital converters (ADCs) for advanced signal processing.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
This model is supplied in an SSOP (Shrink Small Outline Package) configuration, designed for surface mounting.
The PIC16F685-I/SS includes 3 timers, enhancing its capabilities for various timing applications.
It is RoHS compliant, ensuring eco-friendly manufacturing practices.
The maximum power dissipation for the PIC16F685-I/SS is 800 mW, which is important for thermal management in applications.
It uses a RISC (Reduced Instruction Set Computing) architecture, which streamlines code execution for efficient performance.
