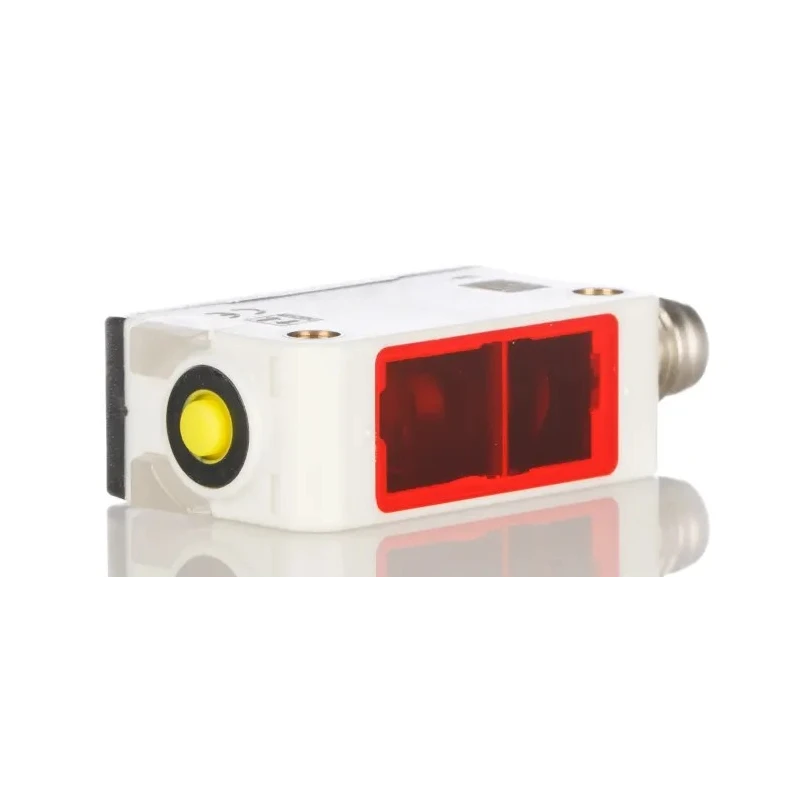

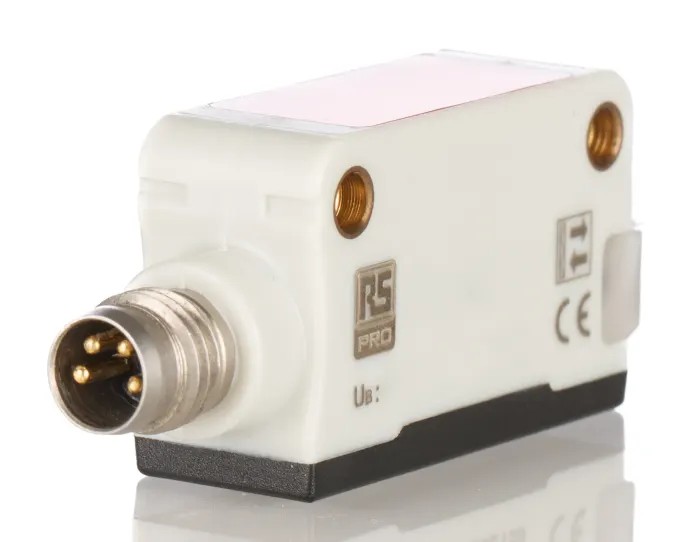

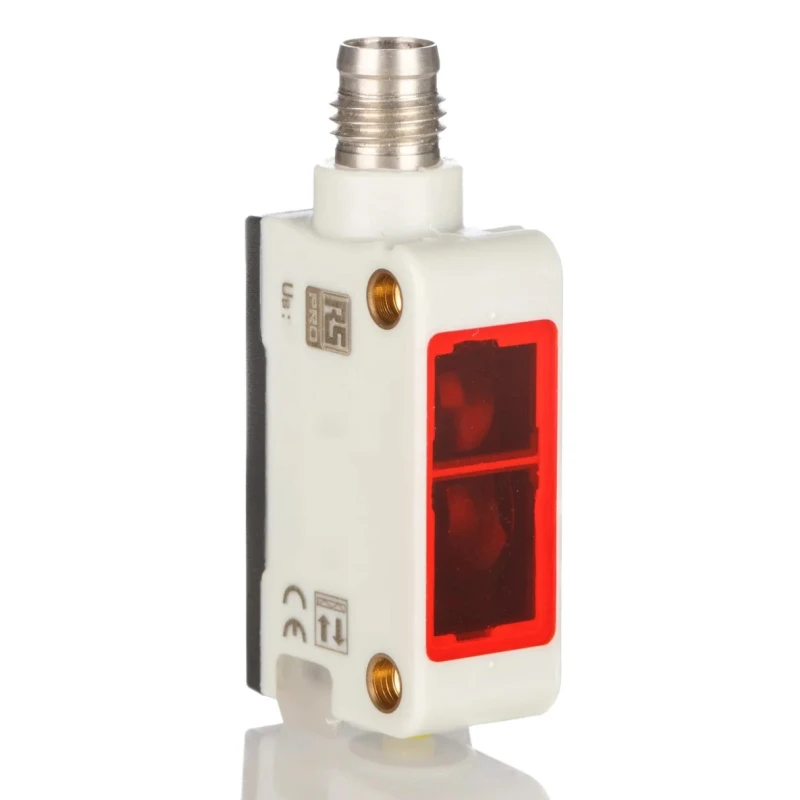

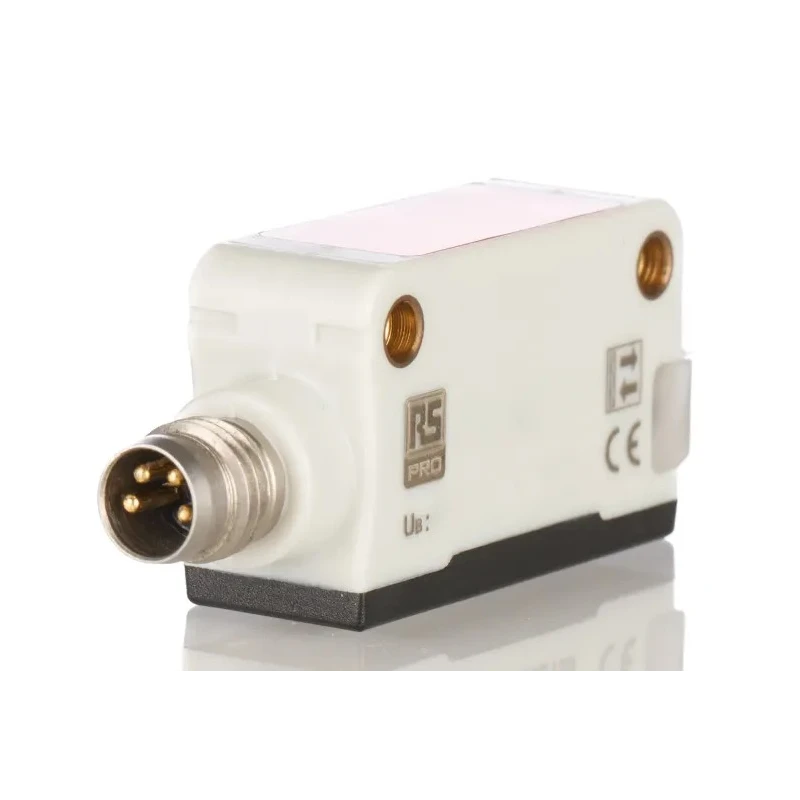

RS PRO Diffuse Reflection Photoelectric Sensor, Block Style, 0.3 m Detection Range, PNP NO/NC Output, M8 Connector IP67
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 0.5ms |
| Light Source | Red Light |
| Detection range | 0.3 m |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Bracket, Screw |
| Housing Material | ABS, Polycarbonate |
| Electrical Connection | PVC cable or M8 Connector |
| Output type | PNP NO/NC |
| Series | PSE |
| Maximum Operating Temperature | 55°C |
| Note | Emitter and receiver should be used in pairs |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 200mA |
| DetectIon Type | Diffuse Reflection |
| Terminal type | M8 Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Sensor Style | Block |
Key Features
- Offers reliable diffuse reflection detection for precise object sensing in automation systems.
- Features block sensor housing with universal mounting for flexible installation.
- Provides both NO and NC switchable PNP output options, suitable for various control setups.
- M8 connector interface allows quick, secure electrical connection in industrial environments.
- IP67 ingress protection rating ensures rugged performance in harsh and damp conditions.
- Operates with a maximum DC voltage of 30V and supports up to 200 mA current.
- ABS and polycarbonate housing delivers durable construction and resistance to impacts.
- Fast 0.5 ms response time for real-time object presence detection.
Product Description
RS PRO's IP67 Diffuse Reflection Photoelectric Sensor, model IP67, is a high-performance industrial sensor engineered for reliable non-contact object detection. Designed in a compact block form factor with robust ABS and polycarbonate housing, this sensor is suited for a wide range of automation and material handling applications, including conveyors and manufacturing lines.
Featuring a 0.3 m diffuse reflection sensing range, the sensor detects objects by emitting a red light beam that is reflected back from the target. Its universal block style and bracket or screw mount options allow seamless integration into machinery and control panels. Electrical connection is made easy via a standard M8 connector, ensuring quick and secure interface with controllers or PLCs.
The photoelectric sensor supports both PNP NO (normally open) and NC (normally closed) outputs, which can be switched to accommodate different signal requirements. Operating at a maximum DC voltage of 30V and handling up to 200 mA, it's tailored for industrial use.
Safety and durability are evident in its IP67 rating, which guarantees protection against dust and temporary immersion in water, making it suitable for harsh environments. The fast response time of 0.5 ms ensures rapid detection in high-speed automation processes. The sensor operates within a wide temperature range, from -25°C to 55°C, enabling deployment in various climates and locations.
Industrial applications include conveyor presence detection, object counting, machine engineering, pharmaceutical manufacturing, automotive lines, elevators, and doors. Its universal housing allows compatibility with a range of sensor types and simplifies replacement or upgrades in existing systems.
Other technical highlights include a red light source for reliable sensing, easy one-click distance setting, and the ability to detect high-light and some transparent objects. The housing material, ABS and polycarbonate, ensures mechanical strength and long service life.
Explore more sensors in the EnvMart Photoelectric Sensor category, or browse RS PRO products for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this photoelectric sensor is 0.3 meters, allowing it to effectively sense objects within that distance.
This model offers switchable PNP outputs, specifically normally open (NO) and normally closed (NC) options, suitable for various control setups.
The maximum operating voltage for this sensor is 30V DC, making it suitable for a variety of industrial applications.
The response time of this photoelectric sensor is 0.5 milliseconds, ensuring quick detection of object presence.
The housing of this unit is made from ABS and polycarbonate, providing mechanical strength and resistance to impacts.
Electrical connection is made via an M8 connector or PVC cable, allowing for quick and secure integration into systems.

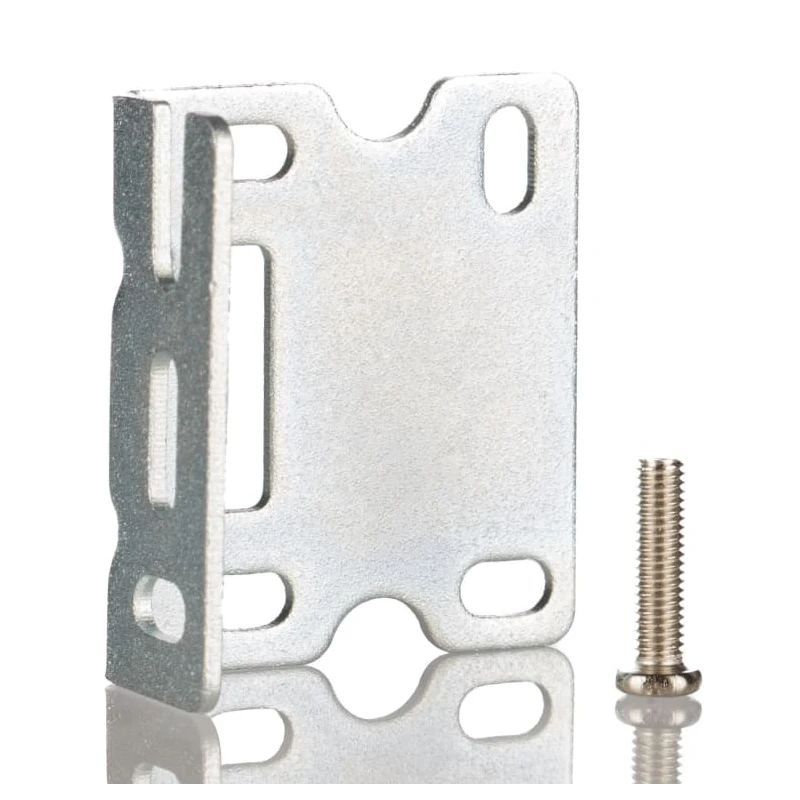

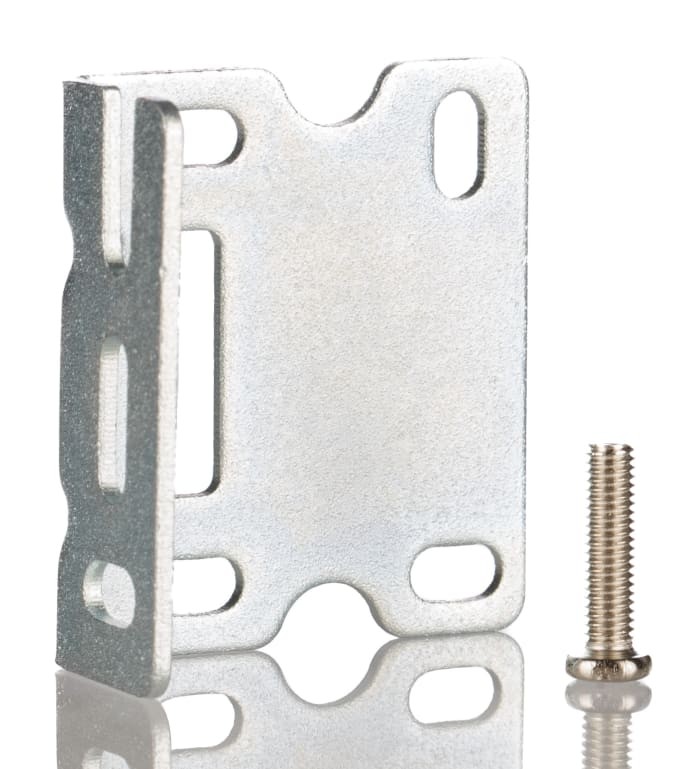

This sensor can be mounted using either bracket or screw mount options, facilitating flexible installation in various environments.
This model operates within a temperature range of -25°C to 55°C, allowing for deployment in diverse climates.
The sensor has an IP67 rating, ensuring protection against dust and temporary immersion in water, suitable for harsh environments.
This sensor is suitable for applications such as conveyor presence detection, object counting, and use in manufacturing lines and elevators.
The sensor uses a red light source for reliable diffuse reflection detection of objects.
Yes, this model complies with CE standards, ensuring it meets specific safety and performance requirements.
