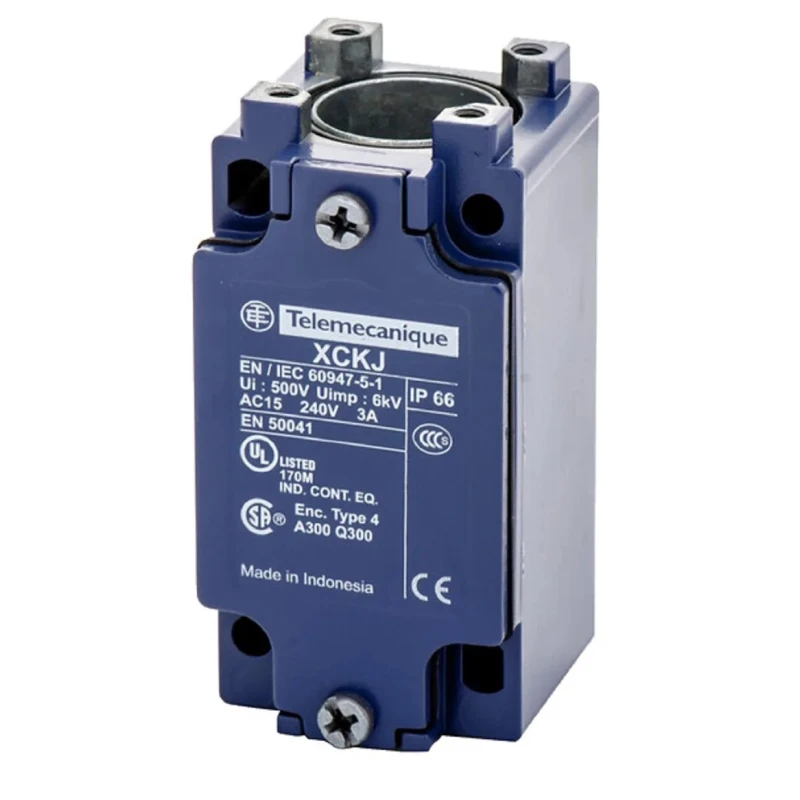

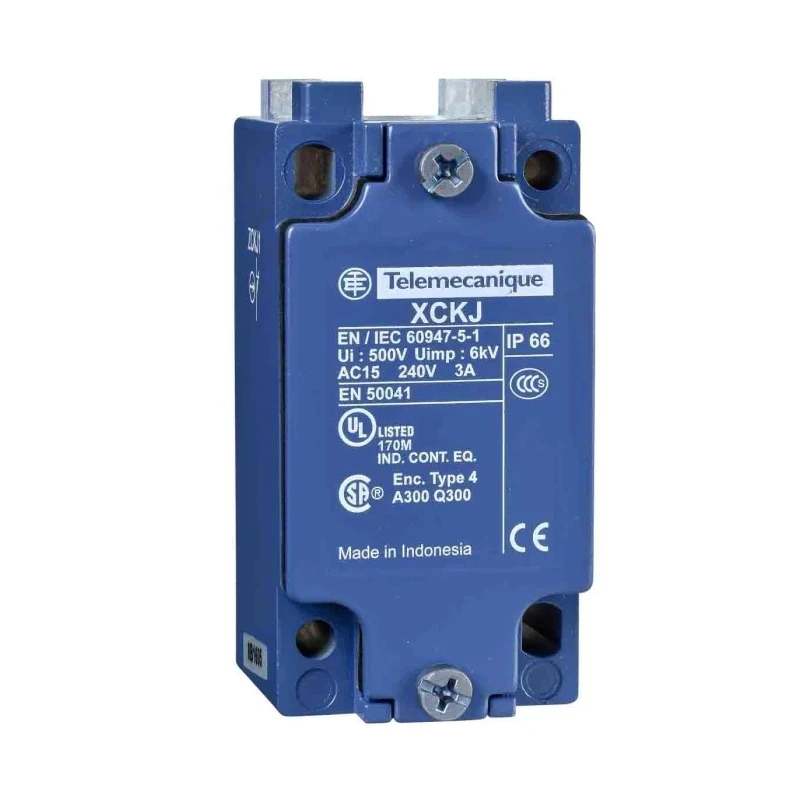

Telemecanique Sensors Limit Switch Body 2 NO 1 NC IP66 Metal Housing 240V AC 1.5A
Specifications
| Country of Origin | France |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 77mm |
| Model | IP66 |
| Depth | 44mm |
| IP Rating | IP66 |
| Width | 40mm |
| Housing Material | Metal |
| Series | ZCKJ |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 2 NO/1 NC |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1.5A |
| Terminal type | Screw Clamp |
| Standards/Approvals | RoHS |
| Mechanical Life | 5000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
Key Features
- Features a durable metal housing with IP66 rating for superior ingress protection.
- Offers a contact configuration of 2 normally open and 1 normally closed contacts for flexible control logic.
- Snap-action contacts ensure quick and reliable state changes in automation systems.
- Suitable for switching currents up to 1.5A at 240V AC or 250V DC, supporting industrial and commercial installations.
- Screw clamp terminals provide secure and straightforward electrical connections.
- Integrates M20 conduit entry for standard cable gland installation.
- Withstands extreme environments, operating from -25°C to 70°C.
- Mechanical life rated at 5,000,000 cycles for long-lasting performance.
Product Description
The Telemecanique Sensors ZCKJD31H29 is a high-integrity limit switch body engineered for rigorous industrial automation and machinery safety applications. Designed with a robust metal housing and rated IP66 for ingress protection, this device excels in harsh environments where both dust resistance and water jet protection are essential.
The ZCKJD31H29 features a versatile contact arrangement consisting of two normally open (NO) and one normally closed (NC) snap-action contacts. This configuration allows for flexible circuit design and reliably supports complex control logic, common in process automation, conveyor systems, and machinery safety feedback loops.
Supporting a maximum switching current of 1.5A at 240V AC or 250V DC, this model is equipped to handle a range of low-voltage switching duties. Its snap-action mechanism ensures rapid and repeatable contact transitions with minimal wear, maintaining circuit integrity under repeated actuation.
Installation and field maintenance are streamlined thanks to accessible screw clamp terminals, which guarantee reliable conductor retention and easy wiring. The unit comes with an M20 conduit entry, simplifying integration with industry-standard cable glands and further enhancing suitability for sealed enclosure environments.
Optimized for challenging conditions, the ZCKJD31H29 operates reliably across ambient temperatures from -25°C to 70°C. With a rated mechanical life of up to 5,000,000 operating cycles, the switch body is ideal for high-demand service such as conveyor end-of-travel detection, press machinery, actuator position feedback, and enclosure safety interlocks.
Its compliance with RoHS standards ensures environmentally responsible construction and makes it an excellent choice for OEMs, maintenance teams, and automation engineers seeking a proven solution for limit and position sensing in manufacturing, packaging, and process industries. The compact, robust form factor promotes easy panel mounting in both new and retrofit applications.
Explore more Telemecanique Sensors products and related Limit Switches in the EnvMart catalog for diverse industrial automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a contact configuration of 2 normally open (NO) and 1 normally closed (NC) contacts, allowing for flexible control logic in automation systems.
This model supports a maximum switching current of 1.5A at 240V AC or 250V DC, making it suitable for various low-voltage applications.
The dimensions of the limit switch body are 77mm in length, 40mm in width, and 44mm in depth.
It has an IP66 rating, providing superior ingress protection against dust and water jets.
It is equipped with screw clamp terminals, which ensure secure and straightforward electrical connections.
This limit switch operates reliably in ambient temperatures ranging from -25°C to 70°C.
The mechanical life of this switch is rated at up to 5,000,000 cycles, ensuring long-lasting performance in demanding applications.
The housing is made of metal, providing durability and robustness for industrial environments.
It integrates an M20 conduit entry, facilitating standard cable gland installation for easy integration.
Yes, it complies with RoHS standards, ensuring environmentally responsible construction.
It is suitable for various applications including conveyor end-of-travel detection, press machinery, actuator position feedback, and enclosure safety interlocks.
This model belongs to the ZCKJ series of Telemecanique Sensors limit switches.
