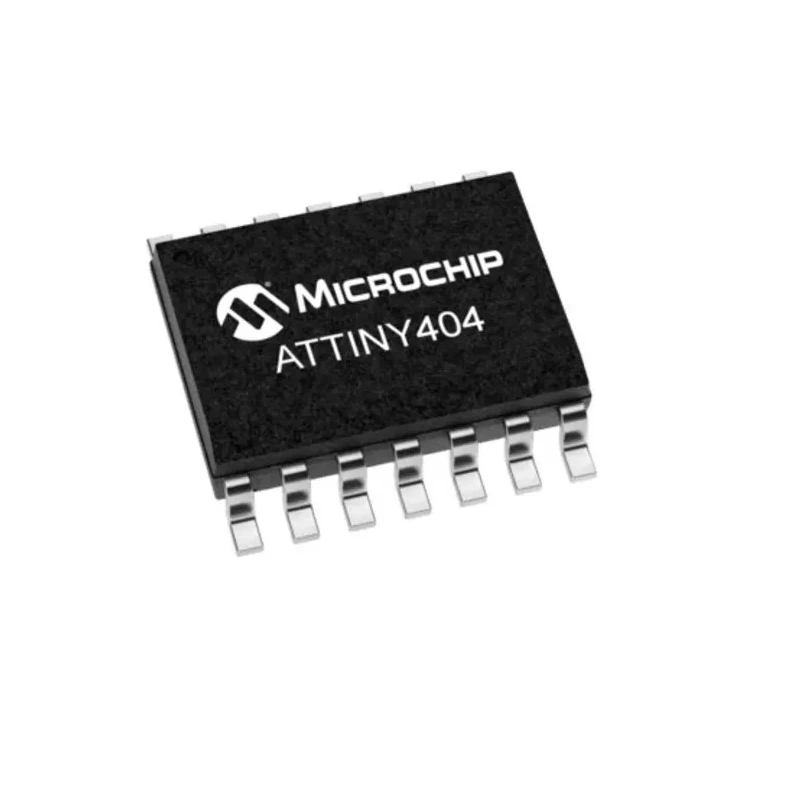

Microchip 8-bit AVR Microcontroller 20MHz 4kB Flash 14-Pin SOIC ATTINY404
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.74mm |
| Model | ATTINY404 |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | ATTINY404 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 4kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 1 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
| Operation Voltage | 1.8V - 5.5V |
| Cyclical Redundancy Check | CRC/SCAN |
Key Features
- Features an 8-bit AVR RISC CPU running at up to 20MHz for efficient processing.
- Includes 4kB Flash program memory, 256 bytes of SRAM, and 128 bytes of EEPROM.
- Supports up to 12 programmable I/Os for flexible interfacing.
- Offers a wide operating voltage range from 1.8V to 5.5V for various embedded applications.
- Compact 14-pin SOIC surface mount package suitable for space-constrained designs.
- Equipped with advanced peripherals, including 10 x 10-bit ADCs and 2 timers.
- Provides multiple sleep modes and built-in power saving functionalities.
Product Description
The Microchip ATTINY404-SSN is a high-performance 8-bit AVR microcontroller engineered for embedded and general-purpose control applications. Designed in a 14-pin SOIC surface mount package, this microcontroller operates at frequencies up to 20MHz, delivering reliable and efficient processing power for a range of industrial and commercial scenarios.
With 4kB of onboard Flash memory, 256 bytes of SRAM, and 128 bytes of EEPROM, the ATTINY404 enables secure code storage and versatile data handling. Its AVR RISC architecture, combined with a hardware multiplier and a comprehensive set of 135 instructions, supports fast and flexible execution in embedded tasks. The device is equipped with 12 programmable I/O lines, ensuring compatibility for custom hardware configurations.
The ATTINY404 supports a broad operating voltage from 1.8V to 5.5V, making it adaptable in both modern low-power designs and traditional 5V systems. Multiple power management sleep modes such as idle, standby, and power-down help reduce consumption when processing demands are low. Key analog peripherals include 10-channel 10-bit ADCs with voltage reference, a comparator, as well as two 16-bit timers for precise timing and event management functionalities.
Robust safety features such as Power-On Reset (POR), Brown-Out Detection (BOD), a Watchdog Timer (WDT), and Cyclical Redundancy Check (CRC/SCAN) are built-in, ensuring consistent operation and data integrity. Programming and debugging are streamlined via a single-pin Unified Program and Debug Interface (UPDI), enhancing workflow efficiency for developers.
Physically, the component features a compact 8.74mm × 3.9mm × 1.5mm form factor, suitable for densely populated PCBs. It is compatible with industrial standards, including RoHS compliance, and operates across a temperature range from - 40°C to 125°C.
Common application areas include industrial controls, instrumentation, consumer electronics, and laboratory equipment, where reliable performance, programmable interfaces, and low power consumption are paramount.
Selecting the Microchip ATTINY404-SSN ensures access to a versatile, robust, and compact microcontroller ideally suited for demanding industrial, automation, and embedded electronic solutions.
Explore comparable microcontrollers and other embedded control solutions in the Microcontroller category on EnvMart to find the right product for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this microcontroller is 20MHz.
It features a program memory size of 4kB Flash.
The operating voltage range is from 1.8V to 5.5V.
This microcontroller supports up to 12 programmable I/O lines.
It comes in a compact 14-pin SOIC surface mount package.
The dimensions are 8.74mm in length, 3.9mm in width, and 1.5mm in height.
It includes two 16-bit timers for precise timing and event management.
The operating temperature range is from -40°C to 125°C.
Yes, it includes safety features such as Power-On Reset (POR), Brown-Out Detection (BOD), and a Watchdog Timer (WDT).
It features 10-channel 10-bit ADCs and a comparator as its key analog peripherals.
The core architecture is based on the AVR RISC instruction set.
Yes, it is RoHS compliant.
