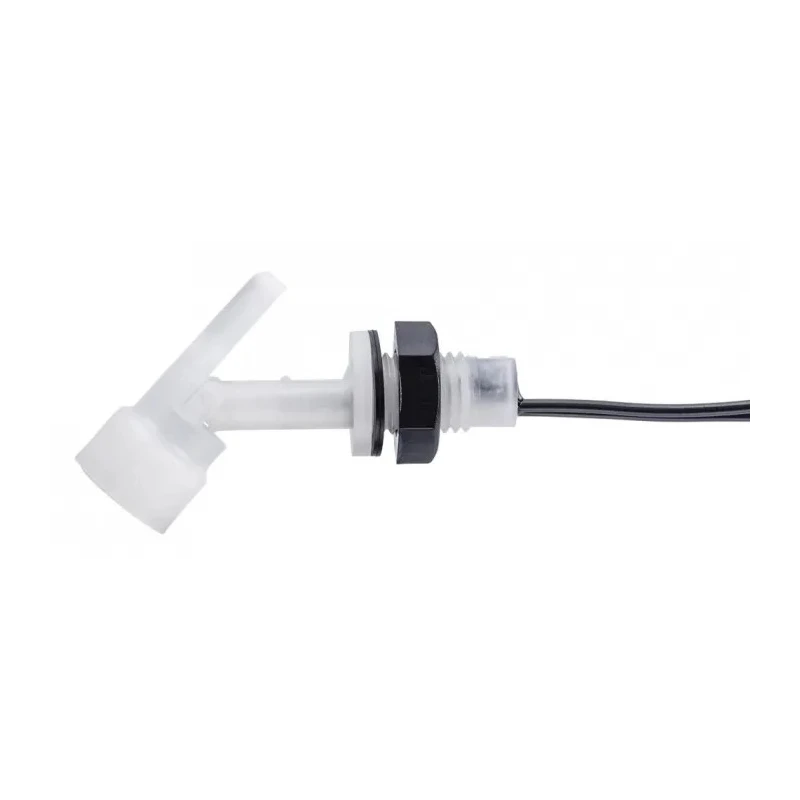

RS PRO LLF40 Threaded Nitrile Rubber (NBR) Float Switch, 1 m Cable, NO/NC, 240 V AC Max, 120 V DC Max
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | LLF40 |
| Cable Length | 1m |
| Mount Type | Threaded |
| Housing Material | Polypropylene |
| Series | LLF40 |
| Maximum Operating Temperature | 100°C |
| Switch output | NO/NC |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 600mA |
| Maximum dc Voltage | 120V dc |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Maximum AC Voltage | 240V ac |
| Gasket Material | Nitrile Rubber (NBR) |
| Leadout | 100cm PVC 16/0.2 |
Key Features
- Features a threaded mount for secure installation in tanks and vessels.
- Constructed with a polypropylene housing and nitrile rubber (NBR) gasket for chemical resistance.
- Highly compact design suitable for minimal fluid levels and restricted spaces.
- Rated for a maximum voltage of 240 V AC and 120 V DC, supporting a 600 mA current.
- Wide operating temperature range from -20°C to 100°C, ideal for demanding environments.
- 1 m PVC cable provides installation flexibility in industrial settings.
- Designed for applications such as vending machines, commercial washing machines, and evaporator units.
- Switch output can be reversed by rotating the device 180°, providing installation versatility.
Product Description
The RS PRO LLF40 is a threaded nitrile rubber (NBR) float switch designed for reliable liquid level detection and control in various industrial and commercial environments. This float switch features a compact form factor, making it suitable for applications where space is limited and fluid levels are low.
Equipped with both normally open (NO) and normally closed (NC) switching outputs, the LLF40 can operate at a maximum of 240 V AC and 120 V DC with a current capacity up to 600 mA. The device is encased in a robust polypropylene housing, offering resistance to chemicals, corrosion, and mechanical wear, while the nitrile rubber (NBR) gasket ensures a secure liquid seal and compatibility with most commonly used fluids. The switch is supplied with a 1 meter PVC cable for flexible electrical installation.
Engineered for threaded mounting, the LLF40 is easy to install on the interior wall of tanks, containers, and process vessels, and can be reversed 180 degrees for flexible switch action depending on system requirements. The wide operating temperature range from -20°C to 100°C makes this float switch suitable for harsh environments where temperature variations are frequent.
Typical applications include monitoring and controlling fluid levels in vending machines, commercial washing machines, evaporator units, and other process control or automation systems. Its compact design makes it ideal for size-sensitive deployments and lower specific gravity liquids.
The device does not carry hazardous area certifications but meets general electrical safety standards essential for most non-hazardous industrial applications.
For users seeking robust, responsive fluid level controls in demanding environments, the RS PRO LLF40 delivers reliable operation and proven performance in a durable, easy-to-install package. Explore the full range of Float Switches and electrical automation components in the RS PRO catalogue on EnvMart to find the ideal solution for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The float switch is rated for a maximum voltage of 240 V AC and 120 V DC.
It operates within a temperature range of -20°C to 100°C, making it suitable for harsh environments.
This float switch features both normally open (NO) and normally closed (NC) switching outputs.
The maximum current capacity of this float switch is 600 mA.
It is constructed with a polypropylene housing and a nitrile rubber (NBR) gasket for chemical resistance.
The switch comes with a 1 meter PVC cable, allowing for flexible installation.
This model is designed for threaded mounting, making it easy to install on the interior wall of tanks and vessels.
Yes, the switch output can be reversed by rotating the device 180 degrees, providing installation versatility.
It is designed for applications such as vending machines, commercial washing machines, and evaporator units.
These certifications indicate that the float switch meets general electrical safety standards essential for non-hazardous industrial applications.
The compact design is suitable for minimal fluid levels and restricted spaces, making it ideal for size-sensitive deployments.
The RS PRO LLF40 float switch is manufactured in China.
