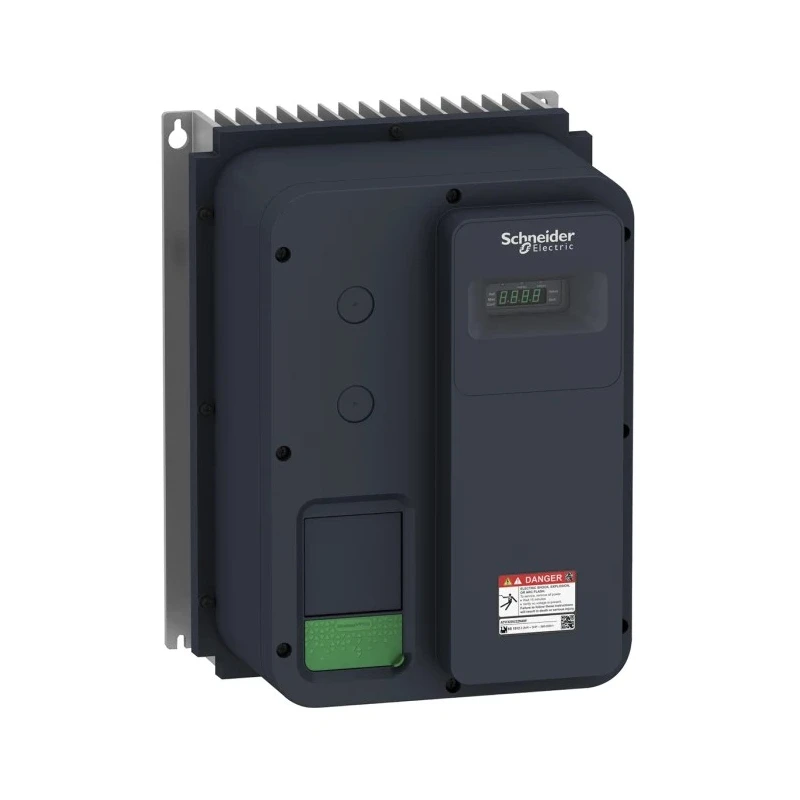

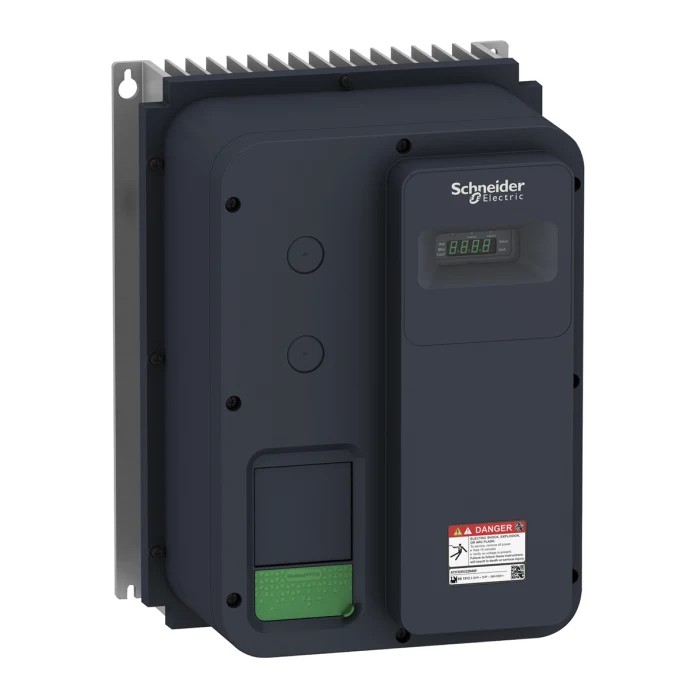

Schneider Electric Variable Speed Drive, 4 kW, 3 Phase, 500V AC, IP66, Wall Mount, ATV320U40N4W
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U40N4W |
| IP Rating | IP66 |
| Drive Type | Variable Speed |
| Mount Type | Wall |
| Overall Length | 250mm |
| Series | ATV320 |
| Overall Width | 235mm |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet |
| Number of Phases | 3 |
| Maximum Output Current | 9.5A |
| Maximum Supply Voltage | 500V ac |
| Overall Depth | 340mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Synchronous, AC Motor, Asynchronous Motor |
Key Features
- Robust variable speed drive for precise motor control.
- Supports 4 kW power and three-phase input from 380V to 500V AC.
- Built with IP66 rating for high dust and water resistance.
- Suitable for wall mounting and harsh environments.
- Compatible with synchronous and asynchronous motors.
- Integrates Modbus and CANopen protocols for flexible connectivity.
- Advanced safety functions configurable through SoMove software.
- Ideal for conveyors, packaging, material handling, woodworking, metal processing, and food & beverage industries.
Product Description
The Schneider Electric ATV320U40N4W variable speed drive is an advanced industrial solution engineered for demanding motor control applications. Designed for OEMs and industrial facilities, it supports a power rating of 4 kW, with a three-phase supply ranging from 380V to 500V AC.
This drive allows both synchronous and asynchronous motors to operate with precision via robust open-loop control capability, ensuring dynamic accuracy during start and stop procedures. Its high IP66 rating delivers enhanced protection against dust and water, making it well-suited for installations in harsh and challenging environments.
Wall mountable and compact, the ATV320U40N4W is particularly effective for machinery installations such as conveyor systems, carton packers, gantry cranes, woodworking and metal processing lines, fans, and the food & beverage sector. Its software includes five configurable safety functions, helping machines meet international safety standards when commissioned using Schneider's SoMove platform.
Connectivity is streamlined with integrated Modbus and CANopen communication protocols available through a convenient RJ45 interface. The drive supports advanced automation architectures, including EtherNet/IP and other industrial bus systems, facilitating flexible integration with plant networks.
The Altivar Machine ATV320 series is recognized for its robust build and reliable performance, further supported by features like the EMC C2 filter and no-fan delivery for improved environmental resistance. The device comes with a weight of 7.8 kg and occupies a compact footprint, with overall dimensions of 250 mm length, 235 mm width, and 340 mm depth.
Robust variable speed drive for precise industrial motor control. 4 kW power rating and three-phase operation (380 - 500V AC). IP66 enclosure for enhanced dust and moisture resistance. Wide output frequency range: 0.1 Hz to 599 Hz.
Supports synchronous and asynchronous motor types. Integrated Modbus and CANopen connectivity via RJ45. Safety functions configurable with SoMove software. Designed for conveyors, hoisting, packaging, woodworking, and food processing.
Wall mountable, 7.8 kg weight, and compact dimensions.
The Schneider Electric ATV320U40N4W is essential for industrial environments requiring reliable motor control, energy-saving operation, and connectivity across automation architectures. Browse the complete EnvMart selection of Inverter Drives and Schneider Electric industrial solutions for additional options and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV320U40N4W has a power rating of 4 kW.
This variable speed drive operates with a three-phase supply voltage ranging from 380V to 500V AC.
It has an IP66 rating, providing high protection against dust and water.
The ATV320U40N4W is compatible with synchronous and asynchronous motors.
The output frequency range is from 0.1 Hz to 599 Hz.
This model has dimensions of 250 mm in length, 235 mm in width, and 340 mm in depth, with a weight of 7.8 kg.
The maximum operating temperature is 60°C, while the minimum operating temperature is -10°C.
This variable speed drive is designed for wall mounting.
It supports EtherNet/IP, Modbus TCP, Profinet, EtherCAT, Profibus, CANopen, and DeviceNet interfaces.
This drive includes five configurable safety functions that can be set up using Schneider's SoMove software.
It is commonly used in industries such as conveyors, packaging, material handling, woodworking, metal processing, and food & beverage.
The maximum output current of the ATV320U40N4W is 9.5A.
