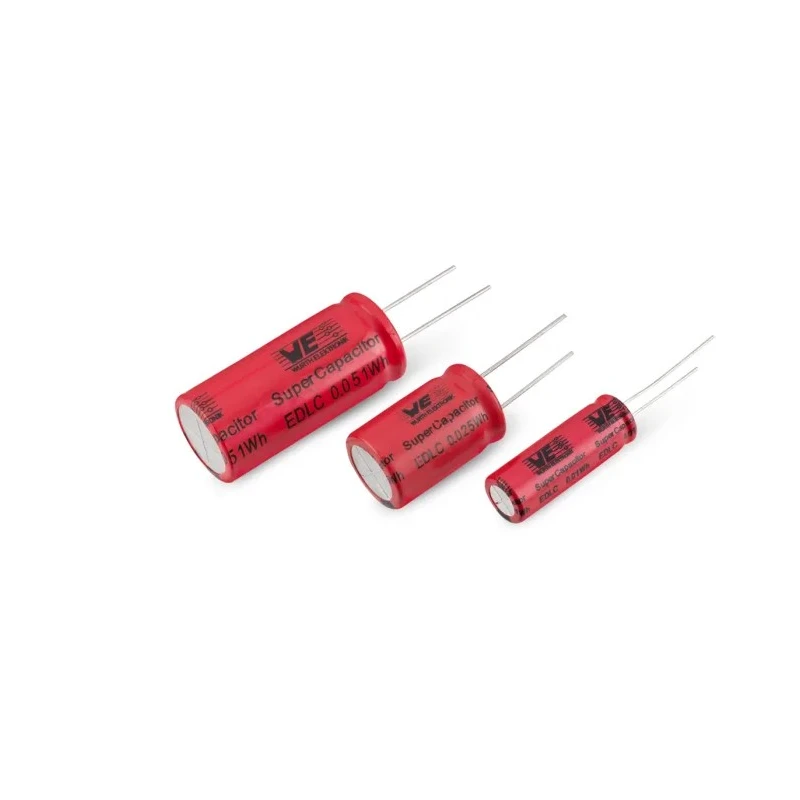

Wurth Elektronik 50 F Supercapacitor, 2.7V DC, Through Hole, -10 to 30 Percent Tolerance, WCAP-STSC 850617022002
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2.7V dc |
| Capacitance Range | 3 F - 50 F |
| Diameter | 18mm |
| Brand | Wurth Elektronik |
| Operating Temperature | -40 °C up to +65 °C |
| Height | 40mm |
| Packaging | Bag |
| Mount Type | Through Hole |
| Series | WCAP-STSC |
| Maximum Operating Temperature | 65°C |
| Tolerance | -10 to 30 % |
| Lifetime | 1000 h |
| Capacitance | 50F |
| Minimum Operating Temperature | -40°C |
| Polarity | Polar |
| Terminal type | Solder |
| Leakage Current | 105μA |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 2 |
| Lead Pitch | 7.5mm |
| Lead Diameter | 0.8mm |
| Equivalent Series Resistance ESR | 20mΩ |
| Capacitor Family | Supercapacitor |
| Recommended soldering | Wave |
Key Features
- Features a high 50 farad rated capacitance for robust energy storage.
- Operates at 2.7V DC and maintains performance across wide temperature range.
- 10 to 30 percent tolerance ensures stable operation under varying conditions.
- Through hole mount type with 0.8mm lead diameter and 7.5mm lead pitch.
- Polar terminal type and minimal leakage current of 105μA for safe operation.
- Constructed with high-quality materials for automotive and industrial reliability.
- Meets REACH and RoHS standards for environmental compliance.
- Solder terminals with recommended wave soldering for secure installation.
Product Description
The Wurth Elektronik 850617022002 Supercapacitor is designed to deliver high-performance energy storage and rapid power delivery for advanced electronic applications. With a rated capacitance of 50 farads and a rated voltage of 2.7V DC, this supercapacitor is ideal for systems requiring backup energy, power assist, or burst power solutions.
This component features a through-hole mounting style, enabling secure placement on circuit boards, and supports easy integration with a standard 0.8mm lead diameter and 7.5mm pitch for soldering. The polar terminal configuration and extremely low leakage current of 105μA ensure safe and efficient operation. The supercapacitor operates efficiently over a broad temperature range from -40°C to +65°C, making it suitable for use in demanding environments including industrial, automotive, and network equipment.
With a tolerance of -10 to +30 percent, this capacitor maintains reliable energy storage and discharge characteristics. It conforms to industry standards including REACH and RoHS, confirming its suitability for environmentally sensitive projects. Mechanical dimensions are compact, with an 18mm diameter and 40mm height, allowing for high-density circuit design where space is critical.
The device is part of the WCAP-STSC series, renowned for electric double layer technology and wave soldering compatibility. Its equivalence series resistance (ESR) is just 20 milliohms, supporting high-efficiency cycling and longevity. The capacitor is intended for applications such as memory backup, smart meters, network equipment, UPS systems, power assist, and energy harvesting solutions.
In summary, the Wurth Elektronik 850617022002 supercapacitor is a reliable, environmentally-compliant choice for designers and engineers seeking robust energy storage in advanced industrial, laboratory, and commercial electronics.
High 50 F capacitance for energy storage and backup. Wide operating temperature range suited for industrial use. Through hole mounting and solder terminals for secure installation. Meets REACH and RoHS environmental standards.
Electrically and mechanically robust for automotive, industrial, and network equipment applications. Low ESR and leakage current support efficient cycling. Compact form factor (18mm diameter, 40mm height) for circuit integration.
Explore more Supercapacitors and Wurth Elektronik solutions in Electronics & Electricals on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This supercapacitor has a capacitance rating of 50 farads, providing robust energy storage capabilities.
It operates at a voltage of 2.7V DC, suitable for various electronic applications.
The supercapacitor operates efficiently over a wide temperature range from -40°C to +65°C, making it suitable for demanding environments.
The tolerance for this model is between -10% to +30%, ensuring stable operation under varying conditions.
This model features a through-hole mounting type, allowing for secure placement on circuit boards.
The supercapacitor has a diameter of 18mm and a height of 40mm, allowing for compact circuit designs.
It has a lead diameter of 0.8mm and a lead pitch of 7.5mm, compatible with standard soldering practices.
The leakage current is minimal at 105μA, ensuring safe operation during use.
It conforms to REACH and RoHS standards, confirming its suitability for environmentally sensitive projects.
The equivalent series resistance (ESR) is 20 milliohms, supporting high-efficiency cycling.
It is intended for applications such as memory backup, smart meters, network equipment, UPS systems, and energy harvesting solutions.
