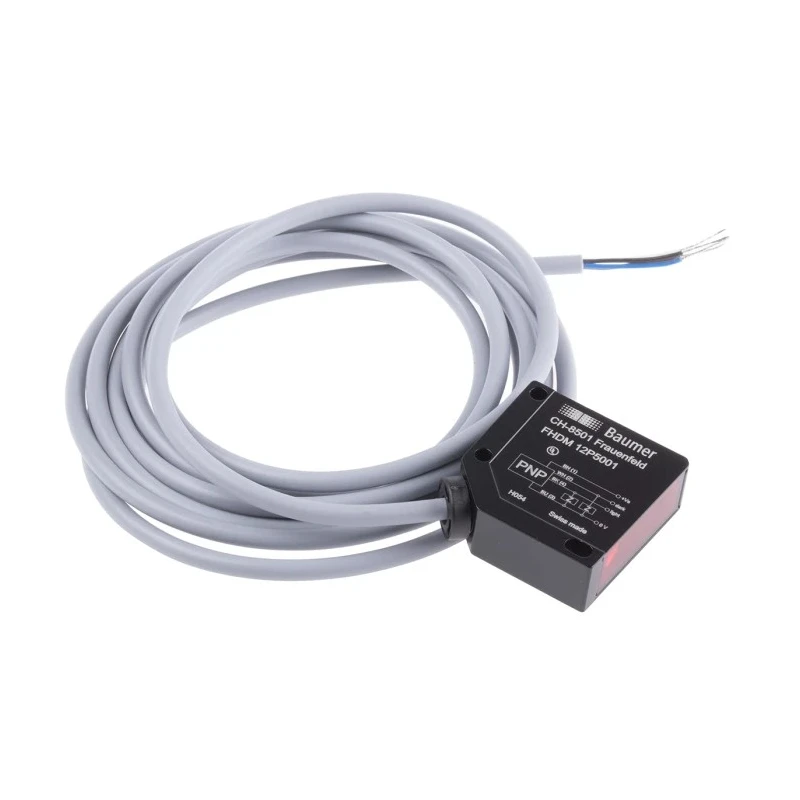

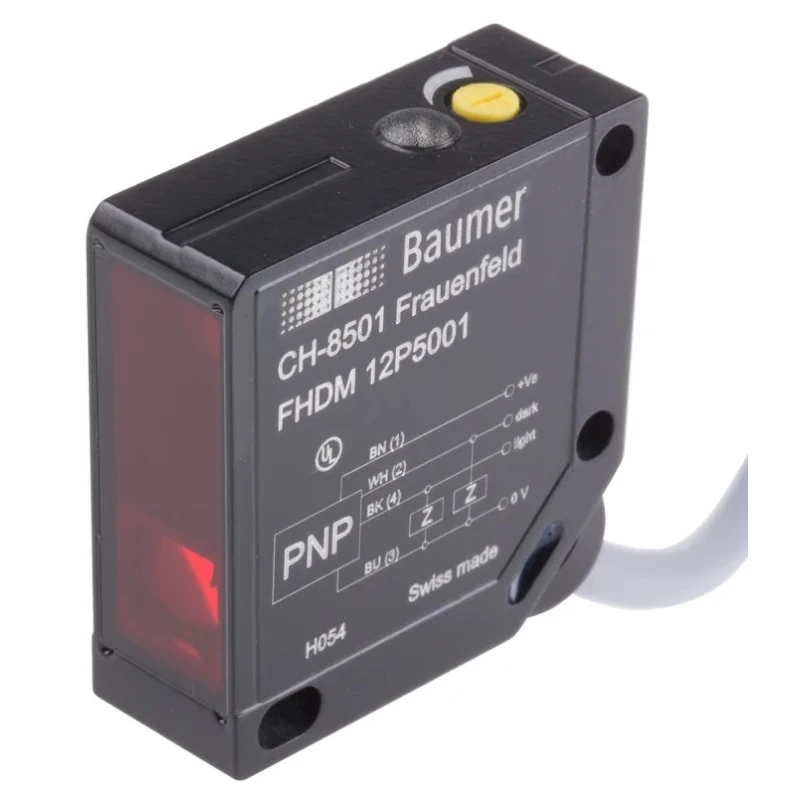

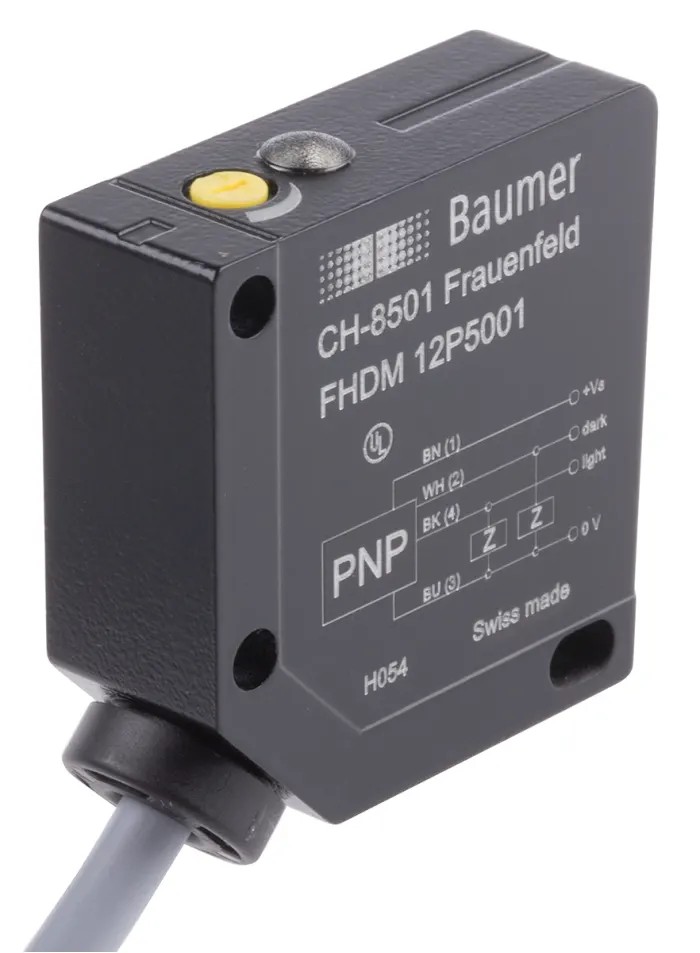

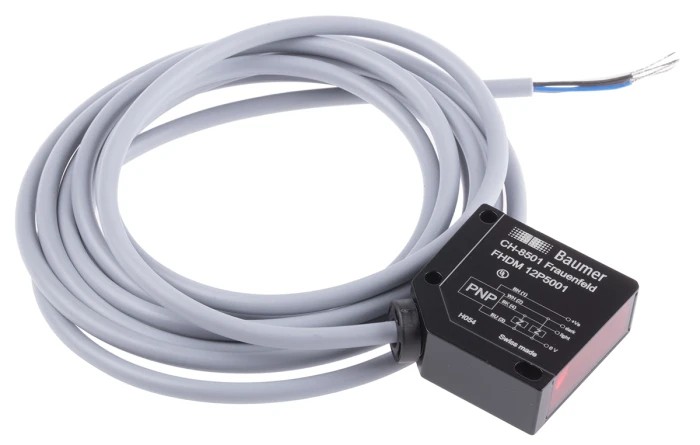

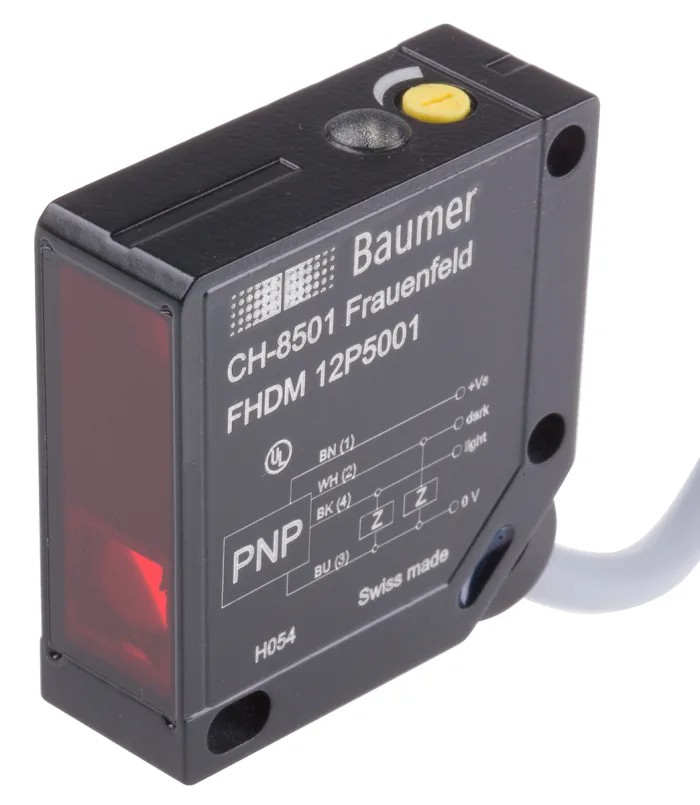

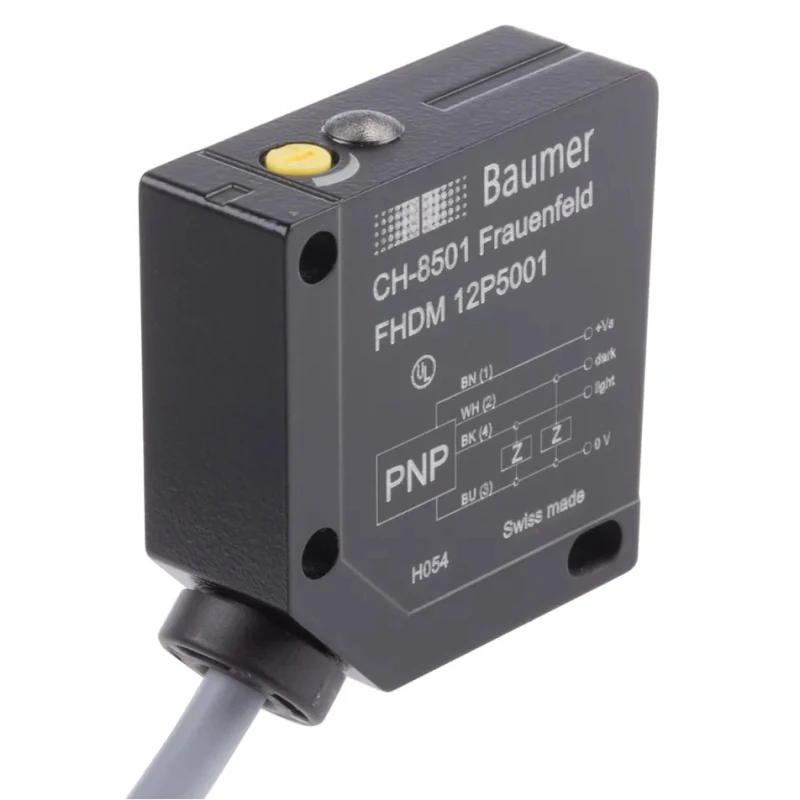

Baumer Diffuse Photoelectric Sensor Block Sensor 15 mm to 300 mm, PNP, IO-Link, 30V DC, LED, IP67 FHDM 12P5001
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Baumer |
| Response time | 1ms |
| Light Source | LED |
| Detection range | 15 mm → 300 mm |
| Model | FHDM 12P5001 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Housing Material | Die Cast Zinc |
| Output type | PNP |
| Series | FHDM 12P |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Diffuse |
| Switching Frequency | 500 Hz |
| Terminal type | 4-Pin M8 |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | IEC |
| Sensor Style | Block |
Key Features
- Detection range from 15 mm to 300 mm for flexible applications.
- Output configuration is PNP with N/O + N/C outputs, ideal for varied control needs.
- Sealed to IP67, ensuring excellent resistance to dust and water in tough environments.
- Panel mount style with 4-pin M8 terminal for simple and secure installation.
- Operates at 10 to 30V DC and supports IO-Link interface for modern connectivity.
- Visible red LED source with adjustable sensitivity for easy setup and alignment.
- Fast response time of 1 ms suitable for dynamic process automation.
- Constructed with a robust die-cast zinc housing for longevity in demanding conditions.
Product Description
The Baumer FHDM 12P5001 Diffuse Photoelectric Sensor is an industrial-grade block sensor designed for precise object detection in automation and control systems. This model combines a flexible 15 mm to 300 mm detection range with advanced background suppression to deliver stable, accurate sensing in complex environments.
The sensor features PNP output with both normally open and normally closed contacts, accommodating a broad range of interface requirements. IO-Link connectivity allows for seamless integration with modern automation platforms, enhancing data communication and remote parameterization. Its pulsed visible red LED source enables straightforward alignment and status monitoring, ensuring ease of setup and ongoing maintenance.
Engineered for durability, the sensor is housed in a die-cast zinc body and rated to the IP67 ingress protection standard. This guarantees resilience to dust, water, and mechanical impact, making it ideal for harsh industrial environments. The unit operates reliably in temperatures from -25 to +65°C and supports supply voltages between 10 and 30V DC, drawing up to 100 mA at maximum.
Installation is simple thanks to its panel mount style and 4-pin M8 connector, ensuring compatibility with standardized industrial wiring. Adjustable sensitivity allows users to optimize performance for specific objects and backgrounds, while protection features such as short circuit and reverse polarity defense offer additional safety and longevity. Visual status LEDs provide real-time feedback, and a fast 1 ms response time supports high-speed applications such as material handling and packaging lines.
Typical fields of application include automated production lines, conveyor systems, packaging machines, material presence and position detection, and laboratory automation. The compact form factor allows seamless integration even in constrained control cabinets or robotic arms. Backed by compliance with IEC standards, this sensor ensures reliable operation in demanding manufacturing, logistics, and process control environments.
Choose Baumer Photoelectric Sensor solutions for consistent, maintenance-friendly automation. Explore the full range of industrial sensing technology and automation solutions in the EnvMart Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is from 15 mm to 300 mm, allowing for flexible applications in various environments.
It features a PNP output configuration with both normally open and normally closed outputs, accommodating diverse control requirements.
The maximum operating voltage for the Baumer FHDM 12P5001 is 30V DC.
This model has a fast response time of 1 ms, making it suitable for dynamic process automation.
The sensor is rated IP67, providing excellent resistance to dust and water in challenging environments.
It features a robust die-cast zinc housing, ensuring durability in demanding conditions.
This model is designed for panel mounting and includes a 4-pin M8 connector for secure installation.
The operating temperature range for this unit is from -25°C to +65°C.
Yes, it supports IO-Link interface, allowing for modern connectivity and integration with automation systems.
It uses a visible red LED light source, which aids in alignment and status monitoring.
The switching frequency of the Baumer FHDM 12P5001 is 500 Hz, supporting high-speed applications.
This model complies with IEC standards, ensuring reliable operation in industrial environments.
