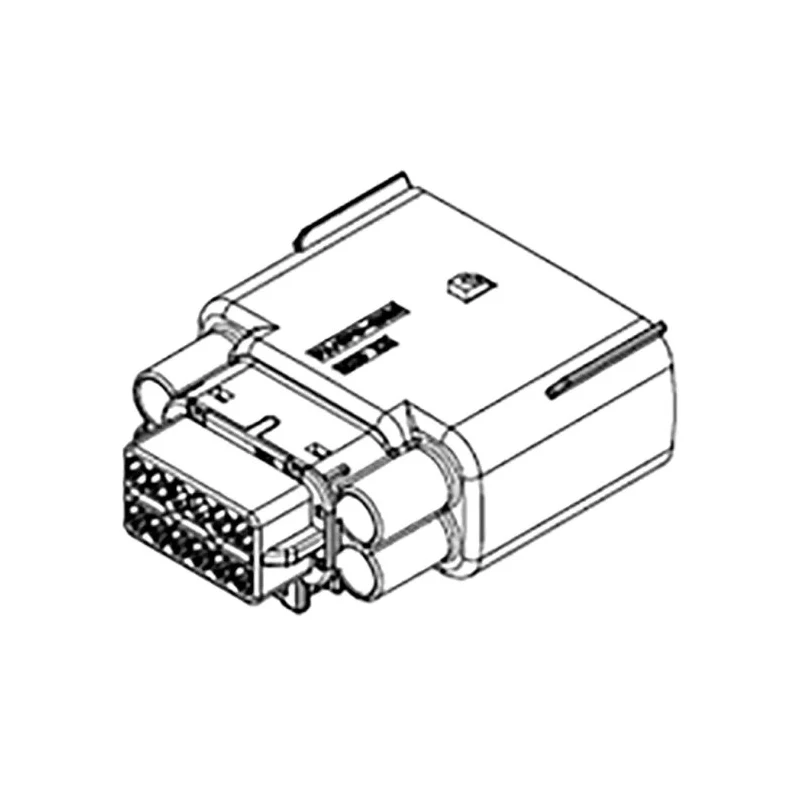

Molex Automotive Connector Seal Male Crimp 16-Way 2-Row Cable Nylon IP6K7 5A 34986-1601
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Colour | Natural, Black |
| Current | 5A |
| Height | 26.26mm |
| Depth | 56.85mm |
| IP Rating | IP6K7 |
| Width | 46.44mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | 34986 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Sealed Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Number of Contacts | 16 |
Key Features
- This connector features 2 rows with 16 contact points for enhanced electrical connectivity.
- Designed as a sealed male automotive connector for cable mount applications.
- Crimp termination method ensures a secure and reliable electrical connection.
- Rated to carry up to 5A electrical current.
- Manufactured from durable nylon housing with IP6K7 protection for robust environments.
- Supports a wide temperature range from -40°C to 125°C for versatile deployment.
- Natural and black colour options assist in identification and installation.
- Suited for use in automotive and industrial wiring harness systems.
Product Description
Molex 34986-1601 is a high-performance automotive connector seal, specifically designed for cable applications requiring reliability and protection against environmental factors. This product features a dual-row layout with 16 contact positions, aligned for robust signal and power delivery in automotive electrical systems.
As a sealed male connector, the Molex 34986-1601 supports crimp termination, which is widely preferred for secure electrical connections and ease of installation. Used extensively in wiring harnesses, the crimp design ensures low-resistance connections without soldering.
Constructed from high-quality nylon, the housing provides mechanical strength and resistance to abrasion, chemicals, and vibration, critical for automotive environments. The connector is IP6K7 rated, meaning it is dust-tight and protected against temporary immersion, making it suitable for underhood and exposed locations.
Electrical performance is assured with a 5A current rating, matching the requirements of typical control and signal circuits. The two-row design optimizes connector density while maintaining clear organization for multi-circuit applications.
This connector accommodates a wide temperature range from -40°C up to 125°C, supporting both cold weather and high-temperature engine bay installations. Its compact dimensions (56.85 mm deep, 46.44 mm wide, 26.26 mm high) allow for integration into space-constrained areas.
Colour-coded in natural and black, the connector assists in circuit identification and correct mating. The 16-way configuration is ideal for modern automotive wiring looms and complex industrial harnesses.
Practical applications for the Molex 34986-1601 include vehicle power distribution, sensor interfacing, control module connections, and industrial automation wiring.
Explore more automotive and industrial connectors from Molex in the Automotive Electrical Connector section at EnvMart. Find solutions tailored to high-reliability and high-density harnessing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated to carry up to 5A of electrical current, suitable for typical control and signal circuits.
The connector has an IP6K7 rating, meaning it is dust-tight and protected against temporary immersion, making it suitable for use in harsh environments.
The connector measures 56.85 mm in depth, 46.44 mm in width, and 26.26 mm in height, allowing for integration into space-constrained areas.
It is constructed from high-quality nylon, providing mechanical strength and resistance to abrasion, chemicals, and vibration.
The Molex 34986-1601 operates effectively within a wide temperature range from -40°C to 125°C, accommodating both cold and high-temperature environments.
This model features 16 contact points arranged in a dual-row layout, optimizing connector density for multi-circuit applications.
It utilizes a crimp termination method, which ensures secure and reliable electrical connections without soldering.
The connector is available in natural and black color options, assisting in circuit identification and correct mating during installation.
Yes, it is specifically designed for automotive wiring harness systems and is used extensively for vehicle power distribution and sensor interfacing.
The Molex 34986-1601 is designed for cable mount applications, making it versatile for various installations.
This connector is manufactured in China, ensuring compliance with industry standards for automotive connectors.
It is suited for applications such as vehicle power distribution, control module connections, and industrial automation wiring.
