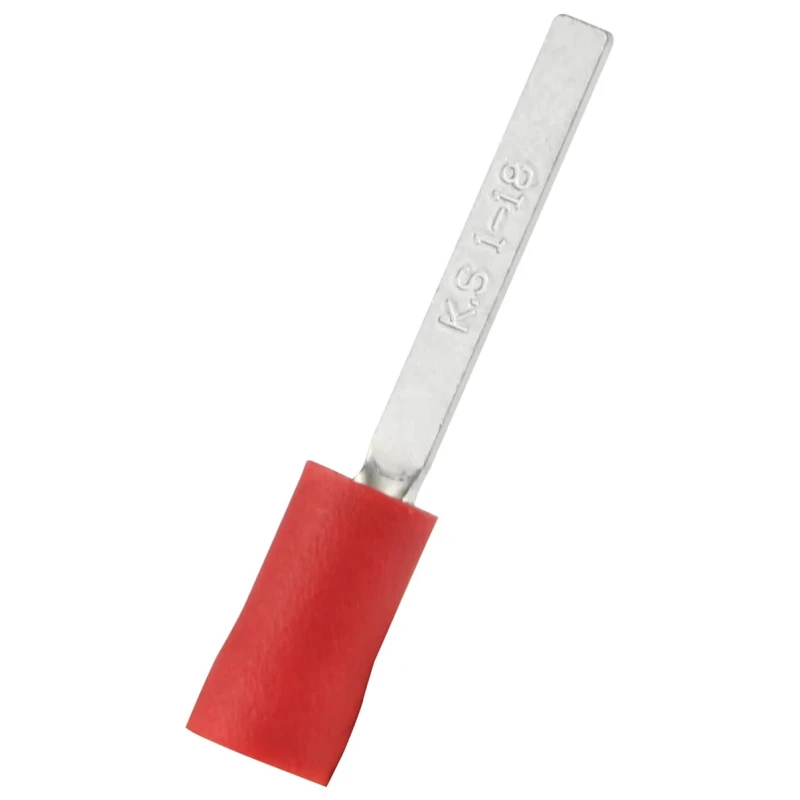

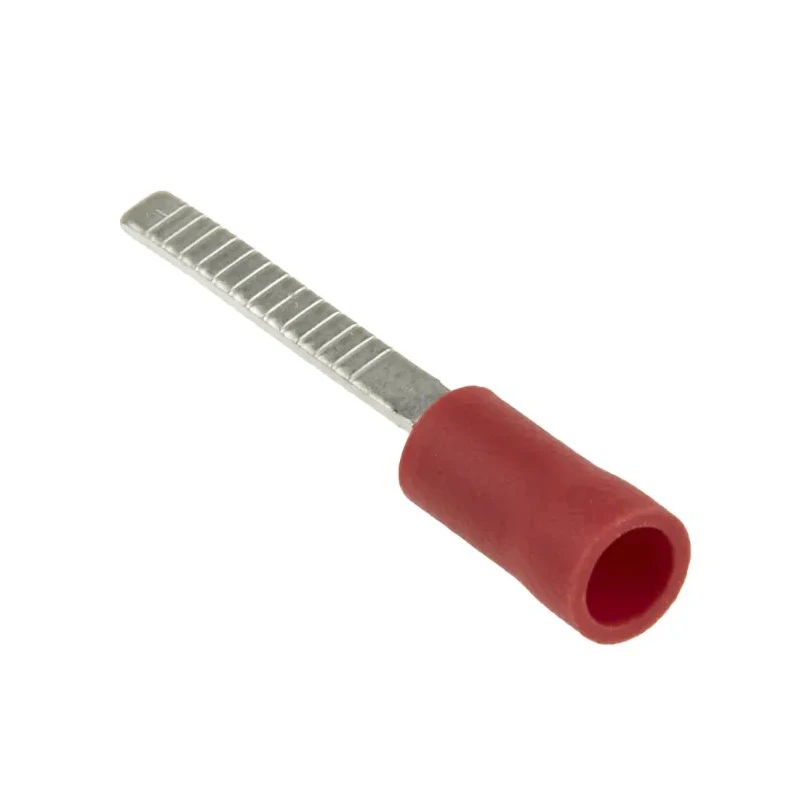

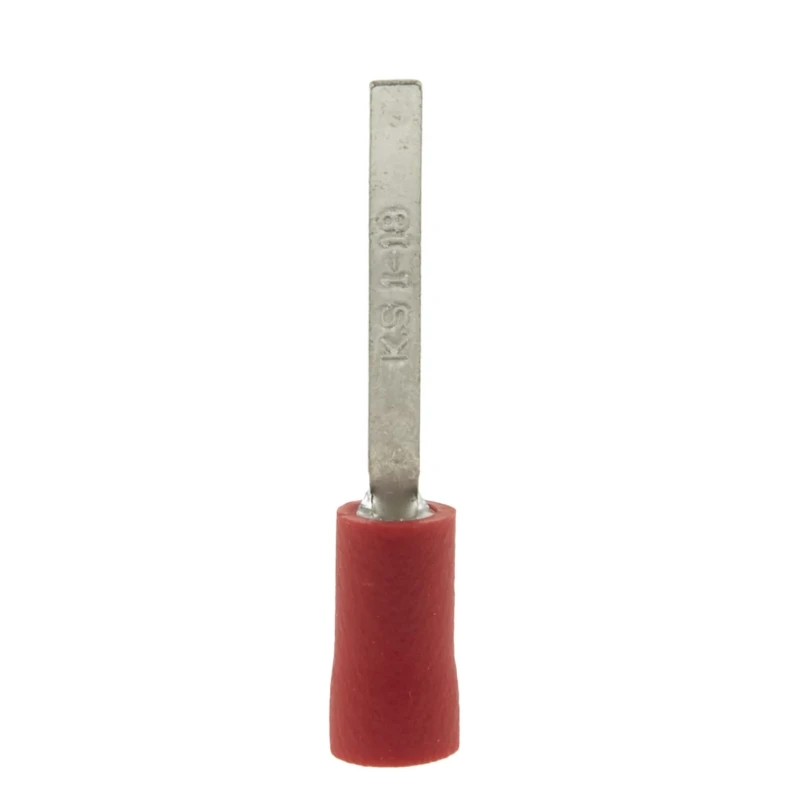

RS PRO Insulated Crimp Blade Terminal, 18 mm Blade Length, 22 - 16 AWG, Red Vinyl, Copper, 178-7246

RS PRO 178-7246 Insulated Crimp Blade Terminal is a high-quality connector designed for use in electronic and electrical applications where reliable wire termination and insulation are required. The product features a robust copper contact material, ensuring excellent electrical conductivity, while the red vinyl insulation provides additional safety and protection against accidental shorts or environmental influences.

The blade terminal supports a wide wire size range, accommodating 22 AWG to 16 AWG wires, making it well-suited for diverse wiring tasks in commercial, industrial, and laboratory environments. Its 18 mm blade length allows for strong insertion and secure connection in terminal blocks, splice panels, and other junction hardware. The blade width and thickness - 2.2 mm wide and 0.75 mm thick - ensure compatibility with standard terminal plates.

Installation is straightforward with a crimp-based process, facilitating rapid, tool-based wire attachment for high-volume production or maintenance scenarios. The terminal’s overall length of 27.8 mm allows use where space is limited without compromising on performance. The red color coding assists in circuit identification and organization within complex assemblies.

Being vinyl-insulated, the terminal offers increased resistance to mechanical strain and environmental degradation. The inside diameter of 1.7 mm fits snugly around stripped wire ends, ensuring tight contact and minimizing potential for loosening.

This blade terminal is ideal for industrial machinery control panels, automotive electrical systems, HVAC units, laboratory equipment wiring, and any electronics manufacturing processes requiring safe and reliable wire terminations. It is also frequently used in commercial and industrial repair or retrofit situations for splicing or permanent connections.

Engineered to meet demanding electronic and electrical interconnect requirements, the RS PRO insulated crimp blade terminal is a dependable solution in settings ranging from manufacturing to field servicing. Explore additional RS PRO wire termination accessories for further customization and system integration.

Insulated blade terminal providing enhanced electrical safety. Suitable for wire sizes from 22 AWG to 16 AWG for versatile applications. Features a durable red vinyl insulation for reliable protection. Copper contact material ensures optimal conductivity and performance.

Blade measures 18 mm in length for precise insertion and secure fit. Complies with industry standards for termination and splicing. Compact design with an overall length of 27.8 mm. Easy crimp installation process supporting efficient assembly.
