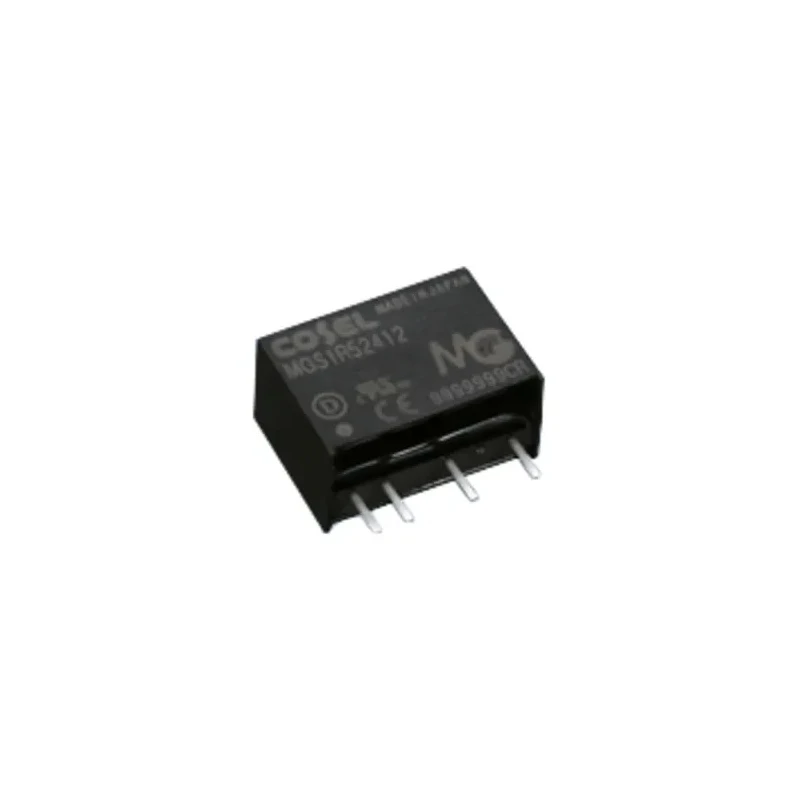

Cosel DC/DC Converter 3.3V 400mA DC Output, 24V/18V DC Input, 1.32W PCB Mount, SIP-6, 4 Pins MGS1R5243R3
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Cosel |
| Efficiency | 78% |
| Length | 17mm |
| Model | MGS1R5243R3 |
| Depth | 12mm |
| Gross Weight | 4g |
| Width | 8.5mm |
| Mount Type | PCB |
| Series | MGS |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-6 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 1.32W |
| Maximum Input Voltage | 24V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 4 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 400mA |
| Output Voltage Adjustment Range | 3.21 to 3.42 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 0.4A |
Key Features
- Delivers regulated 3.3V DC output at up to 400mA from 24V or 18V DC input.
- 1.32W maximum output power for reliable low-voltage device operation.
- SIP-6 compact PCB-mountable package for efficient board integration.
- Wide output voltage adjustment range from 3.21V to 3.42V for versatile applications.
- Operational over a broad temperature span of -40°C to 85°C.
- Integral 1kV DC isolation barrier enhances circuit protection.
- Built-in overcurrent protection increases system reliability.
- Low output ripple and noise (200mV p-p) supports sensitive circuits.
Product Description
The Cosel MGS1R5243R3 DC/DC Converter is a compact and highly efficient solution for powering low-voltage logic and electronic devices from higher DC input sources. Designed for direct PCB mounting, it features a space-saving SIP-6 package and supports both 24V and 18V input voltages, delivering a stable, regulated 3.3V DC output at up to 400mA for a broad range of industrial and electronic designs.
This model ensures robust performance with up to 1.32W maximum output power, meeting the demands of embedded systems, instrumentation, control panels, and other sensitive circuitries that require low-voltage power conversion. The device achieves high reliability through a 1kV DC isolation barrier and integrates protection features such as overcurrent limiting. With a ripple and noise rating of only 200mV peak-to-peak, this converter is well-suited for applications where signal integrity is critical.
The MGS1R5243R3 operates reliably across a wide temperature span from -40°C to 85°C, making it ideal for installation in challenging commercial, industrial, and laboratory environments. Its output voltage can be adjusted within the range of 3.21V to 3.42V, providing added flexibility for specific load or circuit requirements.
The compact footprint of 17mm length, 12mm depth, and 8.5mm width allows for easy integration into dense PCBs, and the low weight of 4g supports lightweight or portable electronic assemblies. The four-pin SIP-6 configuration simplifies PCB layouts and assembly processes.
Common use cases include powering microcontrollers, embedded networking hardware, communications boards, control relays, and sensor interfaces. With high efficiency up to 78% and compliance to multiple international safety standards, the MGS1R5243R3 is ideal for professional electronics development, automation systems, medical equipment (non-patient-contact), and other industrial-grade products.
Explore more advanced DC to DC converter options in the Cosel power conversion category on EnvMart for your next project requirements.
Explore more products in our DC Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The converter delivers a regulated output voltage of 3.3V DC.
It can provide a maximum output current of 400mA.
This model supports input voltages of 18V to 24V DC.
The maximum output power is 1.32W.
It has a ripple and noise rating of 200mV peak-to-peak.
It operates reliably over a temperature range of -40°C to 85°C.
The SIP-6 package measures 17mm in length, 12mm in depth, and 8.5mm in width.
This model has 4 pins.
It is designed for PCB mounting.
The efficiency of the converter is rated at 78%.
Yes, it includes built-in overcurrent protection for increased reliability.
It is suitable for powering microcontrollers, embedded networking hardware, and other sensitive circuits.
