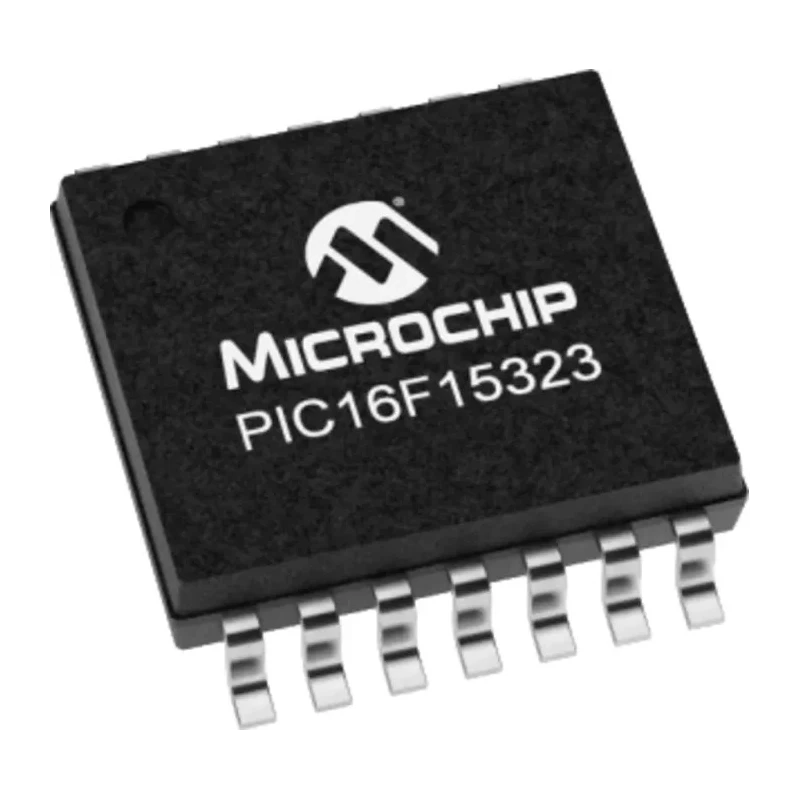

Microchip 8-bit CPU Microcontroller, 32 MHz, 3.5kB Flash, 14-Pin TSSOP PIC16F15323
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | PIC16F15323 |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | PIC16F15323 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Interface Type | EUSART, I2C, SPI |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | 8 Bit CPU |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Features an 8-bit CPU architecture optimized for embedded control applications.
- Operating frequency up to 32 MHz enables efficient processing.
- 3.5kB Flash program memory provides ample storage for firmware routines.
- TSSOP surface-mount package with 14 pins for compact PCB design.
- Supports EUSART, I2C, and SPI communication interfaces for versatile integration.
- Includes 256 bytes RAM and 2 x 11-channel 10-bit ADCs.
- Wide operating voltage range from 1.8 V to 5.5 V for flexible power supply options.
- Multiple programmable I/Os and analog peripherals for extended functionality.
Product Description
The Microchip PIC16F15323-I/ST is a compact and efficient 8-bit microcontroller designed for use in advanced embedded systems. This microcontroller is based on a high-performance 8-bit CPU core running at up to 32 MHz, allowing for rapid execution of instructions and control logic.
This component offers 3.5kB of in-system programmable Flash memory, enabling storage of application firmware and flexible code updates. Equipped with 256 bytes of RAM, it supports smooth data handling for most process control or sensor integration tasks. The device comes in a 14-pin TSSOP (Thin Shrink Small Outline Package), which is optimal for surface-mounted assembly on densely populated printed circuit boards.
Numerous integrated peripherals such as EUSART, I2C, and SPI interfaces ensure easy and versatile connectivity to sensors, displays, and other microcontrollers. With 11-channel, 10-bit ADC, and two analog comparators, it supports a wide range of analog and mixed-signal applications. The microcontroller provides one 5-bit DAC and multiple programmable I/Os for signal output and system feedback.
Operating reliably between 1.8V and 5.5V, and featuring a maximum power dissipation of 800mW, the PIC16F15323-I/ST is well-suited for battery-powered, low-voltage, and energy-efficient industrial and commercial projects. The device conforms to RoHS directives, making it an environmentally responsible choice for new designs.
Use cases span industrial automation controllers, sensor hubs, handheld instruments, signal processing platforms, and other embedded control systems where space and power efficiency are critical. High integration and robust temperature range (-40°C to 85°C) equip it for harsh industrial, laboratory, and electronic applications.
This microcontroller is part of Microchip's enhanced mid-range family, featuring a RISC instruction set, 16-stack levels, hardware math support, peripheral pin select (PPS), and advanced low-power operation modes such as IDLE and DOZE.
Explore more Microchip Microcontrollers on EnvMart for a wide range of industrial, commercial, and laboratory automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16F15323 is 32 MHz, enabling efficient processing for embedded applications.
This microcontroller features a program memory size of 3.5kB, which provides ample storage for firmware routines.
It supports EUSART, I2C, and SPI communication interfaces, allowing for versatile integration with various devices.
The operating voltage range for the PIC16F15323 is from 1.8 V to 5.5 V, offering flexible power supply options.
This microcontroller includes 12 programmable I/Os, providing flexibility for various applications.
The dimensions of this microcontroller are 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.
It features 11 channels of 10-bit ADCs, which support a wide range of analog applications.
The maximum power dissipation of this microcontroller is 800 mW, making it suitable for low-power applications.
The operating temperature range for the PIC16F15323 is from -40°C to 85°C, suitable for harsh environments.
Yes, the PIC16F15323 conforms to RoHS directives, making it an environmentally responsible choice.
This microcontroller comes in a TSSOP (Thin Shrink Small Outline Package) with 14 pins, ideal for surface mounting.
The PIC16F15323 includes 2 analog comparators, enhancing its capability for mixed-signal applications.
