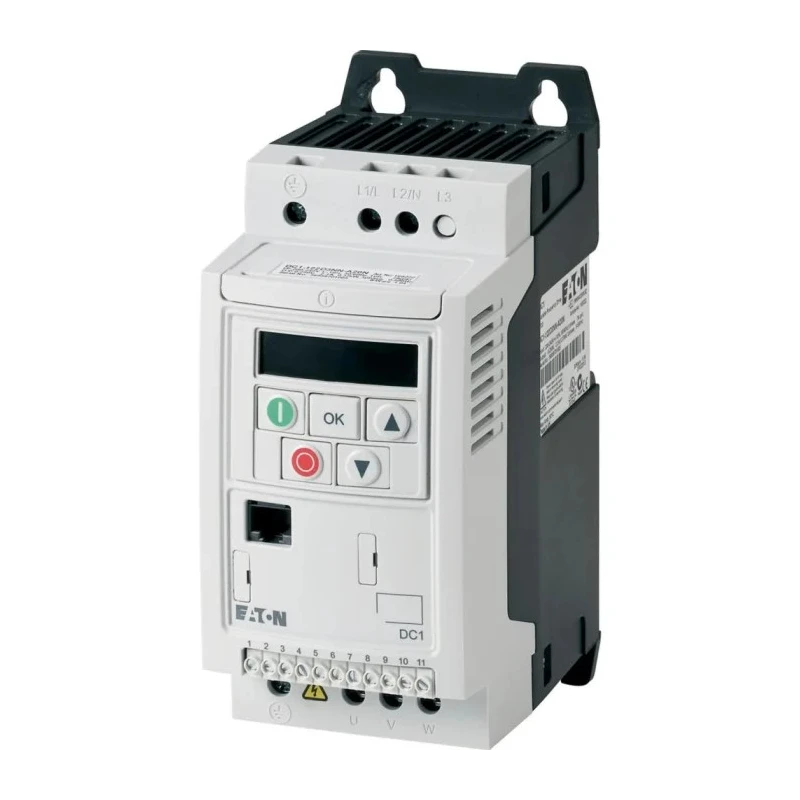

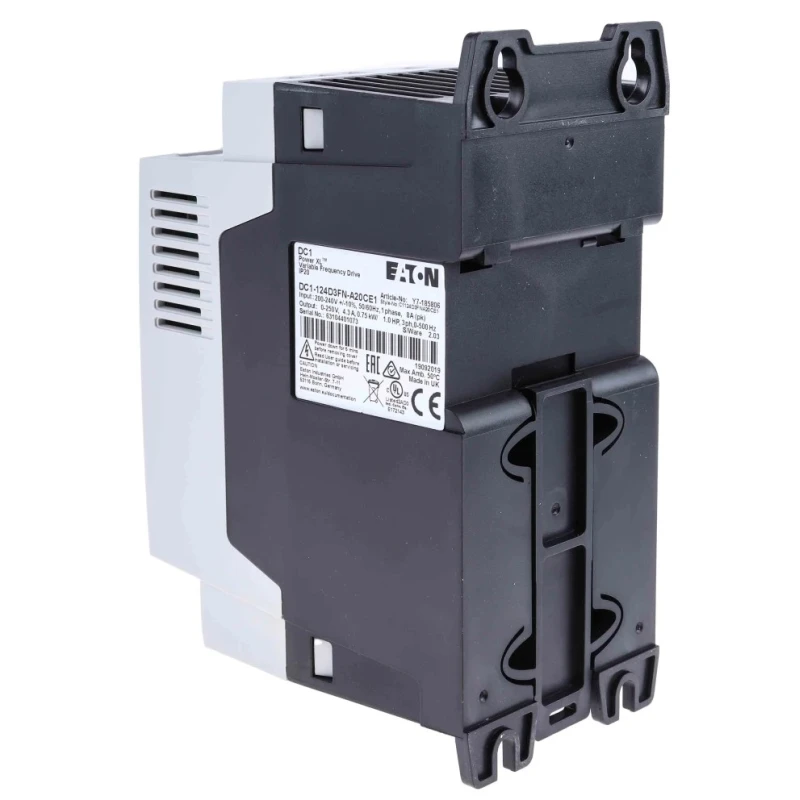

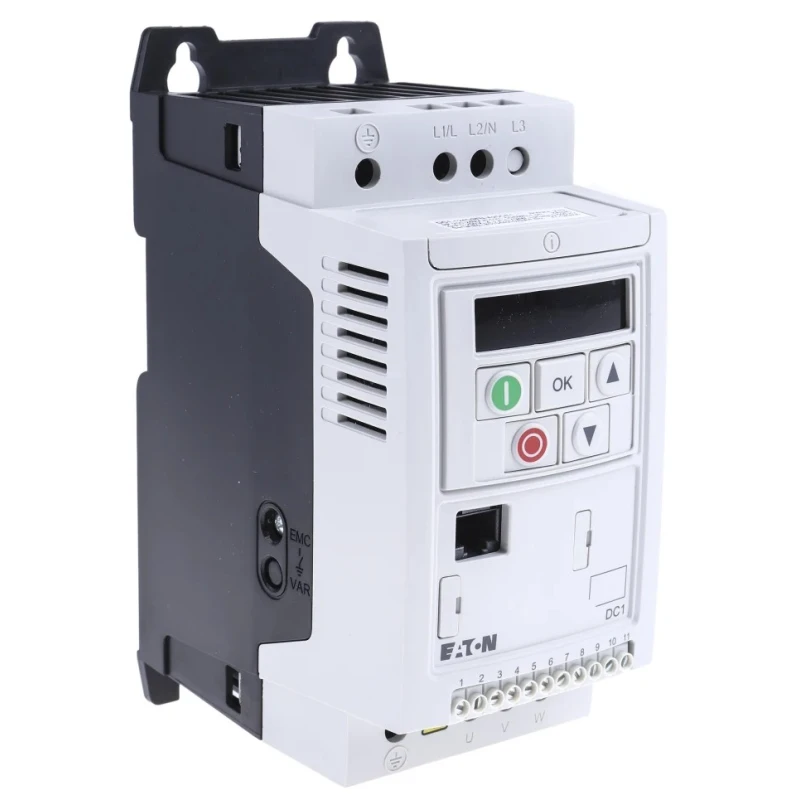

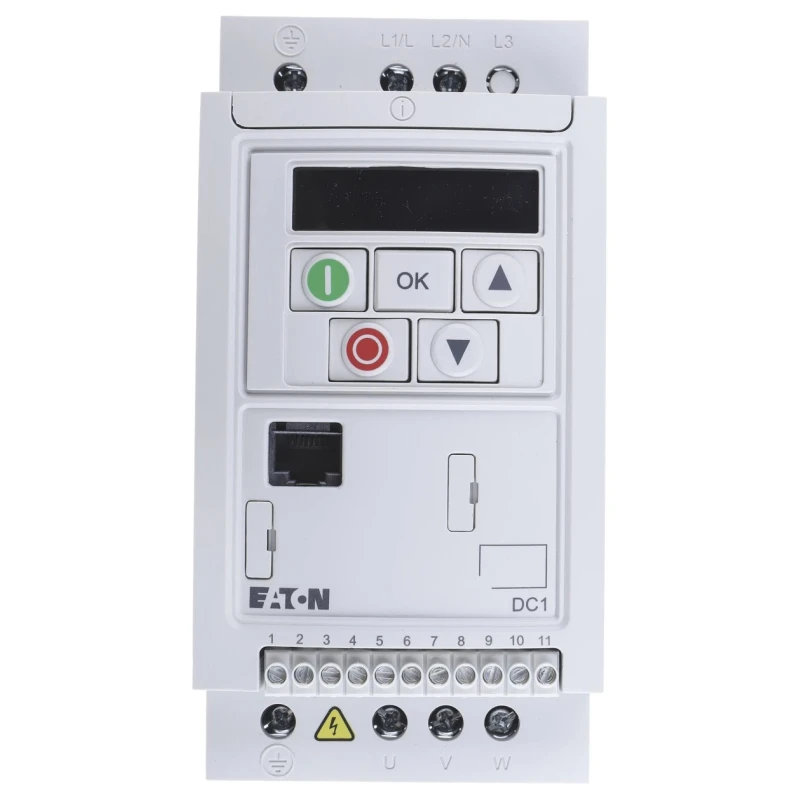

Eaton Inverter Drive 750 W 1 Phase DC1 Series Vector Control 240V Flange Mount 4.3A IP20 185806 DC1-124D3FN-A20CE1

Eaton’s DC1 Series 185806 DC1-124D3FN-A20CE1 inverter drive is a single-phase variable frequency drive engineered for precise speed and torque control of asynchronous motors. With a robust 750 W power rating, this unit provides accurate vector control, making it suitable for applications involving pumps, fans, conveyor systems, coating and filling machines, and other industrial processes where reliable motor operation is essential.

The drive is designed with a flange mount configuration, supporting installations where space and accessibility are key. It operates at supply voltages between 200 V and 240 V and delivers a maximum output current of 4.3 A. The unit ensures optimal performance at output frequencies up to 50 Hz, allowing equipment to maintain consistent speeds under varying loads while minimizing wear and energy consumption.

Integration with SmartWire-DT, CANopen, and Modbus RTU protocols enables efficient communication and flexible networking with other control devices. The built-in EMC filter effectively mitigates RF interference, supporting seamless operation in electrically noisy environments. Its IP20 ingress protection rating ensures safety in controlled, indoor settings.

User interfaces include a clear display and accessible function buttons for straightforward setup and operation. The drive’s compact body measures 81 mm in length, 124 mm in width, and 184 mm in depth, facilitating installation in limited spaces. Sensorless vector control technology allows the connected motor to react quickly to changing demands and perform dependably at low speeds.

Typical industrial applications for this inverter drive include water treatment, HVAC controls, conveyor automation, and manufacturing processes requiring flexible, programmable motor performance. The DC1 Series exemplifies Eaton's commitment to sustainable, energy-saving design while providing reliable and durable solutions for commercial and industrial use.

Delivers reliable motor speed control with advanced vector technology and sensorless operation. Optimized for single-phase asynchronous motors, with applications spanning pumps, fans, and industrial conveyors. 750 W power and 4.3 A max output current ensure compatibility with demanding applications.

Supports CANopen, Modbus RTU, and SmartWire-DT for programmable systems integration. Mounts via flange; compact dimensions enable installation where space is restricted. Front panel display and buttons make control and setup accessible for operators.

Built-in EMC filter safeguards performance against radio frequency interference. IP20 rating and robust construction ensure reliable operation in controlled environments. Designed for maximum efficiency across output frequencies up to 50 Hz.

Suited to industrial, laboratory, commercial, and water treatment environments seeking energy efficiency and high performance. Browse more Eaton drives and automation controls in the Variable Frequency Drive category on EnvMart for advanced motion solutions.
