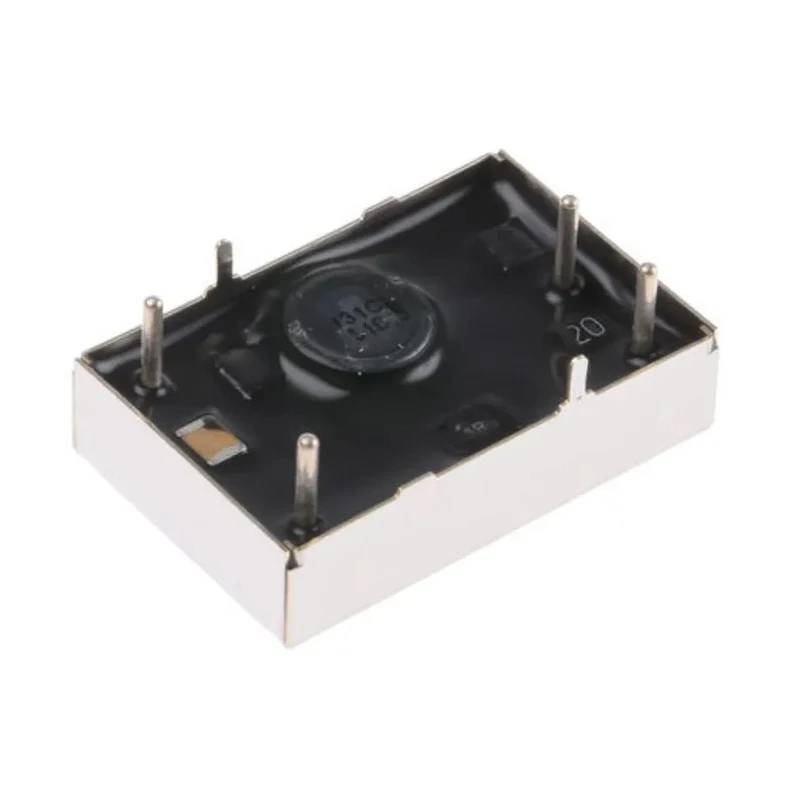

Cosel ZUS1R52412 DC/DC Converter 12V DC 130mA, 18 - 36V DC Input, 1.56W, PCB Mount, Surface, Isolation 500V AC
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters Cosel ZUS DC/DC Converter, 12V dc/ 130 mA, 36V dc |
| Brand | Cosel |
| Efficiency | 71% |
| Length | 27.5mm |
| Model | ZUS1R52412 |
| Depth | 7mm |
| Gross Weight | 10g |
| Width | 27.5mm |
| Mount Type | PCB |
| Series | ZUS |
| Maximum Operating Temperature | 71°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Compliance | CE, RoHS |
| Maximum Output Power | 1.56W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | CE, RoHS |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 130mA |
| Output Voltage Adjustment Range | 12 V dc |
| Isolation Voltage | 500V ac |
Key Features
- Compact isolated DC/DC converter for PCB mounting.
- Delivers regulated 12V DC output at up to 130 mA.
- Accepts a wide DC input range from 18V to 36V, allowing flexible integration in power systems.
- Offers output power up to 1.56 W, suitable for a range of low-power electronics.
- High isolation voltage of 500 V AC between input and output enhances safety and reliability.
- Surface mount package with ultra-thin 7 mm profile saves board space.
- Meets CE and RoHS compliance for electrical safety and hazardous substance restriction.
- Reliable operation from -20°C up to 71°C for demanding environments.
Product Description
The Cosel ZUS1R52412 is an isolated DC/DC converter engineered for applications that demand stable, regulated low-voltage DC power from a variable higher-voltage DC supply. With its compact, surface-mount design, this converter is ideal for space-constrained PCBs in industrial, automation, telecom, instrumentation, and commercial electronic systems.
This unit provides a 12V DC stabilized output with a maximum current rating of 130 mA, supporting a total output power up to 1.56 watts. It features an input voltage range from 18V to 36V DC, allowing it to be paired with various DC bus configurations in both industrial and distributed power architectures.
Electrical isolation between input and output is rated at 500 V AC, which helps protect downstream circuits and increase system resilience against surges and noise. The module is designed for surface-mount assembly, featuring a minimal height of 7 mm, and both length and width of 27.5 mm, supporting dense layout integration on modern PCBs.
The ZUS1R52412’s efficiency is rated at 71%, minimizing heat generation and power waste in energy-sensitive systems. Its single regulated output channel ensures reliable operation even with fluctuating input voltages. Built-in overcurrent protection is included as standard, enhancing operating safety and fault tolerance.
The design fulfills key electrical and environmental standards, with CE and RoHS compliance for global acceptance, and operational reliability across a -20°C to +71°C temperature range. The low EMI design allows its use in precision and noise-sensitive circuits.
Typical use cases include embedded controllers, data acquisition modules, process instruments, PLCs, communication modules, or any embedded platform requiring isolated, regulated 12V DC supply. Industries served include industrial automation, power electronics, laboratory equipment, renewable energy controls, and more.
Trust Cosel quality for long MTBF, robust construction, and easy drop-in installation in new or retrofit PCBs. Explore more DC-DC Converters in the EnvMart catalogue for power supply solutions tailored to your exact application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V DC with a maximum output current of 130 mA.
It accepts a wide input voltage range from 18V to 36V DC, allowing for flexible integration into various power systems.
The maximum output power of this unit is 1.56 watts.
The isolation voltage between the input and output is rated at 500V AC, enhancing safety and reliability.
This model has a length and width of 27.5 mm and a depth of 7 mm, making it suitable for space-constrained applications.
The efficiency of the ZUS1R52412 is rated at 71%, which helps minimize heat generation and power waste.
It can reliably operate in temperatures ranging from -20°C to +71°C, accommodating various environmental conditions.
This converter meets CE and RoHS compliance standards, ensuring it adheres to electrical safety and hazardous substance restrictions.
It is designed for PCB mounting, making it suitable for integration into printed circuit boards.
Yes, it includes built-in overcurrent protection to enhance operating safety and fault tolerance.
Typical applications include embedded controllers, data acquisition modules, and communication modules requiring isolated, regulated 12V DC supply.
The gross weight of this unit is 10 grams, making it lightweight for easy integration into various systems.
