Serial Converter RS 485 TO USB
Specifications
| Output | Rs485 (Bi-Directional) |
|---|---|
| Input | USB (Bi-Directional) |
| Isolation | 1000VDC Optical Isolation between input and Output. |
| Supply | 230 VAC/110 VAC 10 % single Phase 50 Hz. |
| Baud rate | Autobaud selection from 300 to 115200 baud |
| Termination | RS485 and supply connections on screw type USB connection - USB 2.0 B Type Female Connection. |
| Cabinat | DIN rail mount ABS moulded 12 terminal box Size 70 x 60 x 114 mm (HxWxD) |
Key Features
- High performance
- Easy maintenance
Product Description

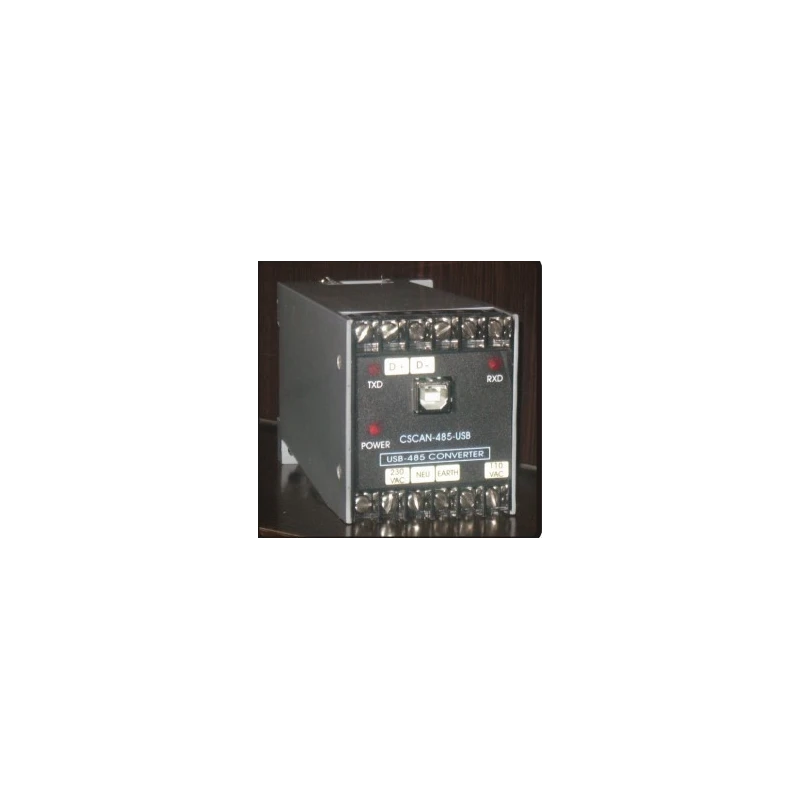

The CSCAN485USB is a USB to Rs485 Bidirectional Converter. Nowadays Most Desktop Computers And Laptops Provide USB Port Instead Of RS232 COM ports. CSCAN485USB Provides Solution To This Problem. Its USB Port Is Connected To the computer and the RS485 port is to the field device. This converter is designed for Industrial applications. The CSCAN485USB provides isolation between USB and RS485 ports.
- Easy installation
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output type of this converter is RS485, which is bi-directional.
It supports a USB input, which is also bi-directional.
This model features 1000VDC optical isolation between the input and output.
The supply voltage requirement is 230 VAC or 110 VAC with a tolerance of 10%, operating at 50 Hz.
It features autobaud selection for baud rates ranging from 300 to 115200 baud.
The RS485 and supply connections are made using screw-type terminals, along with a USB 2.0 B Type female connection.
The dimensions of the DIN rail mount ABS moulded terminal box are 70 mm in height, 60 mm in width, and 114 mm in depth.
Yes, it is designed for industrial applications, providing a solution for connecting USB ports to RS485 field devices.
This model supports DIN rail mounting.
The converter is designed for easy installation, facilitating a straightforward connection between USB and RS485 ports.
The terminal box is made from ABS moulded material.
Yes, it provides electrical isolation between the USB and RS485 ports, enhancing safety in operation.
