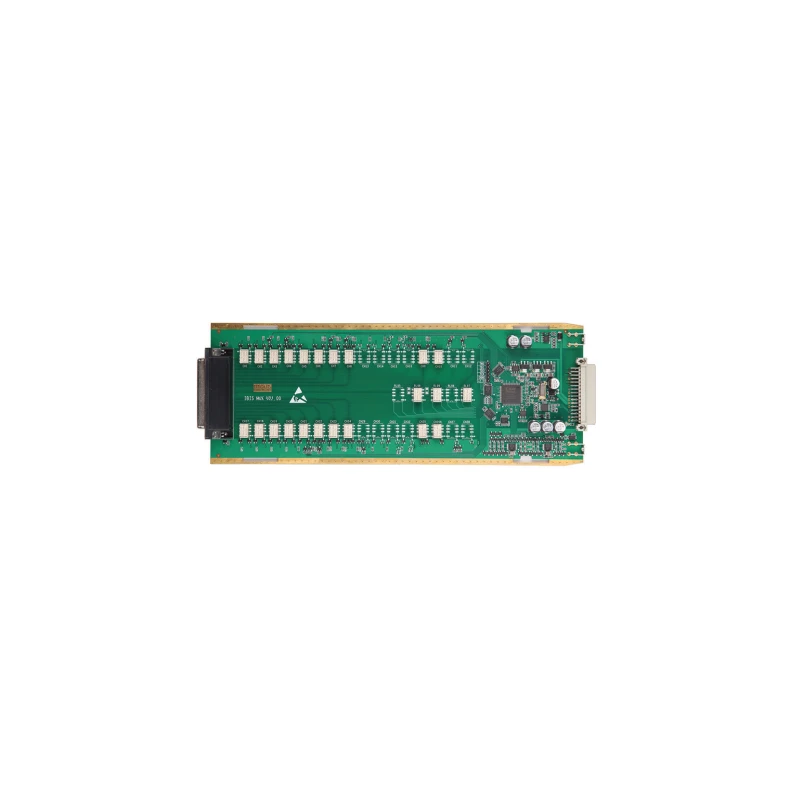

RIGOL MC3416 16-Channel Actuator Module
Specifications
| Country of Origin | India |
|---|---|
| Brand | Rigol |
| Operating Temperature Range | 0 to 55 °C |
| Model | MC3416 |
| Isolation | Greater than 10 GΩ |
| Bandwidth | 1 MHz |
| Current Rating | 2 Arms |
| Terminal Block | M3TB16 |
| Number Of Channels | 16 |
| Product Condition | New |
| MPN | MC3416 |
| Relay Type | SPDT (Single Pole Double Throw) |
| Switching Speed | 200 Ch/s |
| Maximum Voltage Rating | 300 Vrms |
| Offset Voltage | Less than 3 μV |
| Initial Closed Channel Resistance | Less than 0.1 Ω |
| Switching Function | Normally-Open (NO) / Normally-Closed (NC) |
| Power Handling Per Channel | 60 VA |
Key Features
Rigol MC3416 16-Channel SPDT Actuator Module for automated signal routing and external device control.
- Features 16 independent SPDT channels for versatile switching applications.
- Supports both Normally-Open (NO) and Normally-Closed (NC) switching functions.
- Delivers fast switching speed of up to 200 channels per second, optimizing test throughput.
- Operates safely with voltage ratings up to 300 Vrms and current handling up to 2 Arms.
- Offers robust power handling capability up to 60 VA per channel.
- Equipped with terminal block M3TB16 for secure connectivity in test environments.
- Ensures signal integrity with 1 MHz bandwidth and isolation greater than 10 GΩ.
- Initial closed channel resistance below 0.1 Ω for minimal signal loss.
- Designed for operation from 0°C to 55°C, suitable for laboratory and industrial automation.
Product Description
Rigol MC3416 16-Channel SPDT Actuator Module is an advanced signal switching solution, engineered for automated test setups and external device control in laboratory, R&D, production, and industrial environments. The MC3416 offers 16 independently controlled SPDT (Single Pole Double Throw) channels, enabling flexible routing of electrical signals within sophisticated test and measurement systems.
- The module allows fast switching operations up to 200 channels per second (Ch/s), supporting both Normally-Open (NO) and Normally-Closed (NC) relay modes for comprehensive application support.
- Each channel is rated for up to 300 Vrms and 2 Arms, facilitating safe signal switching of high-voltage and high-current circuits, with power handling up to 60 VA per channel.
- Robust connectivity is ensured via an M3TB16 terminal block, supporting reliable wire termination in demanding environments.
- Technical highlights include a wide 1 MHz bandwidth for high-frequency signals, offset voltage below 3 μV, and initial channel resistance less than 0.1 Ω, maintaining excellent signal fidelity.
- Superior isolation (greater than 10 GΩ) and wide operating temperature range (0°C to 55°C) provide resilience and stability in long-duration automated test sequences.
- The MC3416 is ideally suited for use in automated test equipment, device validation labs, industrial automation rigs, and advanced production lines requiring precise channel switching and robust electrical isolation.
Typical applications include industrial electronics labs, automated quality assurance testing, manufacturing system integration, and R&D signal routing. Discover more Rigol signal modules and automation solutions in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol MC3416 has a fast switching speed of up to 200 channels per second (Ch/s), optimizing test throughput for various applications.
The MC3416 supports voltage ratings up to 300 Vrms and current handling up to 2 Arms, making it suitable for high-voltage and high-current applications.
The MC3416 features 16 independent SPDT channels, allowing for versatile switching applications in automated test setups.
The MC3416 is designed to operate within a temperature range of 0°C to 55°C, making it suitable for both laboratory and industrial environments.
The MC3416 offers superior isolation greater than 10 GΩ, ensuring robust signal integrity and protection in automated test setups.
The MC3416 utilizes SPDT (Single Pole Double Throw) relays, supporting both Normally-Open (NO) and Normally-Closed (NC) switching functions.
The MC3416 features a bandwidth of 1 MHz, allowing it to handle high-frequency signals effectively.
The MC3416 has an initial closed channel resistance of less than 0.1 Ω, which helps maintain excellent signal fidelity and minimizes signal loss.
The MC3416 is equipped with an M3TB16 terminal block, ensuring secure and reliable connectivity in demanding test environments.
The MC3416 is ideal for use in automated test equipment, device validation labs, industrial automation rigs, and advanced production lines requiring precise channel switching.
