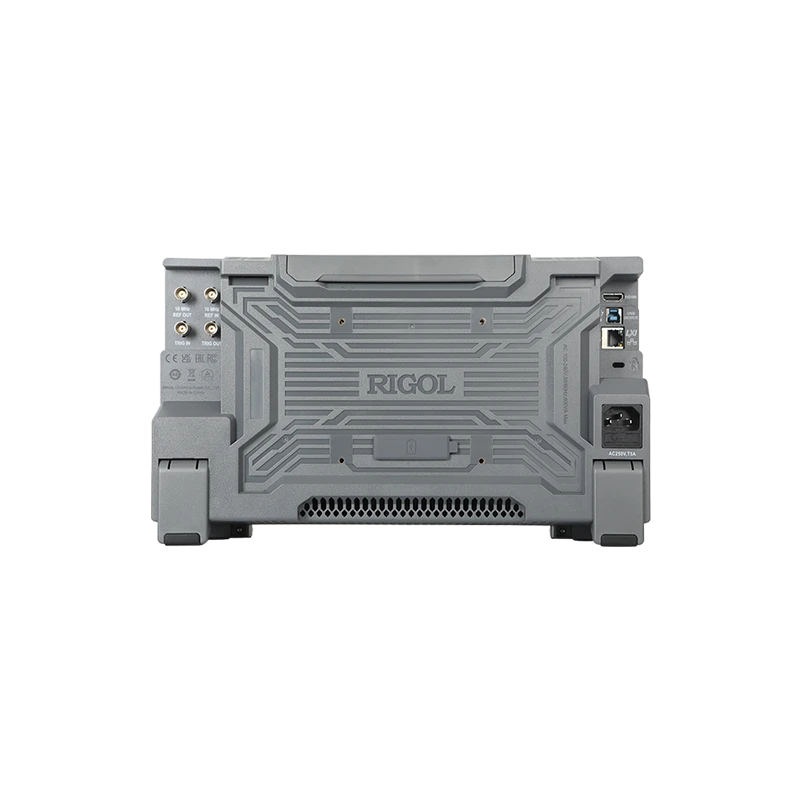

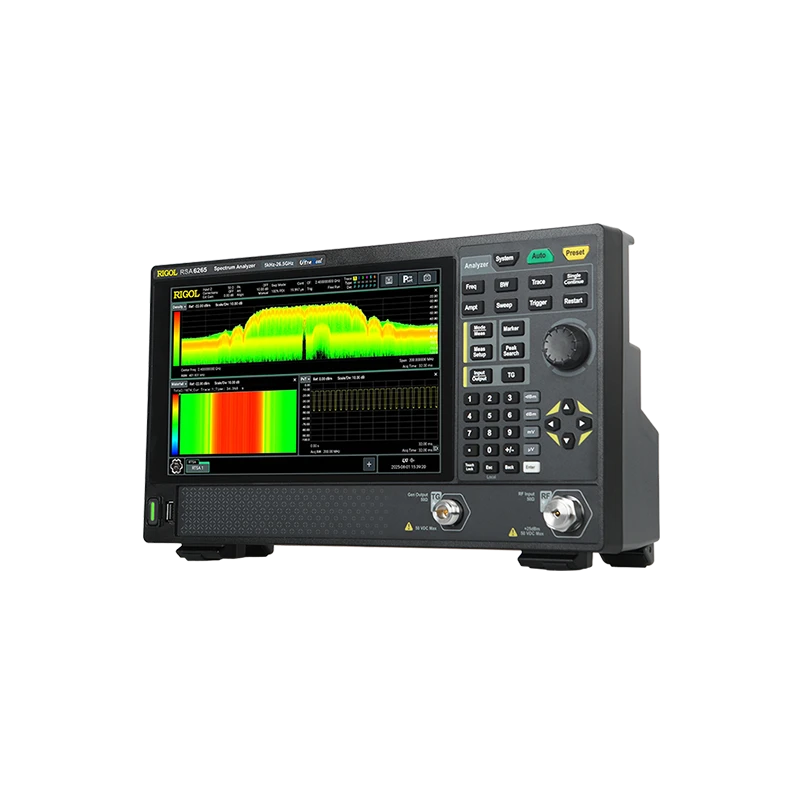

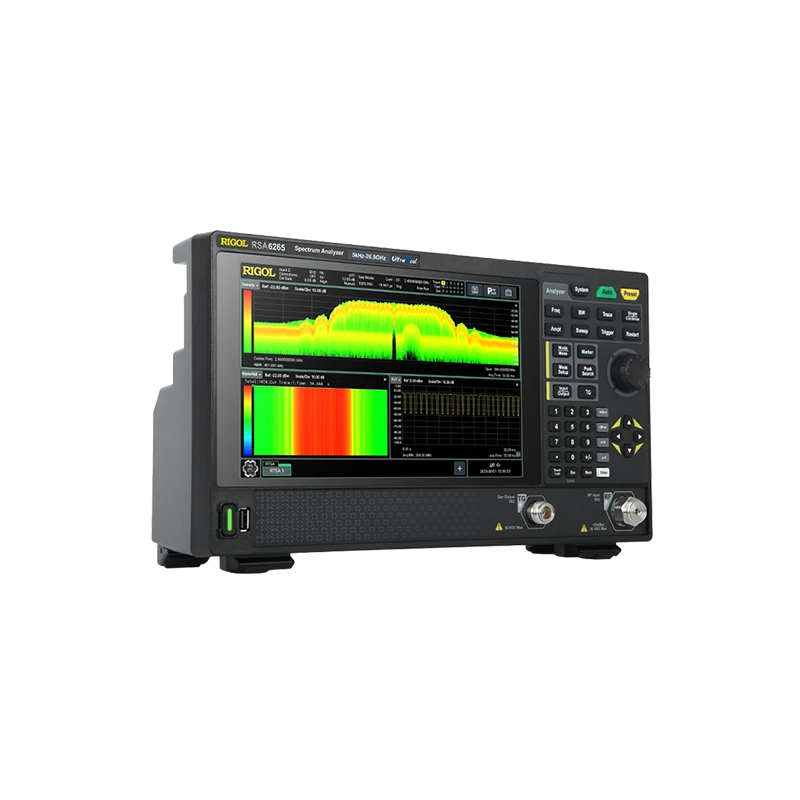

RIGOL RSA6000 Series Real-Time Spectrum Analyzer | RSA6085 | RSA6140 | RSA6265
Model
Frequency Range
Resolution Bandwidth
Phase Noise
Specifications
| Frequency range | 5 kHz to 26.5 GHz |
|---|---|
| Brand | Rigol |
| Amplitude Range | DANL to +25 dBm |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz (1-3-10 sequence) |
| Video Bandwidth (VBW) | 1 Hz to 10 MHz |
| Phase Noise | Up to -108 dBc/Hz (typ.) @ 10 kHz offset |
| Real-Time Analysis Bandwidth | 80 MHz (standard), 200 MHz (optional) |
| Sweep Speed | Up to 4 THz/s |
| Displayed Average Noise Level (DANL) | -163 dBm (typ., PA on) |
Key Features
Rigol RSA6000 Series Real-Time Spectrum Analyzer, wideband 5 kHz–26.5 GHz platform, for advanced RF testing and diagnostics.
- Covers frequency range from 5 kHz to 26.5 GHz for comprehensive RF measurements.
- 80 MHz real-time analysis bandwidth (standard) with 200 MHz optional upgrade for advanced signal capture.
- Multiple operating modes: GPSA, RTSA, VSA, EMI, ADM, adaptable for various analysis needs.
- Outstanding DANL to -163 dBm, and phase noise up to -108 dBc/Hz for precision applications.
- High sweep speed of up to 4 THz/s (with 200 MHz option).
- 10.1-inch capacitive multi-touch screen for intuitive interaction and multi-window display.
- 128 GB internal storage for large data capture and SCPI remote control compatibility.
- Versatile connectivity: USB, LAN (LXI), and HDMI interfaces for integration and remote operation.
- Robust EMI testing (CISPR 16-1-1), quasi-peak and RMS detectors, with automated limit testing and reporting.
- Supports wide range of digital and analog modulation schemes for signal analysis.
Product Description
The RIGOL RSA6000 Series Real-Time Spectrum Analyzer, available in RSA6085, RSA6140, and RSA6265 models, is a high-performance RF analysis platform designed for wireless communication testing, vector signal analysis, EMI and EMC diagnostics, spectrum monitoring, and advanced research applications. It combines real-time spectrum analysis with general-purpose swept-spectrum analysis for detecting both continuous and intermittent RF signals.
The RSA6085 provides frequency coverage from 5 kHz to 8.5 GHz, the RSA6140 extends coverage up to 14 GHz, and the RSA6265 supports measurements up to 26.5 GHz. With real-time analysis bandwidth expandable to 200 MHz, the series can capture broadband communication signals, transient interference, frequency-hopping activity, and short-duration spectrum events.
- Frequency range from 5 kHz to 8.5 GHz on RSA6085
- Frequency range from 5 kHz to 14 GHz on RSA6140
- Frequency range from 5 kHz to 26.5 GHz on RSA6265
- Real-time spectrum-analysis bandwidth expandable to 200 MHz
- Vector demodulation bandwidth up to 200 MHz
- Phase noise as low as −108 dBc/Hz at 1 GHz and 10 kHz offset
- Real-time spectrum-analysis and swept-spectrum modes
- Optional vector signal analysis
- Optional analog demodulation
- Optional EMI measurement functions
- Built-in tracking-generator capability
- Frequency-mask triggering for transient-signal detection
- Multiple real-time signal-display modes
- 10.1-inch capacitive touchscreen
- USB, LAN, and HDMI connectivity
- Standard SCPI command support
- Compatible with automated test systems
Optional Vector Signal Analysis software supports in-depth analysis of broadband digitally modulated signals. Optional Analog Demodulation software provides analysis for traditional modulation formats, while specialised applications support Bluetooth Low Energy, LoRa, Zigbee, phase-noise, and pulse measurements.
The optional EMI measurement application works with CISPR-compatible filters to support conducted and radiated emissions pre-compliance testing. It helps engineers locate electromagnetic interference sources, compare results with applicable limits, and improve product designs before formal EMC certification.
Frequency-mask triggering helps capture intermittent or unexpected signals that meet user-defined conditions. The wide real-time bandwidth and multiple display modes allow engineers to view relationships between frequency, power, and time, making it easier to identify transient interference and changing spectrum behaviour.
The 10.1-inch capacitive touchscreen provides convenient control of frequency, span, bandwidth, amplitude, trigger, marker, trace, and analysis settings. USB, LAN, HDMI, and SCPI support enable remote operation and integration with laboratory networks, manufacturing systems, and automated test equipment.
Typical applications include RF component testing, wireless-infrastructure development, IoT and embedded-system validation, EMI and EMC compliance testing, automotive electronics, aerospace and defence signal analysis, communication-system troubleshooting, manufacturing quality assurance, spectrum monitoring, and laboratory research.
Available Models: RSA6085 | RSA6140 | RSA6265
Explore more RIGOL real-time spectrum analyzers, RF testing equipment, EMI measurement instruments, and electronic test solutions in the Measuring & Testing Instruments category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RIGOL RSA6000 Series Real-Time Spectrum Analyzer offers a frequency range from 5 kHz to 26.5 GHz, depending on the model. The RSA6085 covers up to 8.5 GHz, the RSA6140 extends to 14 GHz, and the RSA6265 supports the full range up to 26.5 GHz.
The RIGOL RSA6000 Series has a standard real-time analysis bandwidth of 80 MHz, which can be upgraded to 200 MHz for advanced signal capture.
The maximum sweep speed of the RIGOL RSA6000 Series is up to 4 THz/s when the optional 200 MHz bandwidth is utilized.
The RIGOL RSA6000 Series supports a wide range of digital and analog modulation schemes for signal analysis, including options for vector signal analysis and analog demodulation.
The displayed average noise level (DANL) for the RIGOL RSA6000 Series is typically -163 dBm with the preamplifier on.
The RIGOL RSA6000 Series features versatile connectivity options, including USB, LAN (LXI), and HDMI interfaces, allowing for integration and remote operation.
The RIGOL RSA6000 Series is equipped with a 10.1-inch capacitive multi-touch screen that allows for intuitive interaction and multi-window display.
The RIGOL RSA6000 Series is suitable for various applications including RF component testing, wireless infrastructure development, EMI and EMC compliance testing, and spectrum monitoring.
