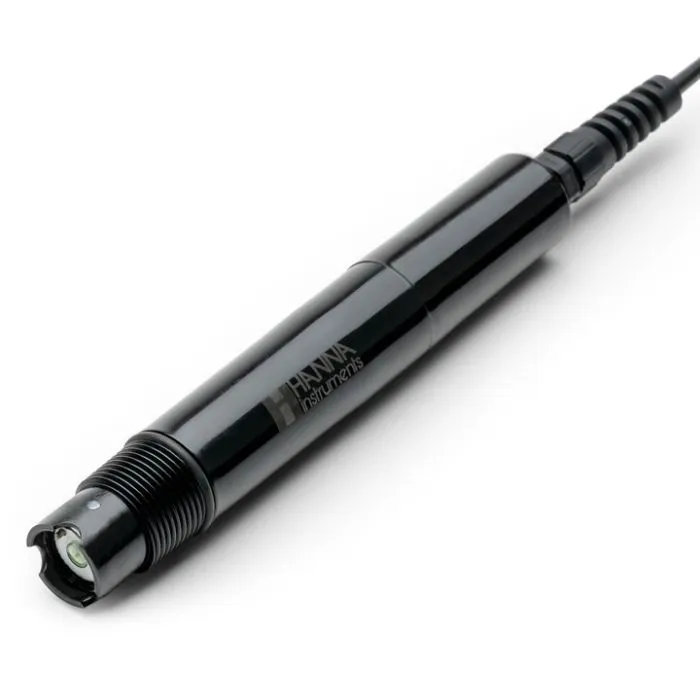

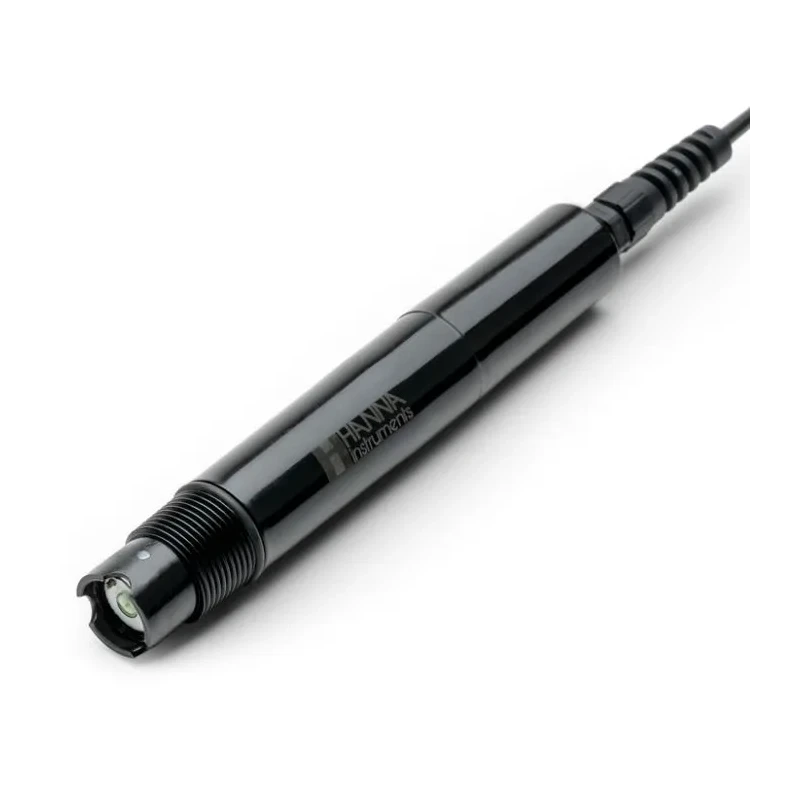

Hanna HI1000 Series Process Digital pH Probe-5m (16.4')-HT - High Temperature-Ceramic
Specifications
| Country of Origin | India |
|---|---|
| Measurement Range | 0–12 pH (LT), 0–14 pH (HT), 0–10 pH (HF) |
| Body Material | PVDF |
| Outer Diameter | 22.5 mm |
| Model | HI1000 |
| Cable Length | 5 m |
| Temperature Sensor | Pt100 |
| Connector Type | Direct wire connection |
| Reference Cell Type | Double Junction |

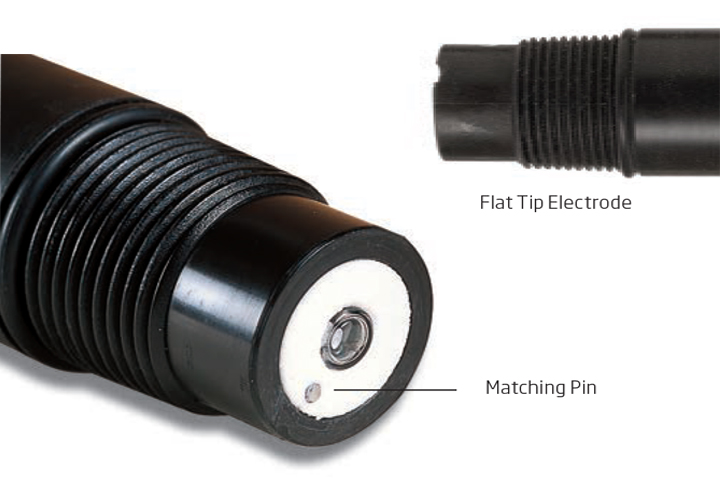

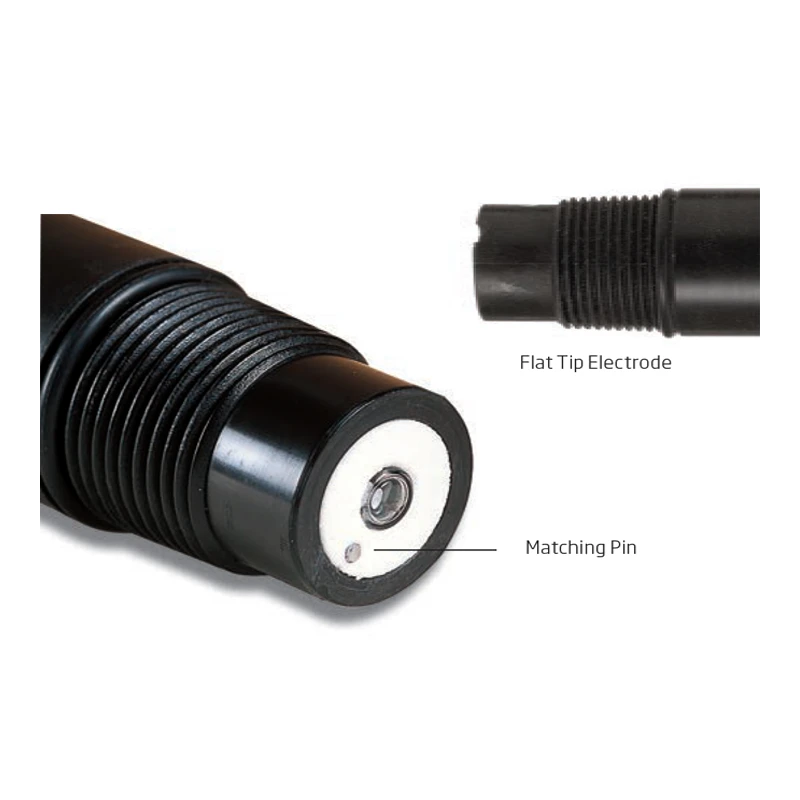

| Matching Pin | yes |
| Glass Type | LT (low temp), HT (high temp), HF (hydrofluoric acid) |
| Max Pressure | 6 bar |

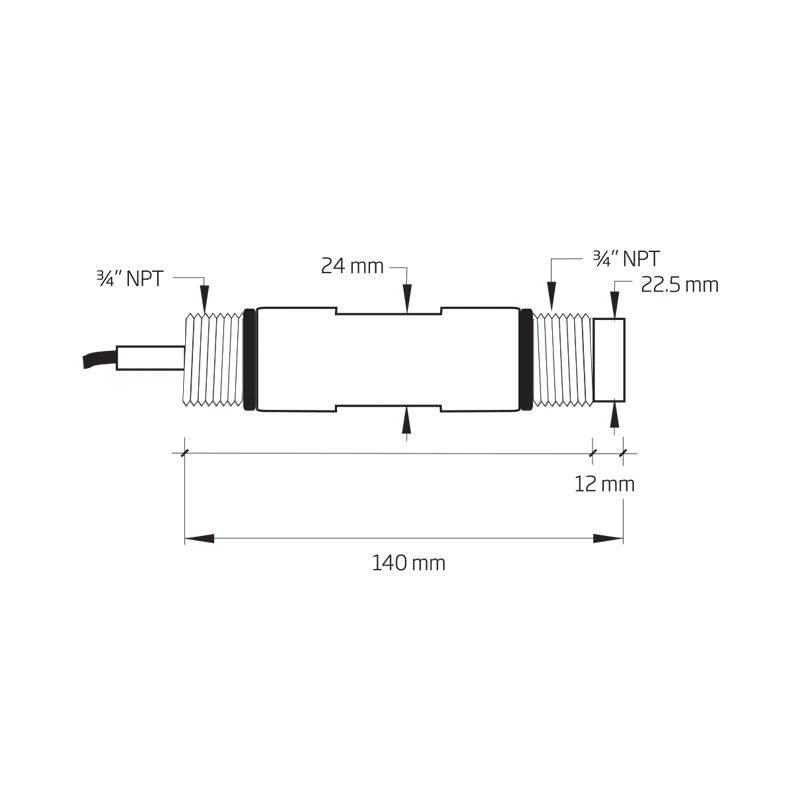

| Overall Length | 140 mm |
| Product Condition | New |
| MPN | HI1000 |

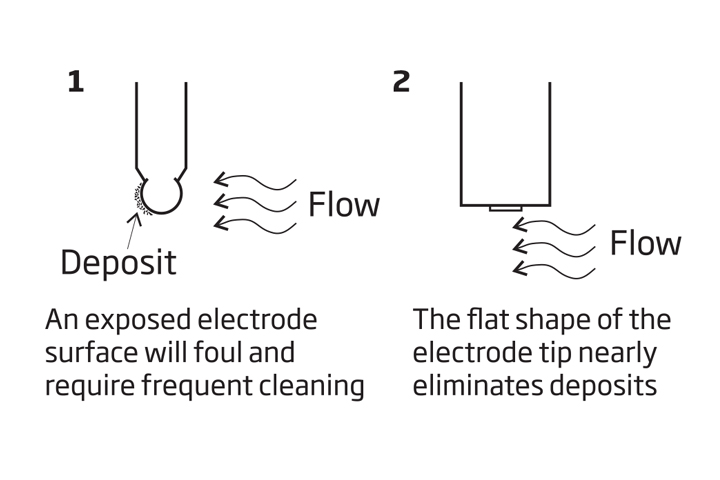

| Tip/Shape | Flat |
| Electrolyte Type | Polymer |
| Reference Junction | Ceramic or PTFE (selectable) |
| Environment Temperature Range | -5 to 80 ºC (LT), 0 to 100 ºC (HT) |
Key Features
HI1000 Series Process Digital pH Probe with 5m cable, high temperature compatibility, and ceramic junction for industrial monitoring.
- Features a ceramic or PTFE reference junction selection for versatility.
- Equipped with a built-in pt100 temperature sensor for accurate compensation.
- Constructed with a chemically resistant PVDF body and 3/4” NPT threads for easy insertion mounting.
- Transmits data digitally via RS485 for interference-free performance.
- Temperature compatibility: LT glass -5 to 80 ºC, HT glass 0 to 100 ºC, HF glass special for hydrofluoric acid.
- Double junction reference cell for enhanced measurement stability.
- Capable of both in-line and submersion mounting with probe holder.
- Measurement ranges: 0 to 12 pH (LT), 0 to 14 pH (HT), 0 to 10 pH (HF).
- Maximum pressure support up to 6 bar (87 psi).
- PVDV body offers excellent chemical resistance in process environments.
Product Description
The HI1000 Series Process Digital pH Probe with 5m cable offers high reliability in industrial and process monitoring applications. This advanced probe is built with a chemically resistant PVDF body, making it suitable for demanding environments. It is compatible with both ceramic and PTFE reference junctions and utilizes glass types designed for low temperature (LT), high temperature (HT), and hydrofluoric acid (HF) conditions for maximum versatility.
This probe features an integrated pt100 temperature sensor for real-time temperature compensation and delivers digital data transmission via an RS485 interface, thereby eliminating issues related to electrical interference common with analog probes. The 3/4” NPT threaded connector at the front ensures ease of insertion or submersion mounting, supported by the robust construction of the probe body with an overall length of 140 mm and an outer diameter of 22.5 mm.
- Choice of ceramic or PTFE reference junction based on process requirements.
- Suitable for a wide range of pH measurements: 0–12 pH with LT glass, 0–14 pH with HT glass, and 0–10 pH with HF glass.
- Supports process pressures up to 6 bar (87 psi).
- Integrated pt100 temperature sensor enhances measurement accuracy across -5 to 100 ºC operating ranges.
- Polymer electrolyte and double junction design prevent contamination and extend probe life.
Commonly used in water treatment plants, chemical manufacturing, food and beverage processing, and industrial laboratory monitoring. Compatible with HI510 Universal Process Controller systems. Designed for long-term, stable operation in harsh environments.
Explore more industrial and laboratory probes in our 'Electrodes & Sensors' category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HI1000 Series pH probe is compatible with various glass types, offering temperature ranges from -5 to 80 ºC for low temperature (LT) glass, 0 to 100 ºC for high temperature (HT) glass, and special hydrofluoric acid (HF) glass.
The RS485 output allows for digital data transmission, which helps eliminate electrical interference that can occur with analog probes, ensuring more reliable and accurate readings.
The probe features a chemically resistant PVDF body, ensuring durability in harsh environments, and includes a ceramic or PTFE reference junction for versatility.
Yes, the HI1000 Series pH probe is designed with a special HF glass suitable for measuring pH in hydrofluoric acid applications.
The HI1000 Series pH probe can support process pressures up to 6 bar (87 psi), making it suitable for various industrial applications.
The probe is equipped with an integrated pt100 temperature sensor that provides real-time temperature compensation for enhanced measurement accuracy.
The HI1000 Series probe measures pH in three ranges: 0 to 12 pH with LT glass, 0 to 14 pH with HT glass, and 0 to 10 pH with HF glass.
Yes, the HI1000 Series pH probe is capable of both in-line and submersion mounting, supported by a probe holder for versatility in installation.
This probe is commonly used in water treatment plants, chemical manufacturing, food and beverage processing, and industrial laboratory monitoring.
You can explore more about the HI1000 Series pH probe and make a purchase through our 'Electrodes & Sensors' category on EnvMart.
