Process Digital pH Probe HI1016-1850, HI1000 Series, PVDF, LT Glass, 50m, RS485 | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna HI1000 Series Process Digital pH Probe-50m (164.0')-LT - Low Temperature-Ceramic

Name: Hanna HI1000 Series Process Digital pH Probe-50m (164.0')-LT - Low Temperature-Ceramic
Brand: Hanna
SKU: 72329
Price: 1231.79 USD
Availability: InStock



Category pH Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	LT glass: 0 to 12 pH
Body Material	PVDF
Outer Diameter	22.5 mm
Model	HI1016-1850
Cable Length	50 m
Temperature Sensor	Pt100
Max. Pressure	6 bar
Reference Cell Type	Double Junction

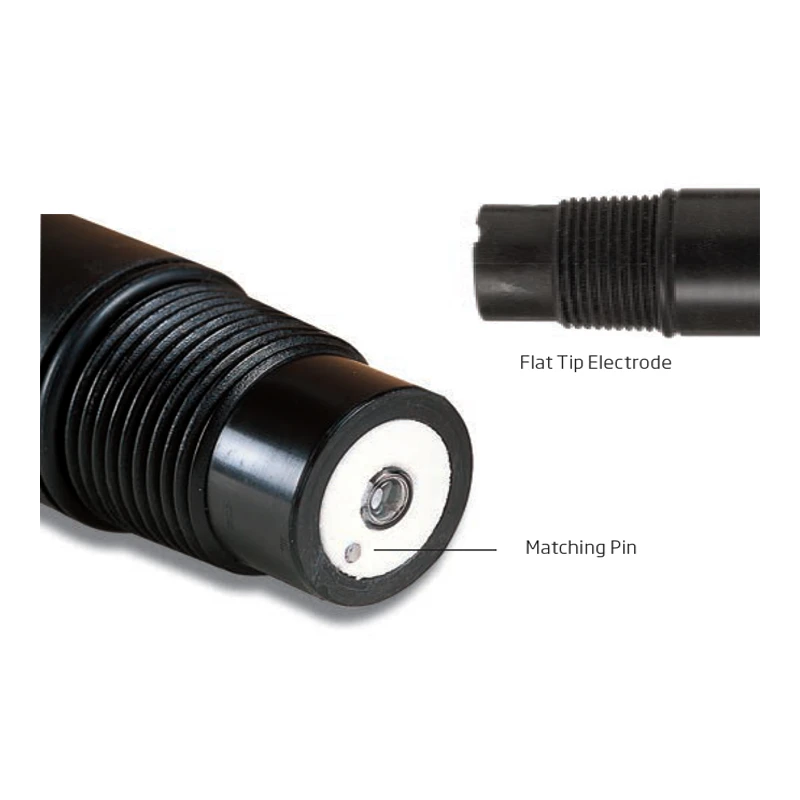

Matching Pin	yes
Glass Type	low temperature (LT)
Overall Length	140 mm
Temperature Measuring Range	-5 to 80 °C (23 to 156 °F)
Product Condition	New
MPN	HI1016-1850
Tip/Shape	Flat
Electrolyte Type	Polymer
Probe Mounting	3/4 inch NPT threaded connection
Reference Junction Type	Ceramic
Body Series	HI1000
Unit Max. Pressure	87 psi

Key Features

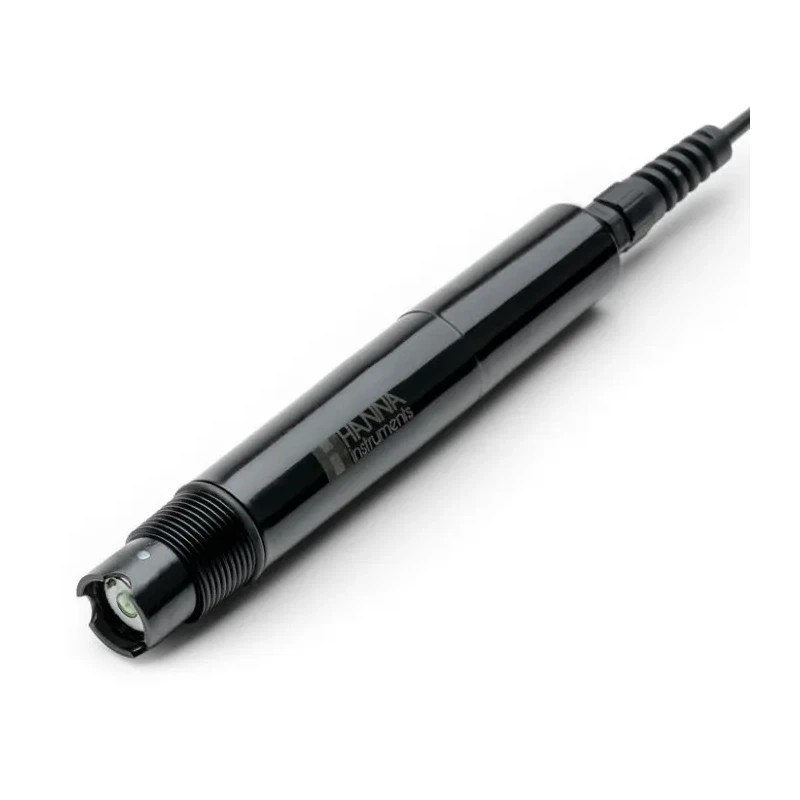

Process Digital pH Probe HI1016-1850 from the HI1000 Series offers high-performance pH measurement for industrial monitoring and control applications.

Measures pH in process applications with digital accuracy and RS485 output.
Built-in PT100 temperature sensor for automatic compensation and reliable readings.
PVDF chemically resistant body ensures operational durability in harsh environments.
Equipped with a flat low temperature glass tip for precise results between -5°C and 80°C.
Standard ceramic reference junction delivers stable and accurate measurements.
Double junction reference system enhances interference resistance and probe longevity.
3/4" NPT threaded connection allows for inline or submersion mounting options.
Designed for compatibility with HI510 Universal Process Controller.
Direct wire RS485 connection provides immunity to electrical interference.

Product Description

The Process Digital pH Probe HI1016-1850 from the HI1000 Series is a robust solution designed for precise pH monitoring in industrial process environments. This advanced sensor features a PVDF body with a 3/4" NPT threaded connection, allowing easy installation for in-line or submersion applications. Engineered with a flat low temperature glass tip and a ceramic reference junction, this probe delivers accurate and reliable measurements from -5°C to 80°C, ideal for a wide range of chemical, water treatment, and process control scenarios.

Equipped with a built-in PT100 temperature sensor for continuous temperature compensation, ensuring measurement accuracy.
PVCDF construction offers superior chemical resistance and operational longevity even in harsh process conditions.
Digital RS485 output provides immunity to electrical interferences associated with analog probes, facilitating accurate data transmission.
Double junction reference system and direct wire configuration enhance both measurement stability and sensor lifespan.

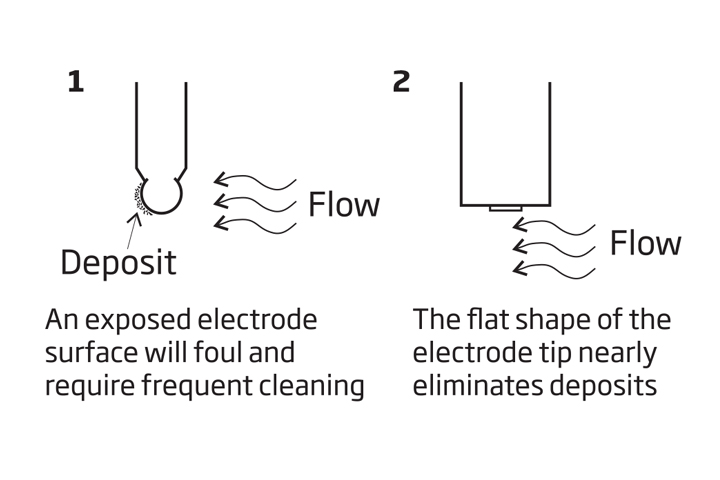

Flat tip design supports efficient maintenance and reduces fouling in demanding environments.

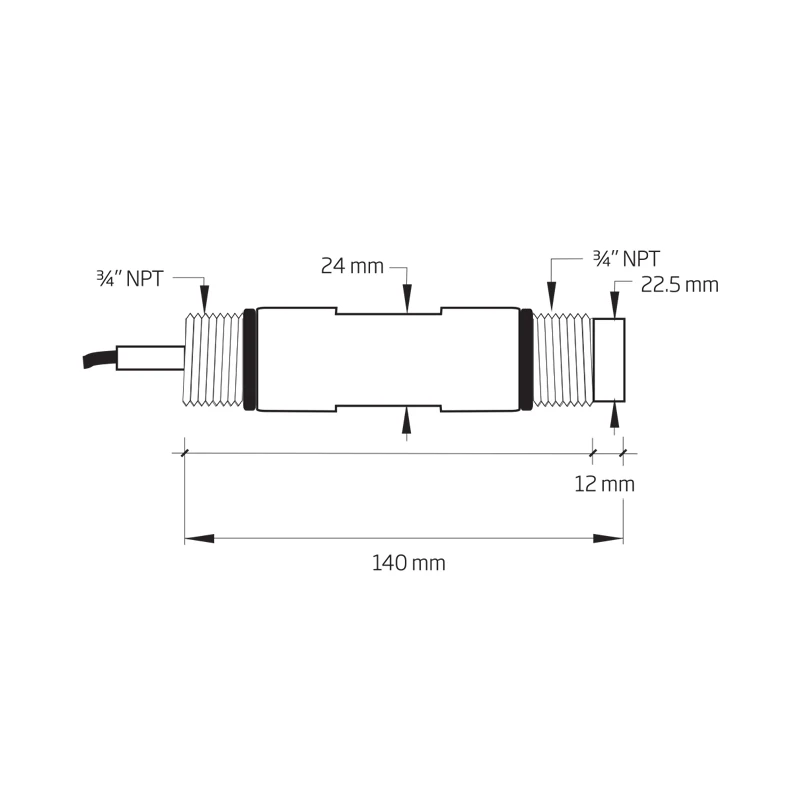

Measurement range: LT glass 0 to 12 pH; maximum pressure 6 bar (87 psi); overall probe length 140 mm and outer diameter 22.5 mm.
Compatible with HI510 Universal Process Controller for integration with various process control systems.
Choice of glass types available in series (LT, HT, HF); quoted model is low temperature/ceramic reference variant (HI1016-1850).

Ideally suited for applications in industrial water treatment, chemical process monitoring, laboratory automation, food & beverage, pharmaceuticals, and environmental control. Enhance your measurement reliability and operational efficiency with this high-quality industrial digital pH probe.
