Hanna HI1000 Series Process Digital pH Probe-50m (164.0')-LT - Low Temperature-PTFE
Specifications
| Country of Origin | India |
|---|---|
| Body Material | PVDF |
| Outer Diameter | 22.5 mm |
| Model | HI1000 Series |
| Cable Length | 50 m |
| Temperature Sensor | Pt100 |
| Connector Type | Direct wire connection |
| Reference Cell Type | Double Junction |
| Type of Electrolyte | polymer |
| Tip / Shape | flat |
| Glass Type | LT (low temperature), HT (high temperature), or HF (hydrofluoric acid) |
| Maximum Pressure | 6 bar 87 psi |
| Probe type | Process Digital pH Probe |
| Product Condition | New |
| MPN | HI1000 Series |
| Body Length / Overall Length | 140 mm |
| Reference Junction | PTFE (optional ceramic) |
| Measurement Range (LT Glass) | 0 to 12 pH |
| Measurement Range (HT Glass) | 0 to 14 pH |
| Measurement Range (HF Glass) | 0 to 10 pH |
| Environment (LT Glass) | -5 to 80 °C (23 to 156 °F) |
Key Features
HI1000 Series Process Digital pH Probe designed for industrial and laboratory process monitoring, featuring a 50m cable, low temperature glass, PTFE junction, and robust chemically resistant PVDF body.
- Digital pH probe suitable for industrial process and laboratory use.
- Equipped with built-in PT100 temperature sensor for precise measurements.
- Chemically resistant PVDF body with 3/4” NPT threaded connection for flexible mounting.
- Offers choices of ceramic or PTFE reference junctions and various glass types (LT/HT/HF).
- RS485 digital output immune to electrical interference, supports remote data transmission.
- Compatible with HI510 Universal Process Controller for advanced monitoring applications.
- Measurement range (LT): 0 to 12 pH; temperature (LT): -5 to 80°C for low temperature use.

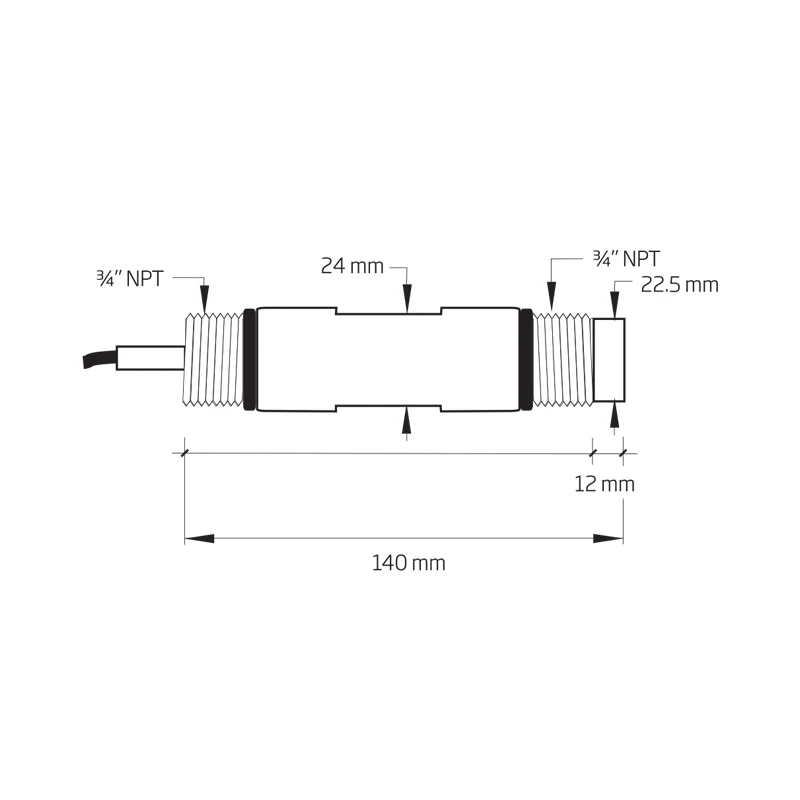

- Body length 140 mm; outer diameter 22.5 mm; flat tip design for process environments.
- Maximum operating pressure: 6 bar (87 psi); double junction reference cell for stability.
Product Description
The HI1000 Series Process Digital pH Probe is engineered for robust industrial and laboratory process control, offering precise pH monitoring over long wiring distances (50m/164.0 ft). This advanced sensor features a low temperature (LT) glass, a chemically resistant PVDF body with 3/4" NPT thread for in-line or submersion mounting, and a double junction reference with PTFE for aggressive environments. The integrated PT100 temperature sensor ensures high accuracy by providing real-time temperature compensation, while the digital RS485 output guarantees stable signal transmission, even in electrically noisy settings.
- Digital interface (RS485) ensures data integrity and interference immunity, making it ideal for industrial automation systems.
- Compatible with HI510 Universal Process Controller for versatile process integration.
- Choice of reference junctions (ceramic or PTFE) and glass types (LT, HT, HF) for application-specific customization.
- Polymer type electrolyte and double junction reference design for chemical stability.
- Direct wire connection simplifies installation and prevents signal degradation over long distances.

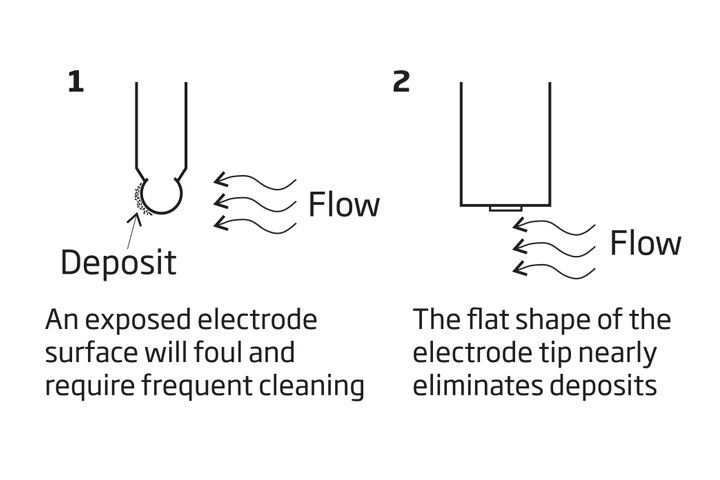

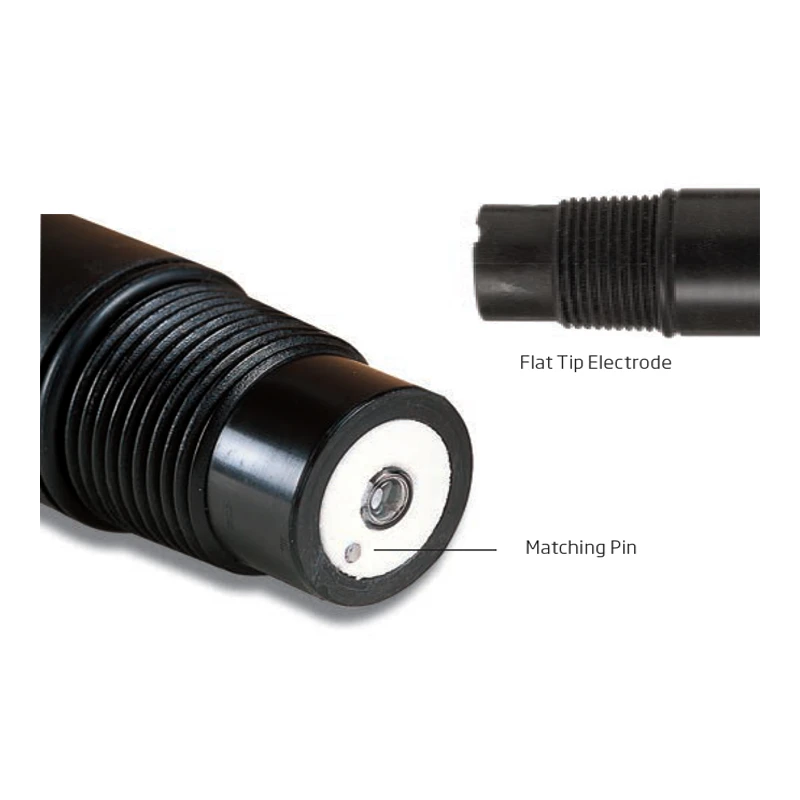

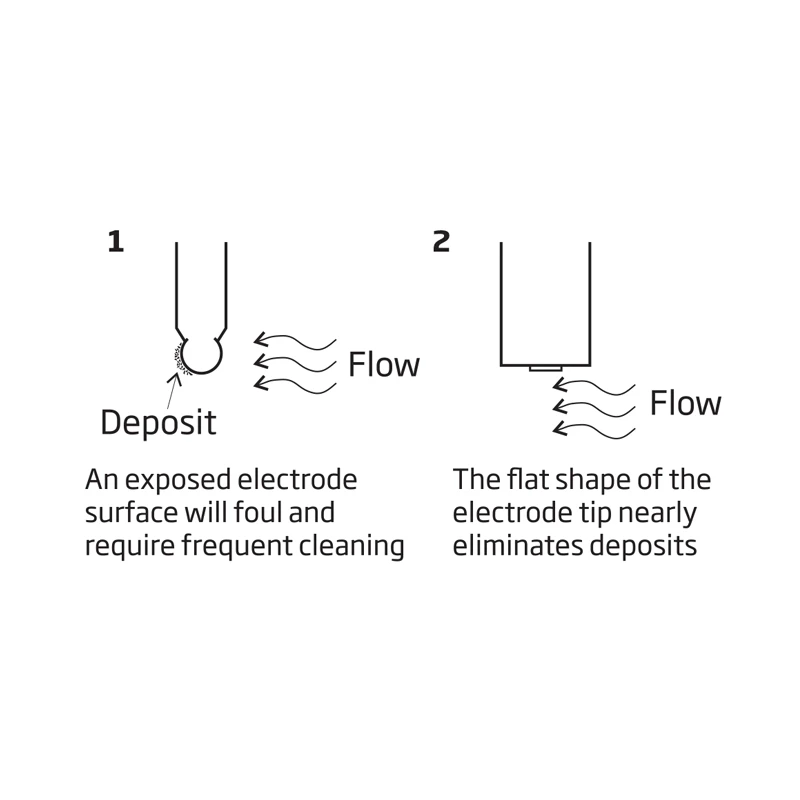

- Flat tip architecture provides high-quality measurements in demanding process streams.
- Operational range (LT glass): pH 0–12, temperature -5 to 80°C; maximum pressure 6 bar (87 psi).
- Overall body length: 140 mm, outer diameter: 22.5 mm, designed for durable field use.
- Typical industrial applications: water treatment, process control, chemical plants, wastewater, laboratory automation, and manufacturing operations.
The HI1000 Series probe is built to handle harsh chemical and physical environments, offering high reliability for continuous industrial pH measurement. Choose this advanced sensor solution to boost accuracy, reliability, and durability in your process monitoring system.
Explore more industrial and laboratory pH probes and automation accessories in the pH Electrodes & Industrial Sensors category on EnvMart.
