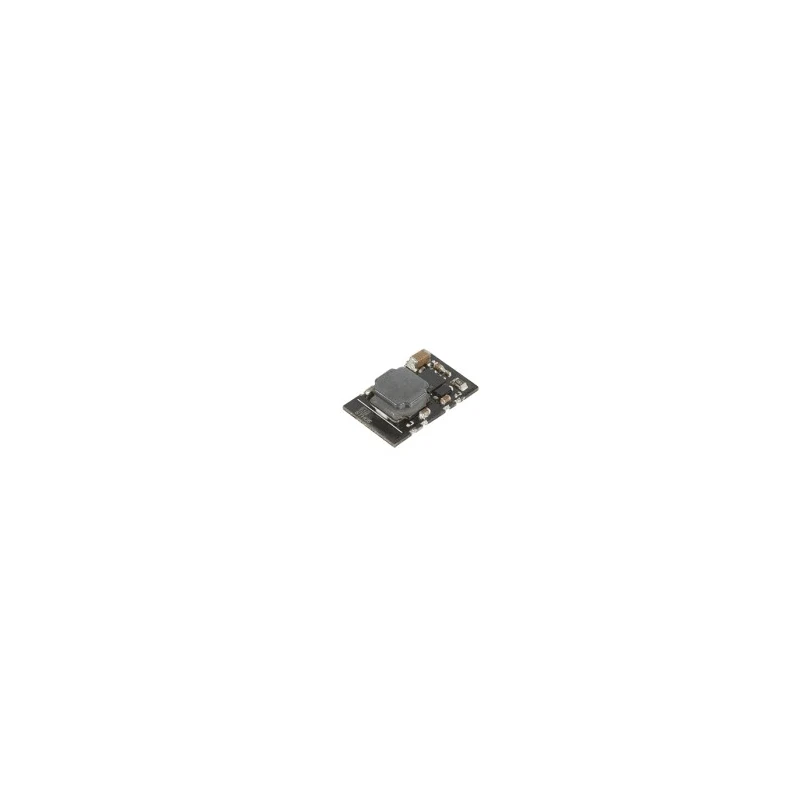

XP Power DC/DC Switching Regulator Surface Mount 15V DC Output Voltage 72V DC Max Input STH0548S15

XP Power STH0548S15 DC/DC Switching Regulator Surface Mount is an advanced electronic power supply component designed for industrial, commercial, and laboratory applications requiring stable DC voltage conversion. The regulator provides a regulated single 15V DC output with a wide input voltage range up to 72V DC, making it suitable for various power management environments.

Constructed with surface mount technology, this device features a compact 19.5mm length, 11.8mm width, and 5mm depth package with a total of 10 pins. It assures high efficiency of 84% minimizing energy losses and heat generation, thus eliminating the need for additional cooling such as heatsinks.

Operating reliably between -40°C and 100°C ambient temperatures, the STH0548S15 ensures continuous short circuit protection to safeguard the system. Its capability of output voltage trimming ±10% along with remote on/off control adds flexibility for integration into complex electronic assemblies.

Ripple and noise are minimized to 75mV pk-pk to maintain product and system stability. Line and load regulation are both controlled within ±1% to ensure precise output despite input and load variations. The device's MTBF rating of 4,800,000 hours guarantees robust performance over time.

Suitable applications include power supply conversion in industrial automation systems, telecommunications, instrumentation, and embedded systems requiring reliable voltage regulation from varying DC input sources.

The device offers high efficiency up to 84% ensuring energy saving performance. It operates reliably over a wide temperature range from -40°C to 100°C. Robust surface mount package with 10 pins allows compact PCB integration.

Features voltage trimming capability to adjust output ±10%. Includes remote on/off functionality and continuous short circuit protection. No heatsink is required due to efficient thermal design. Ripple and noise are maintained low at 75mV peak-to-peak for stable output.

Load and line regulation are tightly controlled within ±1% range. Has a high Mean Time Between Failures (MTBF) of 4,800,000 hours for durability. Designed as a single output buck type switching regulator for DC/DC applications.

XP Power’s STH05 series exemplifies advanced design and automation, delivering cost-effective solutions without compromising quality. This switching regulator supports demanding environments requiring compact and energy-efficient voltage conversion.
