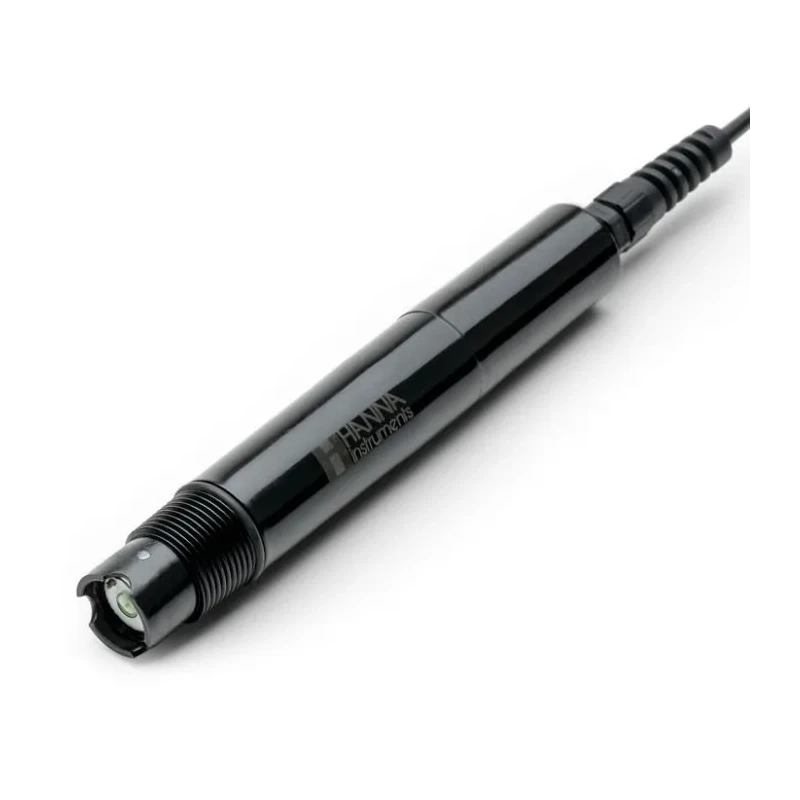

Hanna HI1000 Series Process Digital pH Probe-15m (49.2')-HT - High Temperature-Ceramic
Specifications
| Country of Origin | India |
|---|---|
| Body Material | PVDF |
| Environment | LT glass: -5 to 80 ºC, HT glass: 0 to 100 ºC, HF glass: up to 2g/L, temp 2 |
| Outer Diameter | 22.5 mm |
| Model | HI1016-3815 |
| Max. Temperature | 100 ºC |
| Cable Length | 15 m |
| Temperature Sensor | Pt100 |
| Max. Pressure | 6 bar |

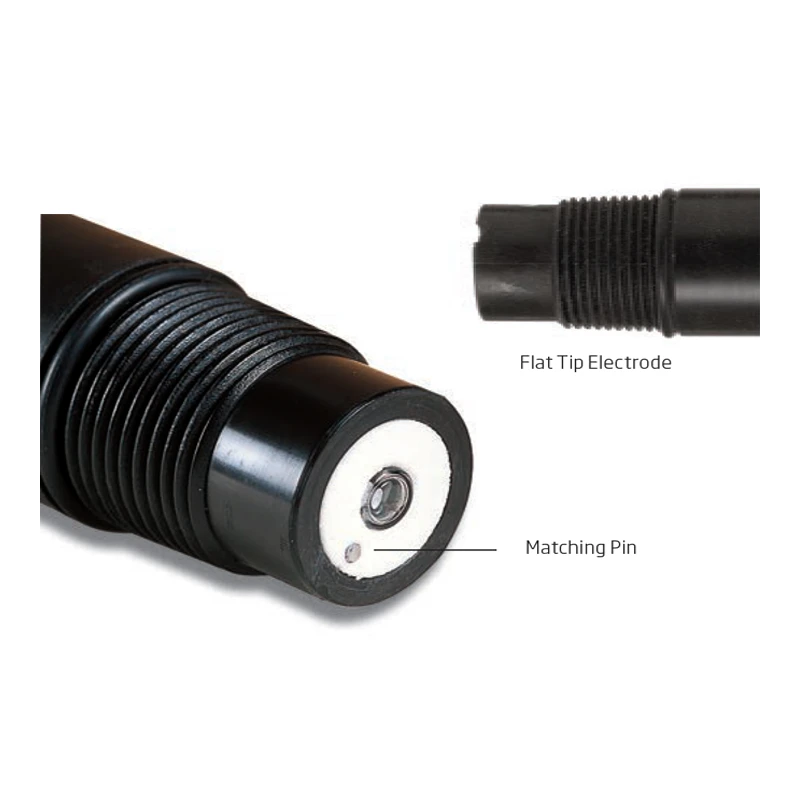

| Tip / Shape | flat |
| Matching Pin | yes |
| Glass Type | LT, HT, or HF depending on configuration |
| Overall Length | 140 mm |
| Series | HI1000 |
| Min. Temperature | -5 ºC |
| pH Measurement range | LT glass: 0 to 12; HT glass: 0 to 14; HF glass: 0 to 10 pH |
| Product Condition | New |
| MPN | HI1016-3815 |
| Electrolyte Type | Polymer |
| Reference Junction Type | Ceramic (double junction) |
Key Features
HI1000 Series HI1016-3815 Process Digital pH Probe with 15m Cable and High Temperature Ceramic Junction delivers reliable pH monitoring for industrial and laboratory applications.
- Process digital pH probe suitable for high temperature environments.
- Features a robust PVDF body and a ceramic reference junction for chemical resistance.
- Equipped with a built-in PT100 temperature sensor for automatic compensation.
- Measurement ranges tailored for LT, HT, and HF glass configurations.
- Flat-tip, polymer-filled electrode for superior stability and low maintenance.
- RS485 digital output ensures immunity to electrical interference.
- Double junction reference enhances durability and accuracy in demanding conditions.
- 3/4” NPT threads provided for easy insertion, in-line, or submersion mounting.

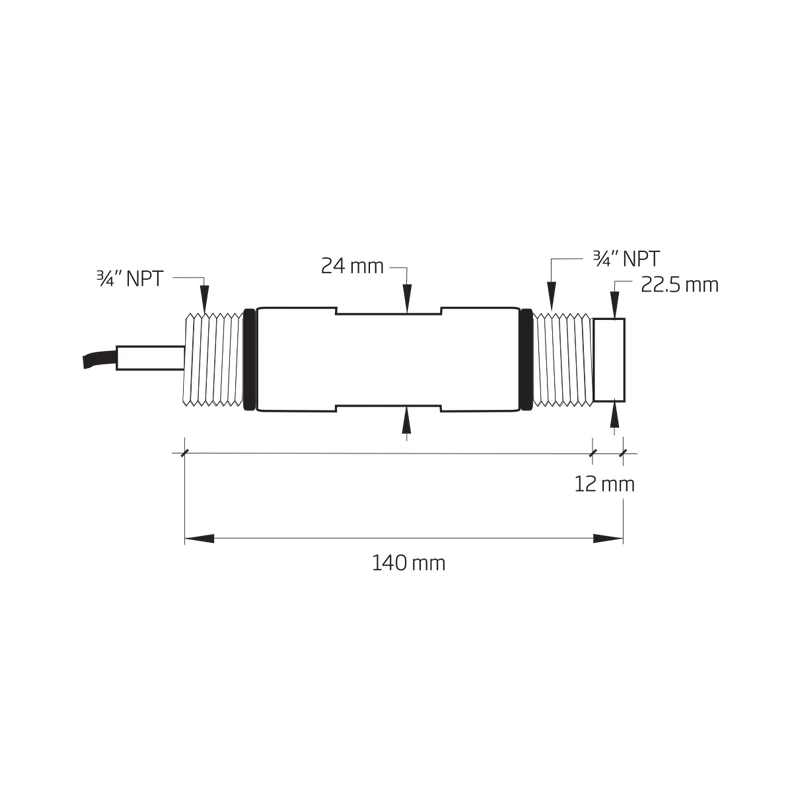

- Overall probe length of 140 mm and outer diameter 22.5 mm with 15-meter cable.
Product Description
The HI1000 Series HI1016-3815 Process Digital pH Probe is a high-performance industrial sensor designed for continuous pH measurement and control in demanding process environments. Engineered for compatibility with the HI510 Universal Process Controller, this probe features a PVDF body and a ceramic reference junction, offering excellent chemical resistance and robust operation at high temperatures.
Equipped with a built-in PT100 temperature sensor, the probe delivers precise measurements with automatic temperature compensation. Users can choose from three glass types—low temperature (LT), high temperature (HT), and hydrofluoric acid (HF)—with corresponding pH measurement ranges: 0 to 12 pH (LT), 0 to 14 pH (HT), and 0 to 10 pH (HF). The flat-tip, polymer-filled electrode and double junction reference system ensure stable readings and extended service life even in harsh chemical processes.
- Process-grade digital pH probe suitable for continuous industrial use and laboratory calibration setups.
- High temperature glass and ceramic reference junction for operation up to 100 ºC and 6 bar pressure.
- Integrated PT100 temperature sensor enables accurate compensation over wide thermal conditions.
- RS485 digital output provides immune, interference-free data transmission to automation and monitoring systems.
- Features a chemically resistant PVDF body, 3/4” NPT threaded mounting for versatile installation options.
- Long 15-meter cable accommodates installation in tanks, pipes, or reactors.
- Double junction reference design prevents contamination for reliable measurements.
- Compatible with HI510 and other advanced process measurement controllers using RS485 protocol.
- Typical applications include water/wastewater treatment plants, chemical processing, laboratory pilot plants, and manufacturing environments.
The package includes 1 HI1016-3815 pH probe (HI1000 Series) with 15m attached cable. Trust this advanced sensor for demanding pH control tasks across industrial and laboratory settings.
Explore more process analytical instruments and high-performance probes in the EnvMart Laboratory Instruments category.
