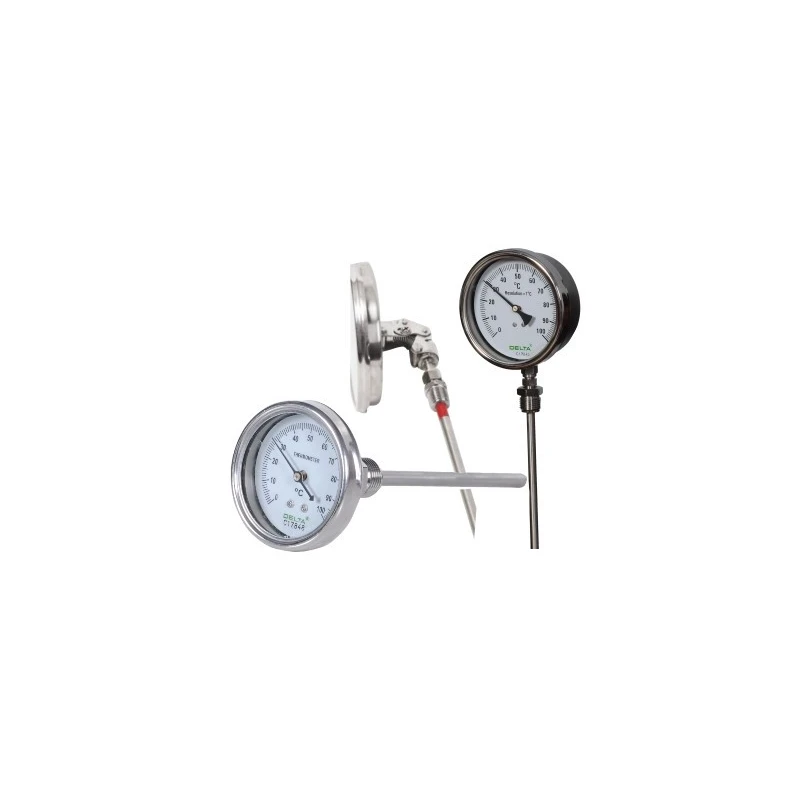

Temperature Gauge Bimetallic Type
Specifications
| Accuracy | Class 1 as per EN 13190 |
|---|---|
| Process Pressure | 15 kg/cm 2 (Without Thermowell) |
| STEM | AISI 316 SS |
| Ambient Temperature (ºC) | - 25 ºC to 65 ºC |
| Case | AISI 304 SS |
| Ring | AISI 304 SS| Bayonet Lock |
| Standard Version | 63mm| 100mm| 150mm |
| Stem Length | Refer Scale Table |
| Stem Diameter | 6mm / 8mm / 10mm / 12mm |
| Over Range Limit | 115% of the Scale Value or 650 o C| whichever is minimum |
| Connecion | AISI 316 SS |
Key Features
- Stainless steel case & stem
- Bottom / Back/ Every Angle Entry
Product Description
Temperature Gauge Bimetallic Type The Bimetal thermometer employs a bimetal strip in the form of helix (it works on the principle of thermal expansion - two metals having different coefficients of expansions are joined to form a bimetal. The resultant expansion of bimetal is proportional to temperature). Bimetal dial thermometers are simple in construction, yet rugged. They are used for the measurement of temperature in most of the industrial applications. They are offered in the range of (-) 50C to400oC. With rigid stem having bottom or back entry. It can also be offered in every angle rotatable construction.
- Standard Followed: EN 13190
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The temperature gauge has a measurement range of -50°C to 400°C.
The case is made of AISI 304 stainless steel, while the stem is constructed from AISI 316 stainless steel.
It has an accuracy class of Class 1 as per EN 13190.
The maximum process pressure is 15 kg/cm² without a thermowell.
The ambient temperature range is from -25°C to 65°C.
It features a connection made of AISI 316 stainless steel.
The over range limit is 115% of the scale value or 650°C, whichever is minimum.
The stem diameter options are 6mm, 8mm, 10mm, and 12mm.
Yes, it can be offered in every angle rotatable construction, allowing for flexible installation.
It operates on the principle of thermal expansion, utilizing a bimetal strip that expands proportionally to temperature changes.
Yes, it is designed for use in most industrial applications due to its simple construction and rugged design.
