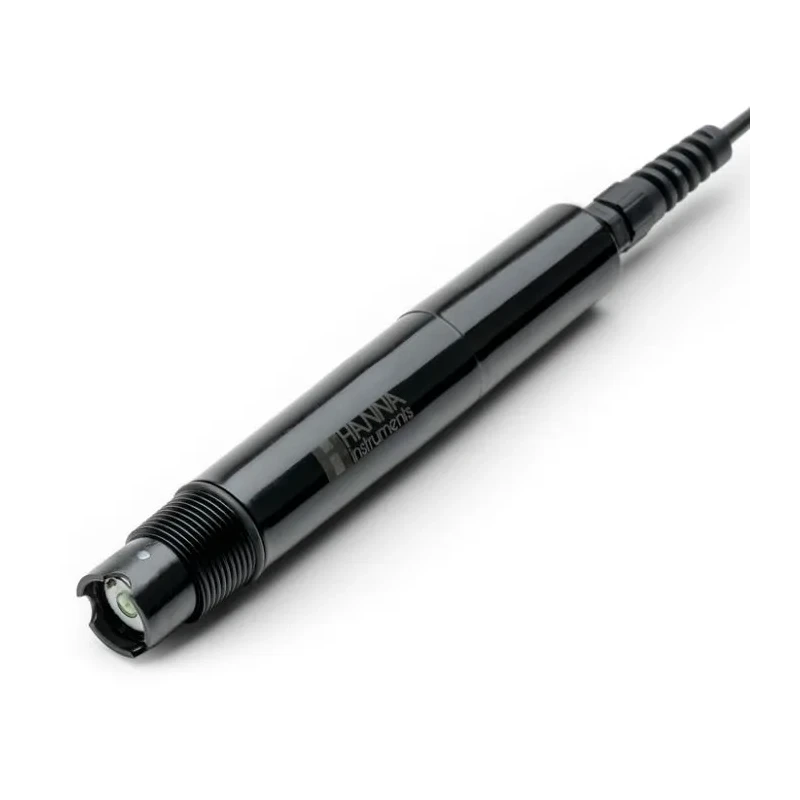

Hanna HI1000 Series Process Digital pH Probe-15m (49.2')-HF - Hydrofluoric Acid Resistant-Ceramic
Specifications
| Country of Origin | India |
|---|---|
| Body Material | PVDF |
| Outer Diameter | 22.5 mm |
| Model | HI1000 Series |
| Cable Length | 15 m |
| Temperature Sensor | Pt100 |
| Max. Pressure | 6 bar |
| Reference Cell Type | Double Junction |
| Type of Electrolyte | polymer |
| Tip / Shape | flat |
| Matching Pin | yes |
| Application | Process pH monitoring, hydrofluoric acid and aggressive chemical environments |
| Junction Type | Ceramic (HF resistant) |
| Product Condition | New |
| MPN | HI1000 Series |

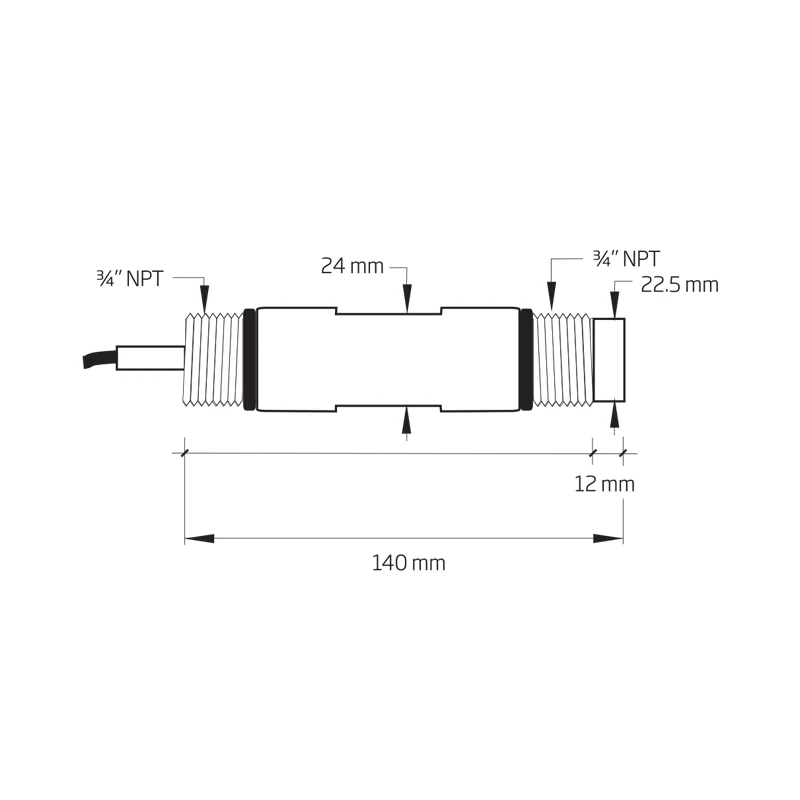

| Body Length / Overall Length | 140 mm |
| Measurement Range (LT Glass) | 0 to 12 pH |
| Measurement Range (HT Glass) | 0 to 14 pH |
| Measurement Range (HF Glass) | 0 to 10 pH |
| Environment (LT Glass) | -5 to 80 °C |
| Environment (HT Glass) | 0 to 100 °C |
| Environment (HF Glass) | less than 2g/L HF, temperature to 80 °C |
| Probe Mounting | 3/4 inch NPT threaded connection |
Key Features
HI1000 Series Process Digital pH Probe with 15m cable, hydrofluoric acid resistant ceramic junction, PVDF body, integrated PT100 temperature sensor, and RS485 digital output for industrial process monitoring applications.
- Designed for industrial pH monitoring in demanding PLC and process control environments.
- Constructed with HF-resistant glass and ceramic reference ideal for hydrofluoric acid applications.
- Features robust PVDF body with 3/4" NPT threaded fitting for easy mounting and chemical resistance.
- Integrated PT100 temperature sensor ensures precise temperature compensation during measurements.
- Provides reliable digital RS485 output, immune to electrical noise in analog systems.
- Flexible operation with multiple glass types based on configuration: LT (low temperature), HT (high temperature), HF (hydrofluoric acid).
- Double junction reference cell for enhanced chemical compatibility and measurement stability.
Product Description
The HI1000 Series Process Digital pH Probe is a highly advanced industrial sensor engineered for continuous pH monitoring in manufacturing, water treatment, chemical processing, and other critical industrial environments. Featuring a 15 meter (49.2 foot) direct wire cable, this probe includes a hydrofluoric acid (HF) resistant ceramic reference and a chemically robust PVDF body, making it suitable for aggressive chemical applications.
The probe integrates a PT100 platinum temperature sensor for precise temperature compensation and delivers stable signals via RS485 digital output, making it immune to the electrical interferences common in analog probes. The 3/4" NPT threaded front end enables straightforward insertion or submersion mounting to process lines or reactors. The HI1000 Series supports multiple glass types—LT for low temperatures (-5 to 80°C), HT for high temperatures (0 to 100°C), and HF for measurements involving hydrofluoric acid—offering measurement flexibility depending on application needs.
- 15m (49.2') direct wire connection for remote installation.

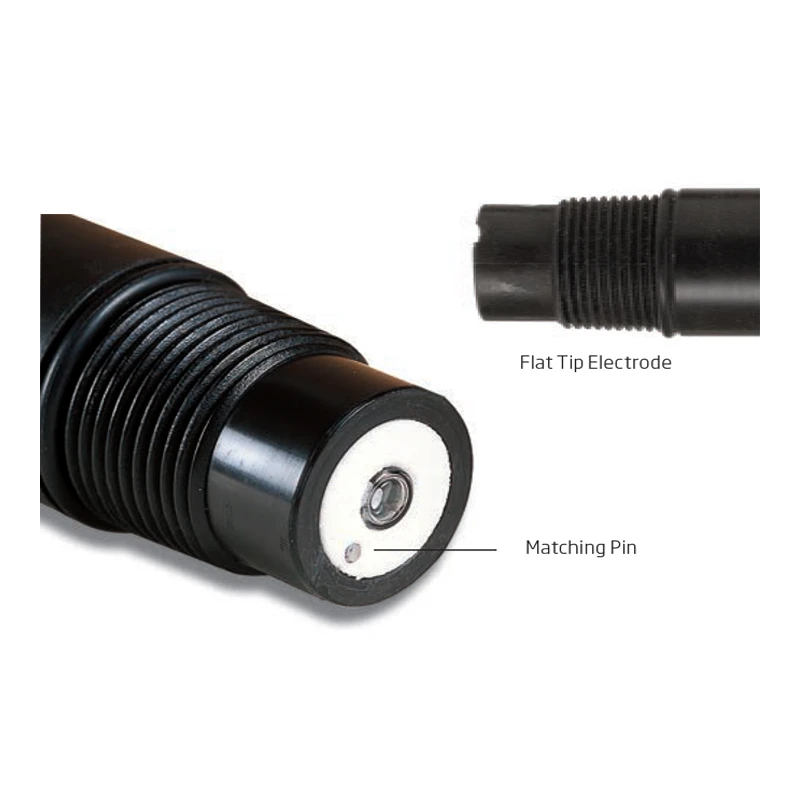

- HF-resistant flat glass tip and ceramic junction for hydrofluoric acid compatibility.
- Digital output via RS485 connection, reliable and noise-immune for industrial integration.
- Built-in PT100 temperature sensor enhances measurement accuracy by enabling compensation.
- PVDF construction resists chemicals and provides mechanical durability in harsh environments.
- Double junction, polymer electrolyte for minimized maintenance and extended service life.
- Suitable for inline or submersion installation with 3/4" NPT fitting.
- Compatible with HI510 Universal Process Controller and industrial PLCs.
- Measurement range: LT glass (0–12 pH), HT glass (0–14 pH), HF glass (0–10 pH).
Common industrial applications: pharmaceuticals, wastewater, chemical manufacturing, water treatment, laboratory process control, and more. For more industrial process sensors or pH measurement solutions, browse related categories on EnvMart.
