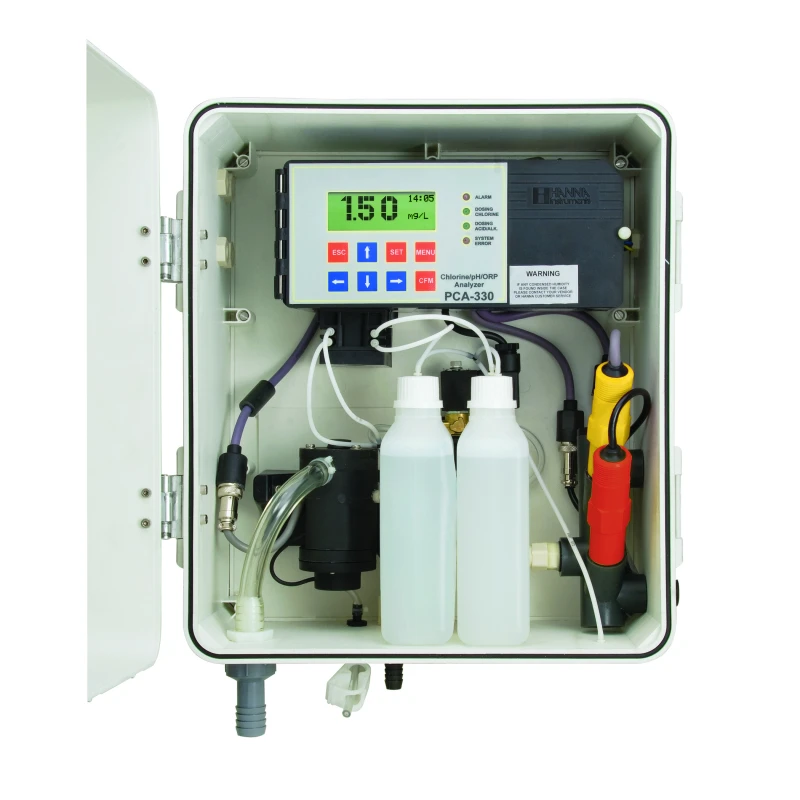

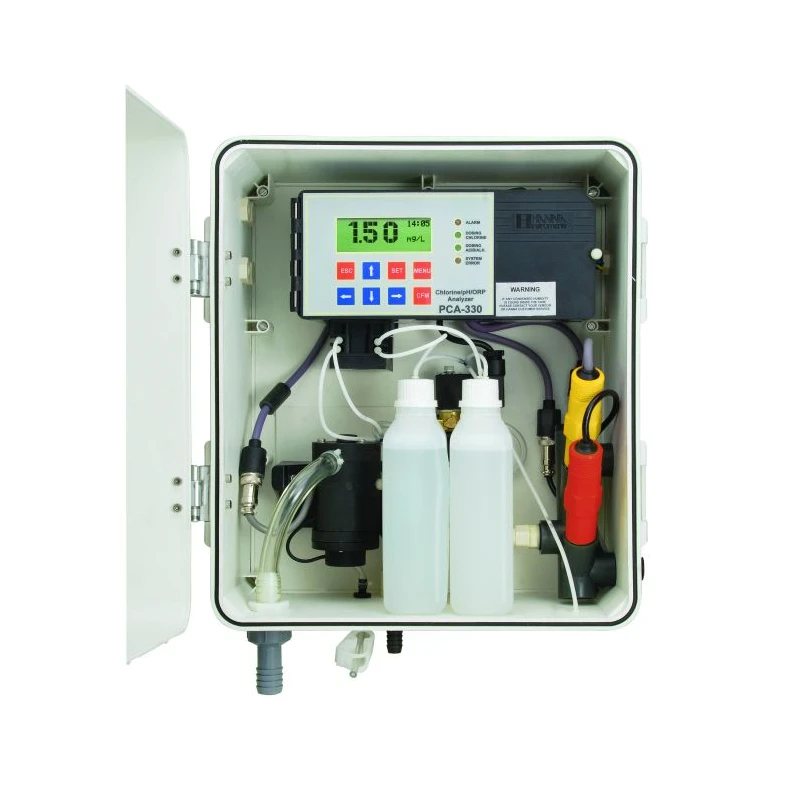

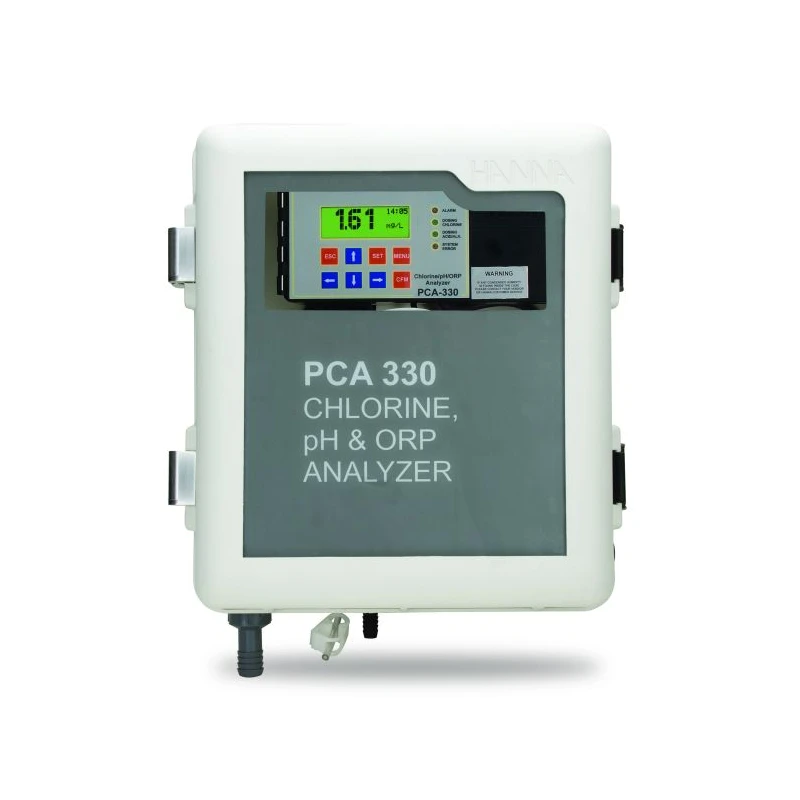

Hanna Chlorine, pH, ORP, and Temperature Analyzers - PCA300 Series-PCA330 Chlorine, pH, ORP & Temperature
Specifications
| Country of Origin | India |
|---|---|
| Temperature Accuracy | ±0.5 °C |
| Power Supply | 115 VAC ±10% or 230 VAC ±10%, 50/60 Hz, 20 VA |
| Dimensions | 318 x 267 x 159 mm |
| Temperature Resolution | 0.1 °C |
| Temperature range | 5.0 – 75.0 °C |
| Sample flow rate | 100 – 300 mL/min |
| pH Range | 0.00 – 14.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.05 pH |
| ORP Range | 0 – 2000 mV |
| ORP Resolution | 1 mV |
| ORP Accuracy | ±1 mV |
| Logging Memory | 3500 records |
| Model | PCA330 |
| Free Chlorine Range | 0.00 – 5.00 mg/L (ppm) |
| Free Chlorine Resolution | 0.01 mg/L (ppm) |
| Free Chlorine Accuracy | ±8% or ±0.05 mg/L (whichever is greater) |
| Alarm Relay Set Point | SPDT contact with 5A, 230V resistive load |
| Enclosure | NEMA-4X, molded fiberglass polyester with transparent Lexan window |
| Weight | 5 kg |
| Baud rate | 1200 - 2400 - 4800 - 9600 bps |
| SAMPLE TEMPERATURE | 5 – 40 °C |
| Sample Pressure | 0.07 – 4 bar |
| Product Condition | New |
| MPN | PCA330 |
| Total Chlorine Range | 0.00 – 5.00 mg/L (ppm) |
| Total Chlorine Accuracy | ±8% or ±0.05 mg/L (whichever is greater) |
| Total Chlorine Resolution | 0.01 mg/L (ppm) |
| Monitored Parameters | Chlorine, pH, ORP, Temperature |
| Analog Output Signals | 0-10 mV, 0-100 mV, 0-1 V, 4-20 mA, 0-20 mA |
Key Features
PCA330 Chlorine, pH, ORP & Temperature Analyzer offers real-time monitoring of chlorine, pH, ORP, and temperature in process environments.
- Continuously monitors chlorine, pH, ORP, and temperature in water samples.
- Suitable for drinking water, wastewater treatment, pools, and industrial water systems.
- Features an alarm relay set point with SPDT contact for safety automation.
- Supports analog output with multiple selectable output signals for process integration.
- Features a clear character LCD (4 lines x 20 characters) for easy readouts and navigation.
- Enclosure built to NEMA-4X standard with a molded fiberglass polyester body.
- Enables process calibration for both chlorine and pH for reliable results.
- Provides RS485 galvanically separated communication for networking/control.
- Logs up to 3500 readings for comprehensive data tracking and review.
- Operates on 115 VAC ±10% or 230 VAC ±10% with 50/60 Hz, ensuring broad compatibility.
Product Description
The PCA330 Chlorine, pH, ORP & Temperature Analyzer is a state-of-the-art microprocessor-based system designed for continuous monitoring of water quality parameters. This process analyzer is capable of accurately detecting chlorine content, pH, ORP, and temperature in real time, ensuring optimum water disinfection, safety, and compliance with regulatory standards for various applications including potable water, wastewater treatment, swimming pools, and industrial process water.
With selectable analog output signals (0-10 mV, 0-100 mV, 0-1 V, 4-20 mA, 0-20 mA) as well as advanced alarm and dosing relay controls, the PCA330 analyzer easily integrates into modern process automation environments. The large, multilingual character LCD display (4 x 20 characters) and user-friendly interface make setup and routine maintenance straightforward. The NEMA-4X enclosure and molded fiberglass construction ensure robust performance in demanding industrial and laboratory settings.
- Accurately monitors chlorine from 0.00 to 5.00 mg/L, with high resolution and ±8% or ±0.05 mg/L accuracy.
- pH measurement range from 0.00 to 14.00 pH, offering ±0.05 pH accuracy and sophisticated calibration options.
- ORP (Oxidation-Reduction Potential) range: 0 to 2000 mV with 1 mV resolution.
- Temperature range: 5.0 to 75.0 °C (41 to 167°F), resolution 0.1 °C (±0.5 °C accuracy).
- Alarm and dosing relays for automated control of water treatment systems.
- RS485 connectivity facilitates seamless communication with SCADA systems and site networks.
- Compact footprint with dimensions of 318 x 267 x 159 mm and weight of 5 kg (excluding reagents).
- Logging memory for up to 3500 entries, enabling traceability and process documentation.
- Molded fiberglass polyester body with a transparent Lexan window for enhanced durability and easy inspection.
- Ideal for municipal, industrial, laboratory, commercial, and water treatment plant applications.
This analyzer is the preferred choice for industrial and laboratory professionals requiring reliable, accurate, and continuous multi-parameter water quality analysis. Explore more laboratory analyzers and process measurement solutions under Laboratory Instruments & Supplies on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCA330 analyzer continuously monitors chlorine, pH, ORP, and temperature in water samples, making it suitable for various applications including drinking water, wastewater treatment, and industrial water systems.
The PCA330 accurately measures chlorine from 0.00 to 5.00 mg/L with a precision of ±8% or ±0.05 mg/L, ensuring reliable results for water quality monitoring.
Yes, the PCA330 supports multiple selectable analog output signals and RS485 connectivity, allowing for easy integration into modern process automation and SCADA systems.
The PCA330 has a compact footprint with dimensions of 318 x 267 x 159 mm and weighs 5 kg, making it suitable for various installation environments.
Yes, the PCA330 features a NEMA-4X enclosure, which provides protection against water and dust, making it suitable for both indoor and outdoor applications.
The PCA330 can log up to 3500 readings, allowing for comprehensive data tracking and review, which is essential for maintaining compliance and process documentation.
The temperature measurement range of the PCA330 is from 5.0 to 75.0 °C (41 to 167°F), with a resolution of 0.1 °C and an accuracy of ±0.5 °C.
The PCA330 features a clear character LCD display with 4 lines and 20 characters, making it easy to read and navigate through the settings.
The PCA330 operates on 115 VAC ±10% or 230 VAC ±10% with a frequency of 50/60 Hz, ensuring compatibility with various power systems.
To purchase the PCA330 analyzer, you can visit our website or contact our sales team for further assistance and to discuss your specific requirements.
