Hanna Chlorine, pH, ORP, and Temperature Analyzers - PCA300 Series-PCA 310 - Chlorine
Specifications
| Country of Origin | India |
|---|---|
| Temperature Accuracy | ±0.5 °C |
| Power Supply | 115 VAC ±10% or 230 VAC ±10%, 50/60 Hz, 20 VA |
| Dimensions | 318 x 267 x 159 mm |
| Temperature Resolution | 0.1 °C |
| Temperature range | 5 to 75 °C |
| Sample flow rate | 100 to 300 mL/min |
| pH Range | 0.00 to 14.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.05 pH |
| pH Calibration | Automatic 1 or 2 points, process calibration |
| Logging Memory | 3500 log records |
| Model | PCA310 |
| Alarm Relay Set Point | SPDT 5A, 230V resistive |
| Enclosure | NEMA-4X, molded fiberglass polyester, Lexan window |
| Weight | 5 kg |
| SAMPLE TEMPERATURE | 5 to 40 °C |
| Drain Connection | 10mm (3/8 in.) barb |
| Measurement Parameters | Chlorine, pH, ORP, Temperature |
| Product Condition | New |
| MPN | PCA310 |
| Analog Output Signal | 0-10 mV, 0-100 mV, 0-1 V, 4-20 mA, 0-20 mA |
| pH Dosing Set Point | 0.10 to 2.00 pH |
| Chlorine Accuracy | ±8% or ±0.05 mg/L |
| Chlorine Resolution | 0.01 mg/L |
| Chlorine Range (Free/Total) | 0.00 to 5.00 mg/L (ppm) |
| Chlorine Calibration | One-point process calibration |
| Chlorine Dosing Set Point | Selectable 0.1 to 5 mg/L |
| Chlorine Dosing Relay | Proportional relay or 4-20 mA output |
| pH Hysteresis Band | 0.05 to 2.00 pH |
| ORP Range (PCA330) | 0 to 2000 mV |
| ORP Accuracy (PCA330) | ±1 mV |
| ORP Resolution (PCA330) | 1 mV |
| Sample Inlet/Outlet Connection | 12mm (1/2") male NPT |
| Inlet Sample Pressure | 0.07 to 4 bar |
Key Features

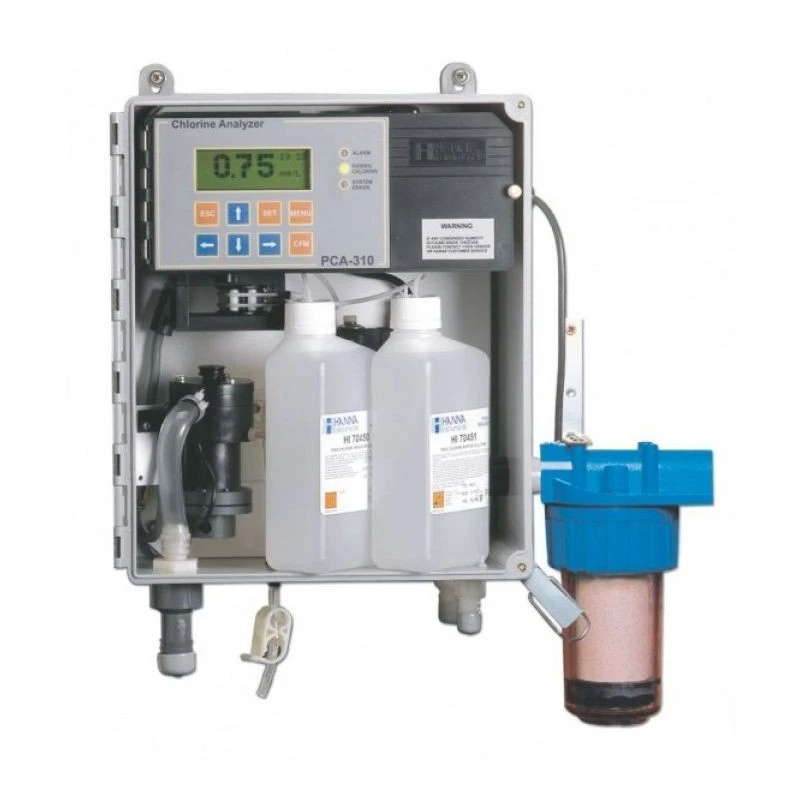

PCA310 Chlorine, pH, ORP, and Temperature Analyzer is a microprocessor-controlled process device designed for continuous monitoring of water quality parameters in industrial and municipal applications.
- Continuously monitors chlorine, pH, ORP, and temperature from a sample stream.
- Supports a range of analog output signals including 0-10 mV, 0-100 mV, 0-1 V, 4-20 mA, and 0-20 mA.
- Equipped with alarm and proportional dosing relays for automated control.
- Features process calibration for chlorine and pH measurements, with automatic and manual calibration options.
- Large LCD display (4 lines x 20 characters) for multilingual operation.
- Memory stores up to 3,500 log records for detailed tracking.
- Sampling rate, dosing set points, and hysteresis fully adjustable for process optimization.
- Supports communication via RS485 with galvanic separation.
- Standard NEMA-4X enclosure made from molded fiberglass polyester with clear Lexan window.
- Operates on 115 VAC ±10% or 230 VAC ±10%, 50/60 Hz power supply.
Product Description
The PCA310 Chlorine, pH, ORP, and Temperature Analyzer is an advanced, microprocessor-controlled process analyzer designed for industrial, water treatment, and laboratory applications. It continuously monitors a sample stream, ensuring accurate readings for chlorine content, pH, oxidation-reduction potential (ORP), and temperature. The device provides multiple output signals and advanced control options, facilitating integration into automated process systems.
Equipped with user-friendly interfaces and a multilingual character LCD, the PCA310 supports precise one-point process calibration for both chlorine and pH levels. Its alarm and proportional dosing relays ensure responsive system management, while extensive logging memory captures comprehensive history for process validation and reporting. The NEMA-4X enclosure guarantees robust performance in harsh environments, and the RS485 connectivity ensures reliable remote communication.
- Continuous monitoring of chlorine (free & total), pH, ORP, and temperature for industrial and municipal water management.
- Analog and relay outputs adaptable to various process control architectures.
- Multilingual four-line character LCD display for easy operation and status notifications.
- Memory for 3,500 event and measurement log records.
- Process and automatic calibration capabilities for chlorine and pH.
- Sampling rates and set points are fully adjustable.
- NEMA-4X weather-resistant enclosure with transparent Lexan window.
- Proportional dosing relay for chlorine dosing, with selectable set points and dosing intervals.
- SPDT alarm relay contact with 5A, 230V capacity for fail-safe operation.
- Suitable for drinking water plants, pool and spa facilities, wastewater treatment, and industrial process control environments.
Ideal for use in water treatment plants, boiler and cooling water monitoring, industrial processing, pool and spa sanitation, and advanced laboratory installations requiring high reliability and regulatory compliance. Browse the full EnvMart catalog for more laboratory analyzers and process control equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCA310 continuously monitors chlorine (both free and total), pH, oxidation-reduction potential (ORP), and temperature from a sample stream.
The PCA310 operates on a power supply of 115 VAC ±10% or 230 VAC ±10%, at 50/60 Hz.
The PCA310 features process calibration for chlorine and pH measurements, with both automatic and manual calibration options to ensure accurate readings.
The PCA310 is housed in a NEMA-4X enclosure made from molded fiberglass polyester, ensuring protection against harsh environmental conditions.
Yes, the PCA310 supports multiple analog output signals and features alarm and proportional dosing relays for seamless integration into automated process systems.
The PCA310 can store up to 3,500 log records, allowing for detailed tracking and historical data analysis.
Yes, the PCA310 is suitable for various applications including drinking water plants, pool and spa facilities, and wastewater treatment.
The PCA310 supports RS485 communication with galvanic separation, ensuring reliable remote communication.
The PCA310 allows full adjustment of sampling rates, dosing set points, and hysteresis for process optimization.
The PCA310 features a large multilingual LCD display with 4 lines and 20 characters, making it user-friendly for operation and status notifications.
