Hanna Universal Process Controller - HI510
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | 15 VA |
| Display | Graphic LCD, 128 x 64 pixel B/W with backlight |
| Power Supply | 100–240 Vac ±10%, 50/60 Hz, 15 VA, fuse protected |
| Dimensions | Width 144 mm x Height 144 mm x Depth 151.3 mm |
| Environment | -20 to 50 ºC, max 100% RH non-condensing |
| Logging Type | Interval and event logging, up to 100 files, 8600 records/file |
| GLP | Yes |
| Calibration Timeout Reminder | Yes |
| Model | HI510 |
| Alarm Relay Set Point | Up to 5 relays, independently configurable |
| Enclosure | Single case 1/2 DIN, NEMA4X, IP65 |
| Weight | 1.6 kg |
| Panel Cutout | 1/2 DIN (brackets ordered separately) |
| Relay Contacts | SPDT/SPST, 5A @ 250 Vac or 30 Vdc (resistive load) |
| Product Condition | New |
| MPN | HI510 |
| Analog Output Signal | 2 or 4 independent outputs, 0–22 mA |
| Dosing Control | on/off, proportional, PID |
| Analog Output Options | 0–20 mA, 4–20 mA, 22 mA alarm signal (configurable) |
| Digital Input Signal | galvanically isolated, 5–24 Vdc (configurable) |
| System Error Notification | Yes |
Key Features
HI510 Universal Process Controller for advanced automation and monitoring in industrial and laboratory environments.
- Supports a wide range of digital inputs for pH and ORP probes.
- Configurable up to 5 relay outputs for independent control and cleaning cycles.
- Provides up to 4 analog outputs, galvanically isolated, for process monitoring and automation.
- Features RS485 and USB-C connectivity for remote monitoring, control, and file retrieval.
- Large backlit dot matrix LCD display ensures intuitive setup and clear status indication.
- Programmable dosing functionality with on/off, proportional, and PID options for versatility.
- IP65 and NEMA4X-rated enclosure guarantees robust protection against dust and water ingress.
- Includes GLP compliance, system error notification, and calibration timeout reminders.
- Supports interval and event logging for traceability and process analysis.
- Suitable for panel mounting with 1/2 DIN cutout.
Product Description

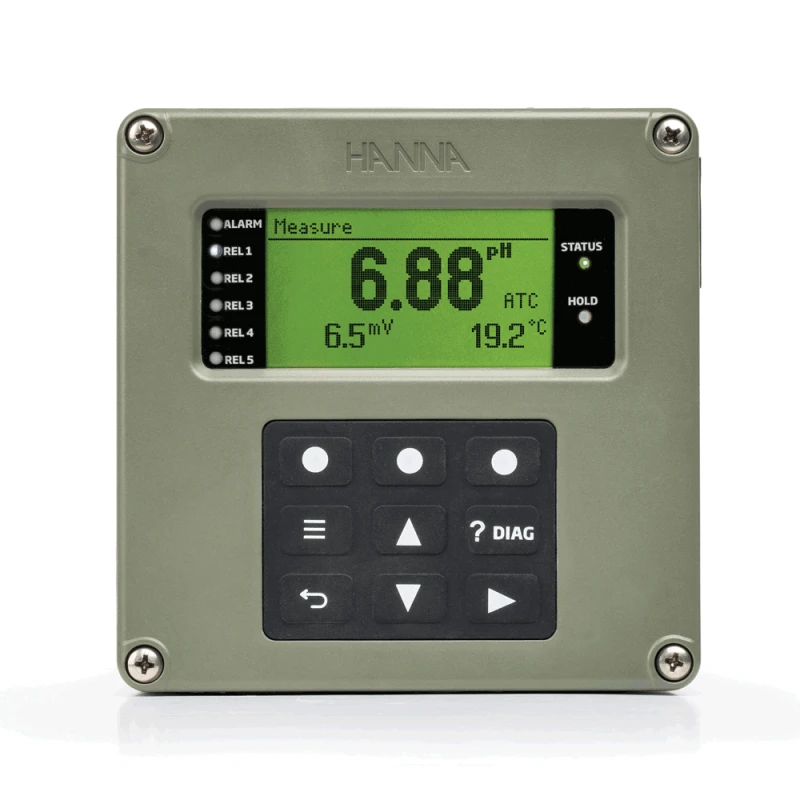

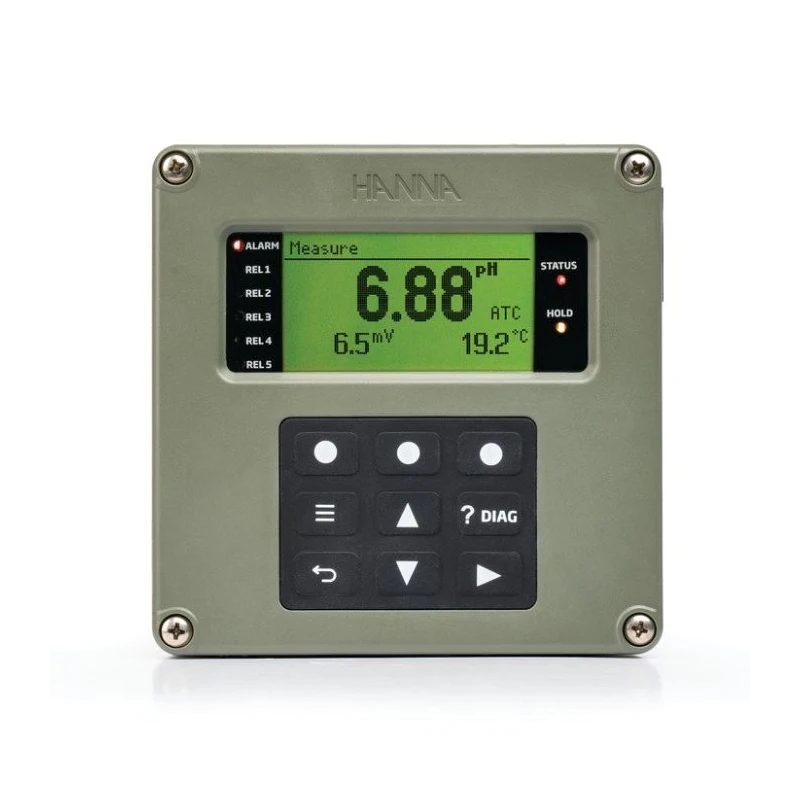

The HI510 Universal Process Controller is an advanced automation solution tailored for industrial, laboratory, and water treatment applications. Featuring a large graphic LCD display, the HI510 offers intuitive setup and real-time monitoring of key process parameters such as pH, ORP, and temperature.

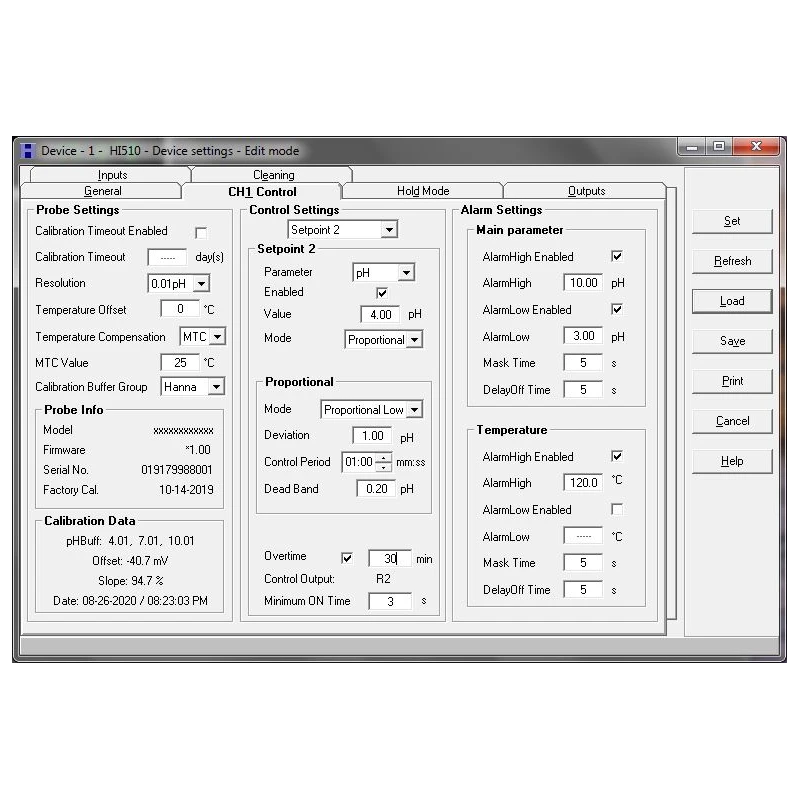

Designed to be highly configurable, the controller accommodates up to 5 relay outputs and 4 galvanically isolated analog outputs, providing robust control and cleaning sequencing for your system. Multi-color LEDs and a vulcanized rubber keypad enable straightforward operation and clear status indication. Connectivity options include RS485 and USB-C ports for PC interfacing, remote management, log retrieval, and firmware updates using HI92500 Windows® software.
- Compatible with HI10X6 series pH/temperature electrodes and HI20X4 series ORP/temperature electrodes (ordered separately).
- Industrial-grade enclosure: Single case 1/2 DIN, NEMA4X/IP65-rated for demanding environments (-20 to 50 ºC, max 100% RH non-condensing).
- Alarm relays rated up to 5A at 250 Vac or 30 Vdc; fuse protected for safety and reliability.
- Interval/event logging supports up to 100 files and 8600 records per file for comprehensive process documentation.
- Fuse protected power supply: 100–240 Vac ±10%, 50/60 Hz, 15 VA.
- Ideal for water treatment, dosing systems, chemical processes, and laboratory automation requiring precise control and monitoring.
The HI510 is a reliable solution for industrial automation, laboratory use, and water treatment facilities. Browse more advanced controllers and laboratory automation products in the EnvMart Process Controllers category.
