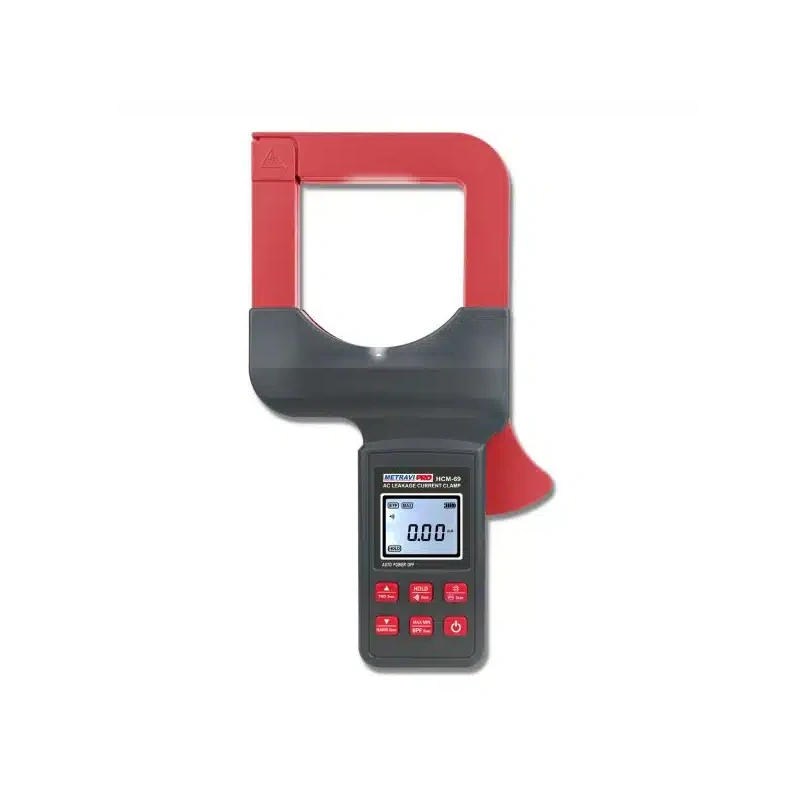

Metravi AC Leakage Current Clamp Meter with Harmonics PRO HCM-69
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PRO HCM-69 with accessories |
| Measurement Range | PRO HCM-69 0.00mA–2000A |
| Brand | Metravi |
| Power Supply | Lithium battery DC 3.7V/1000mAh |
| Working Environment | -10–50°C Less than 80%RH |
| Model | PRO HCM-69 |
| Sampling rate | 2 times/second |
| Safety Standard | IEC1010-1/IEC1010-2-032 Pollution 2 CAT III (600V) |
| LCD Size | 43×38mm (display area 36.5×29mm) |
| Display Mode | 4-digit LCD 47×28.5mm |
| Working Current | 60mA (72mA with flashlight) |
| Meter Weight | 664g (with battery)/1160g total (including accessories) |
| Battery Power | Display with 4 grids |
| Data hold | Yes |
| Meter Size | 253×145×40mm |
| Storage Environment | -20–60°C Less than 70%RH |
| LCD Backlight | Yes |
| Data Store | 2000 groups (via App) |
| Insulation Strength | AC3700V rms (between iron core and shell) |
| Filter Function | Filter on 40–70Hz/Filter off 40Hz–1kHz |
| Flashlight | Yes |
| Line Voltage | Less than AC 600V circuit line |
| Harmonic | 21 orders (above 10mA) |
| Ct Size | 80×80mm |
| Distortion Rate | Yes (above 10mA) |
| Max/Min Value | Yes |
| Average Value | Yes |
Key Features
- AC Current Range: 0.00mA ~ 2000A
- Accuracy: ±1.5%rdg±5dgt
- Sampling Rate: 2 times / second
- Clamp Jaw Size: Φ40mm
- Display: 4 digits, 43mm × 38mm, Backlit LCD
- Built-in Flashlight
- Filter: Filter on : 40Hz ~ 70Hz; Filter off: 40Hz ~ 1kHz
- Harmonics: 21 orders (above 10mA)
- Distortion Rate: Yes (above 10mA)
- Values: Max, Min, Avg
- Data Hold
- Data Storage: 2000 groups (through Mobile App)
- Interface: Bluetooth
- Automatic Shutdown
- Insulation: AC3700V/rms (Between iron core and shell)
- Safety: IEC1010-1, IEC1010-2-032, Pollution 2, CAT III (600V)
- Power Supply: 1000 mAh Rechargeable Battery
Product Description
The Metravi HCM-69 Digital Clamp Meter is a high-performance current measuring instrument designed for accurate and safe measurement of high AC currents in industrial and electrical applications. With an impressive current measurement range from 0.00mA to 2000A, this clamp meter is ideal for power distribution systems, maintenance work, and heavy-duty electrical testing. It features a large, clear LCD display and a wide 40mm jaw opening for easy measurement of thick conductors. Equipped with Bluetooth connectivity, it allows convenient data transfer and storage of up to 2000 groups via a mobile app for advanced analysis. The built-in flashlight ensures visibility in low-light environments, while features like data hold, max/min/average readings, and harmonic measurement up to 21 orders enhance usability. Designed for circuits below AC 600V, the Metravi HCM-69 offers reliable performance, portability, and precision for professionals in electrical testing and diagnostics. Available on EnvMart, these Clamp Meters are engineered for safe and accurate current measurements without breaking the circuit—perfect for electricians and field technicians. Metravi Clamp Meters are trusted for their robust build, precision, and ease of use, making them a top choice for both industrial and residential diagnostics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a measurement range from 0.00mA to 2000A, making it suitable for various electrical applications.
The Metravi HCM-69 complies with safety standards IEC1010-1 and IEC1010-2-032, and is rated for Pollution 2 and CAT III (600V) applications.
It can store up to 2000 groups of data, which can be transferred and analyzed through a mobile app via Bluetooth connectivity.
The sampling rate of this unit is 2 times per second, allowing for quick and accurate readings.
The clamp jaw size is Φ40mm, which accommodates thick conductors for measurement.
It operates effectively in environments ranging from -10°C to 50°C with less than 80% relative humidity.
This model is powered by a lithium battery with a capacity of 1000mAh, providing reliable operation.
Yes, it includes a built-in flashlight for visibility in low-light conditions, enhancing usability during measurements.
The display size is 43mm x 38mm, featuring a 4-digit LCD with backlight for easy reading.
It can measure harmonics up to 21 orders for currents above 10mA, providing detailed analysis of electrical systems.
The meter weighs 664g with the battery and 1160g total when including accessories, making it portable for field use.
It features a filter function with settings for 40Hz to 70Hz when on, and 40Hz to 1kHz when off, allowing for tailored measurements.
