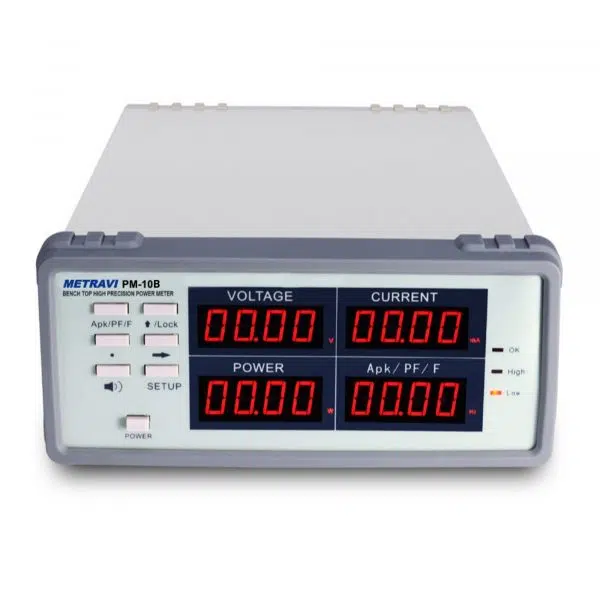

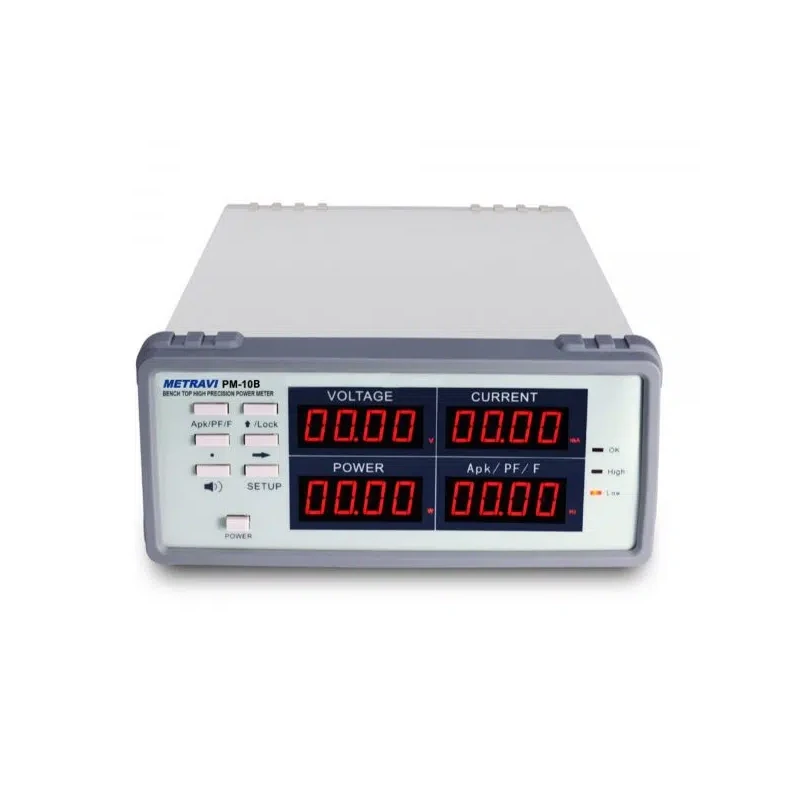

Metravi High-precision Bench-top Power Meter PM-10B
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PM-10B High-precision Bench-top Power Meter |
| Brand | Metravi |
| Model | PM-10B |
| External Dimensions | 220×100×365mm (10B model 220×100×300mm) |
| Current measurement range | 0.001–10A (auto range) |
| Voltage Measurement Range | 1.00–300.0V (auto range) |
| Instrument Weight | Approx 2.5kg |
| Power Measurement Range | 0.01–3000W |
| Frequency Measurement Range | 16–650Hz |
| Peak Current Measurement Range | 0.001–12A (auto range) |
| Power Factor Measurement Range | 0.000–1.000 |
Key Features
- Digital display and visual readings.
- The four windows display the true-value Voltage, true-value Current, Peak Current, Power, Power Factor and Frequency simultaneously, enabling fast testing.
- Automatic switching for Voltage and Current ranges improves the measurement accuracy.
- Measurement accuracy is not influenced by the wave shape.
- High reliability and long service time.
- Features upper and lower limit settings for all parameters, and alarm function. Batch inspection is enabled to improve efficiency.
- Voltage Measurement Range: 1.00V – 300.0V (automatic range)
- Current Measurement Range: 0.001A – 10A (automatic range)
- Peak Current Measurement Range: 0.001A – 12A (automatic range)
Product Description
The Metravi PM‑10B bench‑top power meter is designed for high‑precision measurement of voltage, current, power, power factor and frequency in manufacturing, R&D and quality‑control applications. It features a four‑window display showing real‑time true‑value voltage, current, peak current, power and PF simultaneously. Ranging from 1 V–300 V, 0.001 A–10 A, power up to 3 000 W and frequency range 16 Hz–650 Hz, with intrinsic error ±0.4% reading +0.1% range Auto‑range switching improves accuracy, and built‑in upper/lower limit alarms support batch inspection. RS‑232 communications (option) allow interface with PC. Compact size (220×100×300 mm) and approx. 2.5 kg weight make it suitable for bench‑top use. With high reliability, ease of reading and advanced functionality. Available on EnvMart, these Clamp Meters are engineered for safe and accurate current measurements without breaking the circuit—perfect for electricians and field technicians. Metravi Clamp Meters are trusted for their robust build, precision, and ease of use, making them a top choice for both industrial and residential diagnostics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage measurement range of this model is from 1.00V to 300.0V with automatic range switching.
The current measurement range is from 0.001A to 10A, also with automatic range switching.
It can measure power up to 3000W.
This model supports a frequency measurement range from 16Hz to 650Hz.
The meter features automatic range switching and is designed so that measurement accuracy is not influenced by the wave shape, with an intrinsic error of ±0.4% reading +0.1% range.
The external dimensions are 220×100×300 mm, and it weighs approximately 2.5 kg, making it suitable for bench-top use.
Yes, it features upper and lower limit settings for all parameters along with an alarm function.
It has a four-window display that shows real-time true-value voltage, current, peak current, power, and power factor simultaneously.
Yes, it has an RS-232 communications option that allows it to interface with a PC.
The power factor measurement range is from 0.000 to 1.000.
This model is designed for high-precision measurement in manufacturing, R&D, and quality-control applications.
The package includes the Metravi PM-10B High-precision Bench-top Power Meter.
