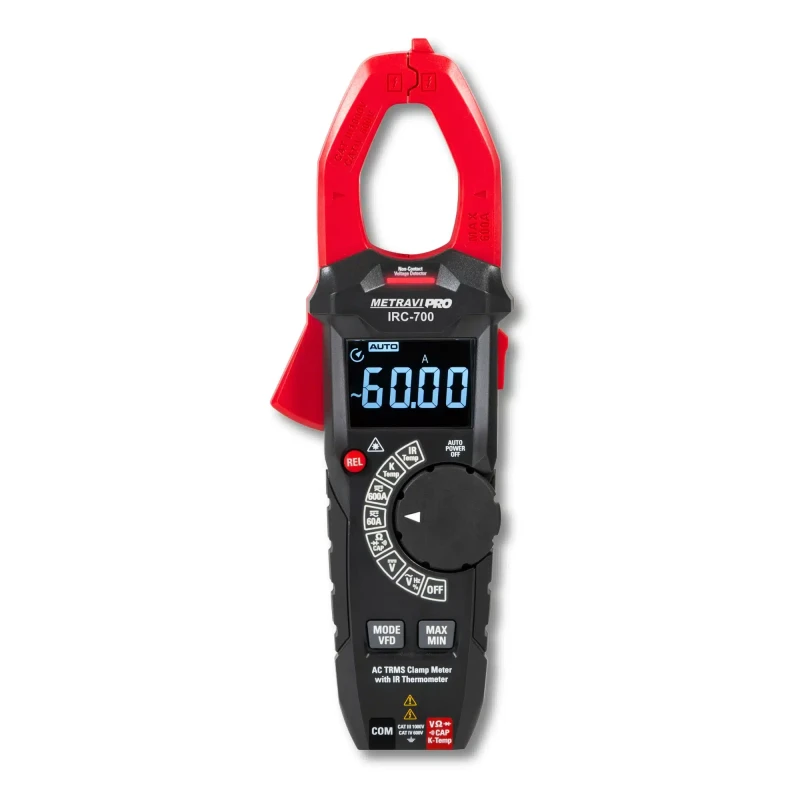

Metravi Digital TRMS AC/DC Clamp Meter with IR Thermometer PRO IRC-700 image-1

Free Delivery in India | Lowest Global Shipping Charges

Metravi Digital TRMS AC/DC Clamp Meter with IR Thermometer PRO IRC-700

Name: Metravi Digital TRMS AC/DC Clamp Meter with IR Thermometer PRO IRC-700
Brand: Metravi
SKU: ADSQO
Price: 107.05 USD
Availability: InStock



SKU ADSQO Category Clamp Meters Brand Metravi Condition New

Specifications

Country of Origin	India
Package Contents	Metravi PRO IRC-700 Digital TRMS AC\|DC Clamp Meter with IR Thermometer / Carrying Case / Silicon Test Leads / K-type Thermocouple / Thermocouple Adaptor/ User Manual / Batteries
Operating Humidity	Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F)
Display	6000 counts LCD
Diode Test	Test current 0.3mA typical/Open circuit voltage 3.2V DC typical
Brand	Metravi
Operating Temperature	5–40°C (41–104°F)
Storage Temperature	-20–60°C (-4–140°F)
Battery	Three “AAA” 1.5V batteries
Model	IRC-700
AC Current	50–60Hz (AAC)
Auto Power Off	Approx 15 minutes
Storage Humidity	Less than 80%RH
Clamp Size	Opening 1.3"(33mm) approx
Overrange Indication	"OL" displayed
Continuity Check	Threshold Less than 50Ω/Test current Less than 0.5mA
Operating Altitude	2000m (7000ft) max
Low Pass Filter	VFD Measurements
AC Voltage Bandwidth	50–1000Hz (VAC)
Measurements Rate	2 per second nominal ≥10MΩ (VDC and VAC)
Over Voltage	CAT III 1000V/CAT IV 600V

Key Features

Display: 6000 Counts, Backlit, LCD with Reverse Display
DC Voltage: 600mV / 6V / 60 / 600 / 1000V
Accuracy: ±(0.8% + 4 digits)
TRMS AC Voltage: 6V / 60 / 600 / 1000V
Accuracy: ±(1.5% + 5 digits)
DC Current: 600A
Accuracy: ±(2.0%+5d)
TRMS AC Current: 60A / 600A
Accuracy: ±(2.5% + 10 digits)
Resistance: 600Ω / 6kΩ / 60 / 600/ 6MΩ / 60MΩ
Accuracy: ±(1.5% + 6 digits)
K-type Temperature: 1000ºC/ 1832ºF
Accuracy: ±(1.0%+3d)
Infrared Temperature: -30 ~ 350 ºC/ -22 ~662ºF
Accuracy: ±1.5%±1ºC/1.8°F
Continuity: Buzzer sounds at 50Ω
Diode Test: Test Current <0.5mA MAX 3V
Low Pass Filter / VFD Measurements
MAX/MIN
Data Hold
Low Battery Indication
For dark environments:
Backlit LCD display
Backlit Rotary range pointer/selector
Backlit Ranges
Flashlight

Product Description

The Metravi IRC-700 combines a TRMS AC/DC clamp meter with an infrared thermometer, delivering dual-functionality in a single rugged device. It measures current, voltage, resistance, frequency, and temperature, both through contact and non-contact methods. The built-in IR thermometer enables surface temperature scanning without direct contact—perfect for thermal inspections in electrical panels, motors, and HVAC systems. Featuring True RMS capability, it ensures accurate measurements under harmonic distortion. It includes NCV detection, continuity test, data hold, and diode check. The large clamp head suits industrial cables, and the backlit LCD enhances readability. Designed for electrical engineers and industrial service technicians, the IRC-700 improves diagnostic accuracy and operational safety.

Available on EnvMart, these Clamp Meters are engineered for safe and accurate current measurements without breaking the circuit—perfect for electricians and field technicians. Metravi Clamp Meters are trusted for their robust build, precision, and ease of use, making them a top choice for both industrial and residential diagnostics.

Metravi Digital TRMS AC/DC Clamp Meter with IR Thermometer PRO IRC-700

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model measures DC voltage from 600mV to 1000V and TRMS AC voltage from 6V to 1000V.

It can measure DC current up to 600A and TRMS AC current up to 600A.

The infrared thermometer can measure surface temperatures from -30 to 350 ºC (-22 to 662 ºF).

The accuracy for DC voltage measurements is ±(0.8% + 4 digits).

Yes, the package contents include a carrying case along with the clamp meter, silicon test leads, K-type thermocouple, thermocouple adaptor, user manual, and batteries.

It features a 6000 counts LCD display, which is backlit for better visibility in dark environments.

The operating temperature range is from 5 to 40°C (41 to 104°F).

The maximum operating humidity is 80% at 31°C, decreasing linearly to 50% at 40°C.

The clamp size has an opening of approximately 1.3 inches (33mm).

This model has an auto power-off feature that activates after approximately 15 minutes of inactivity.

Yes, it includes a continuity check function that sounds a buzzer at a threshold of less than 50Ω.

The maximum operating altitude is 2000 meters (7000 feet).
